SWIT ELECTRONICS S-7104 2.5 - DC-stroomkabel D-Tap naar 5,5mm 2-pin pole-tap, 2,5m

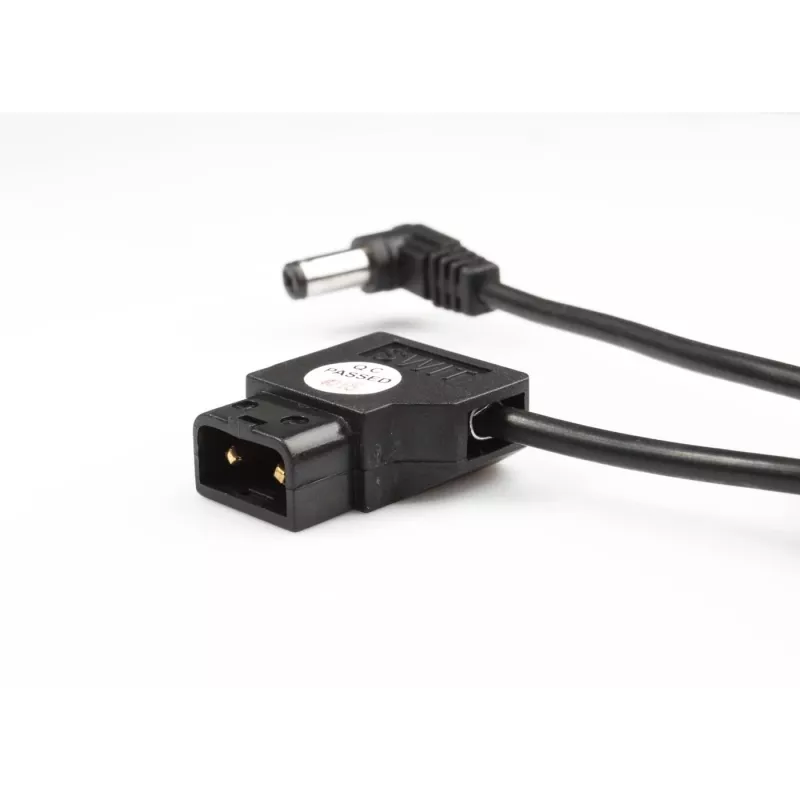

The SWIT ELECTRONICS S-7104 2.5 is a professional DC power cable designed for reliable power transmission in video, cinema, broadcast, and photography applications. It features a D-Tap male connector on one end and a 5.5mm 2-pin Pole-Tap male connector on the other, with a cable length of 2.5 meters. This cable is ideal for connecting D-Tap power sources, such as V-Mount or Gold-Mount batteries, to devices with a 5.5mm DC input.

Advantages

High-quality construction with 18 AWG cable gauge and nickel-plated connectors ensures efficient power transfer and durability. The PVC jacket provides flexibility and protection, while the pass-through voltage design maintains the input voltage range of 12V-16.8V DC. Rated for up to 5A current, it supports a wide range of professional equipment.

Suitable for

• Professional video and cinema cameras
• Broadcast equipment
• Photography lighting and accessories
• Field monitors and recorders

Key specifications

• Cable Type: DC Power Cable
• Connector A: D-Tap (Male)
• Connector B: 5.5mm 2-Pin Pole-Tap (Male)
• Cable Length: 2.5 meters
• Input Voltage Range: 12V - 16.8V DC
• Max Current Rating: 5A
• Jacket Material: PVC
• Color: Black
• Connector Plating: Nickel-plated
• Cable Gauge: 18 AWG

Recommendations

For optimal performance, ensure that the device's input voltage and polarity match the cable specifications. This cable is a direct replacement for original SWIT accessories and is compatible with most D-Tap battery systems.
