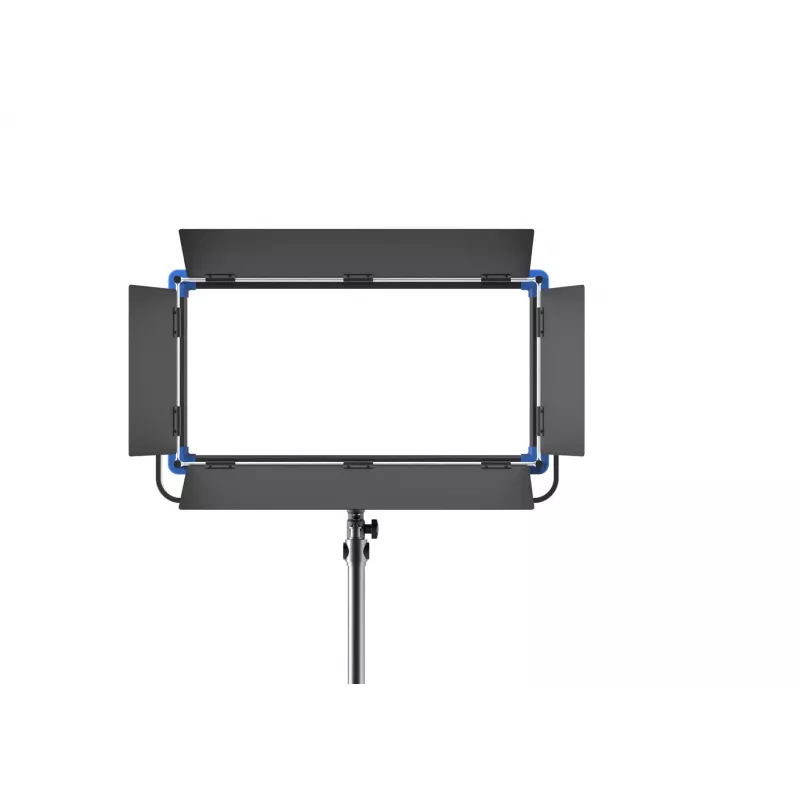

SWIT ELECTRONICS VANGO-100 ultraplat RGBW LED-paneellamp met DMX-besturing, 100W, 2200K-10000K

The SWIT ELECTRONICS VANGO-100 is an ultra-flat RGBW LED panel light delivering 100W of power with a wide color temperature range from 2200K to 10000K. Designed for professional film, video, and photography, it offers high color accuracy with CRI and TLCI ratings of ≥95. The panel features multiple control modes including CCT, HSI, RGBW, GEL, and Effects, and supports DMX512 control via 5-pin XLR connectors. Its fanless passive cooling ensures silent operation, making it ideal for studio and location work.

Advantages

Ultra-flat design for easy placement in tight spaces. High-efficiency LEDs provide bright, consistent output. Versatile control options allow for creative lighting setups. Silent operation eliminates noise interference during recording.

Suitable for

• Film and video production
• Photography studios
• Live events and stage lighting
• Broadcast and streaming

Key specifications

• Light Type: RGBW LED Panel
• Power Output: 100W
• Color Temperature Range: 2200K - 10000K
• CRI: ≥95
• TLCI: ≥95
• Luminance (1m): 2500 lux
• Dimming Range: 0-100%
• Control Modes: CCT, HSI, RGBW, GEL, Effects
• Control Interface: DMX512 (5-pin XLR In/Out), On-board controls
• Beam Angle: 120°
• Cooling: Fanless Passive Cooling
• Power Input: 11-17V DC (XLR 4-pin), V-mount Battery Plate
• Mounting: Yoke with 5/8" (16mm) Receiver
• Display: LCD Display
• Housing Material: Aluminum Alloy

Recommendations

For best results, use with a compatible V-mount battery or 11-17V DC power supply. DMX controller recommended for advanced lighting setups.
