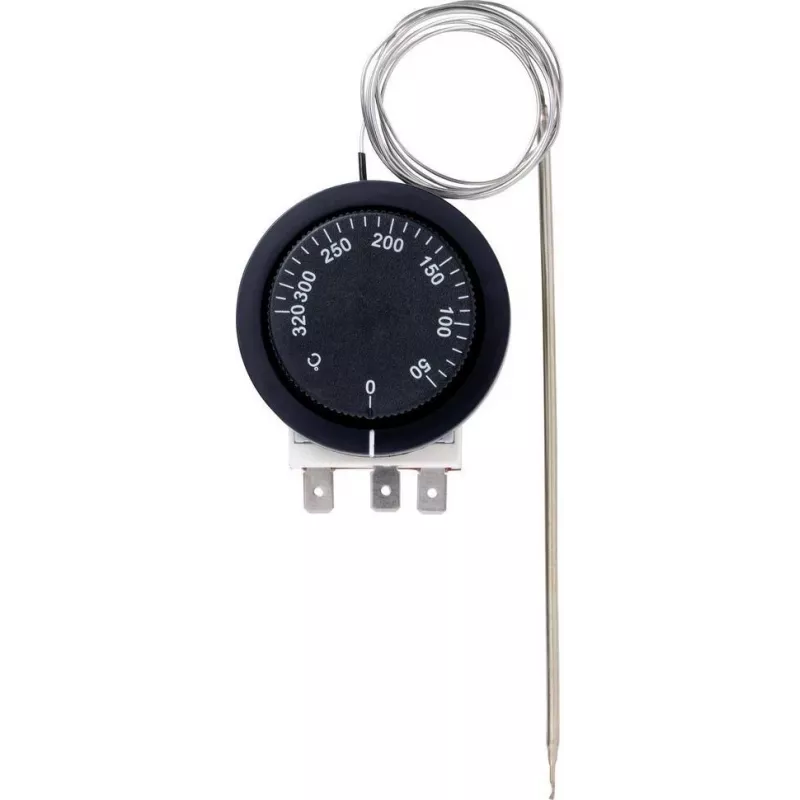

SYGONIX inbouwthermostaat 50 tot 320°C (SY-5044430)

Precise temperature control is critical in ovens, fryers, grills and heating appliances. The SYGONIX Built-in Thermostat SY-5044430 regulates temperatures from 50°C to 320°C, ensuring consistent heat for reliable cooking and heating performance.

Who is it for

This thermostat suits appliance manufacturers, repair technicians and advanced DIYers who need a robust, panel-mounted temperature controller for high-heat equipment.

Main features

• Temperature control range: 50°C to 320°C
• Switching capacity: 16 A at 250 V AC
• 1-pole SPST contact configuration
• Liquid expansion operating principle
• Panel mount with M9x1 thread
• 900 mm capillary with 3 mm diameter sensor bulb
• D-shaft with flat, 6 mm diameter
• Screw terminal connections

Specifications

• Temperature range: 50 - 320°C
• Switching capacity: 16 A
• Voltage rating: 250 V AC
• Number of poles: 1
• Contact configuration: SPST
• Capillary length: 900 mm
• Sensor bulb diameter: 3 mm
• Sensor bulb length: 180 mm
• Shaft diameter: 6 mm
• Shaft type: D-shaft with flat
• Mounting type: Panel mount (M9x1 thread)
• Connection type: Screw terminals
• Operating principle: Liquid expansion
• Differential (hysteresis): approx. 5°C
• Max. ambient temperature (housing): 125°C
• Capillary material: Copper

Tips

Ensure the capillary is routed without sharp bends and the sensor bulb is positioned in the area to be controlled. Verify electrical compatibility with the appliance's load before installation.
