Sygonix monokristallijn zonnepaneel 210 W 18,72 V (SY-6688144)

With a module efficiency of 20.8%, this 210 W monocrystalline solar panel converts sunlight into usable power at a maximum power voltage of 18.72 V. The panel is built with 36 monocrystalline cells behind tempered glass and an anodized aluminum frame, and it comes with MC4 connectors on a 90 cm cable for straightforward integration into off-grid or grid-tied systems.

Overview

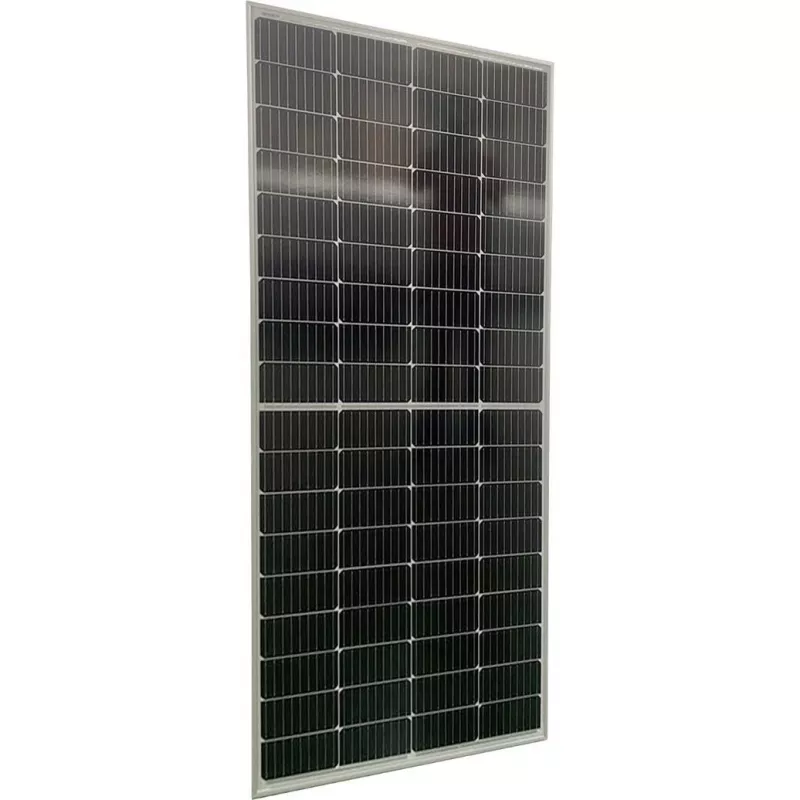

The Sygonix SY-6688144 is a rigid monocrystalline solar panel rated for 210 W peak power. It delivers a maximum power current of 11.22 A and operates within a wide temperature range from -40 °C to +85 °C. The panel is designed for fixed installations where high efficiency and durable construction are required.

What stands out

• High module efficiency of 20.8% for better energy yield per square meter.
• Monocrystalline cell technology for superior performance in low-light conditions.
• Robust anodized aluminum frame and tempered glass for long-term outdoor use.
• MC4 connectors for safe and simple wiring.

Technical details

• Rated power (Pmax): 210 W
• Maximum power voltage (Vmp): 18.72 V
• Maximum power current (Imp): 11.22 A
• Open circuit voltage (Voc): 22.3 V
• Short circuit current (Isc): 12.01 A
• Module efficiency: 20.8%
• Number of cells: 36
• Max system voltage: 1000 V DC
• Operating temperature: -40 °C to +85 °C
• Connector type: MC4
• Cable length: 90 cm
• Frame material: Anodized aluminum
• Glass type: Tempered glass
• Power tolerance: ±3%

Our verdict

This panel offers a solid balance of power output and efficiency for residential or commercial solar projects. Its monocrystalline design and sturdy build make it a reliable choice for long-term energy generation.
