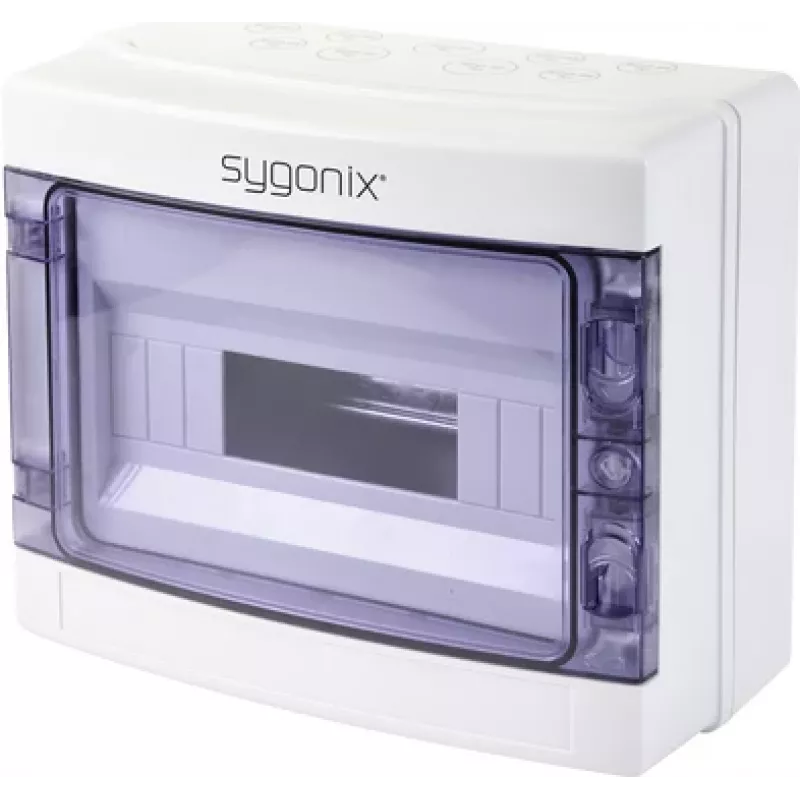

Sygonix SY-5491854 Opbouw-kleinverdeler, 12 modules, 1 rij, Wit

Surface-mounted small distribution board with 12 module slots in a single row, featuring a transparent hinged door and integrated DIN rail for straightforward installation in indoor electrical installations.

Advantages

Pre-punched knock-outs simplify cable entry, while the included N/PE terminals support tidy wiring. The white ABS housing with transparent door allows quick visual inspection of installed devices.

Suitable for

• Indoor residential and commercial sub-distribution
• Mounting on walls or other flat surfaces
• Organizing circuit breakers, RCDs, and other DIN rail devices

Key specifications

• Number of modules: 12
• Number of rows: 1
• Mounting type: Surface-mounted
• Material: Plastic (ABS)
• Colour: White (RAL 9003)
• Door: Transparent, hinged
• DIN rail: Integrated
• N/PE terminals: 2x N, 2x PE
• IP protection class: IP40
• Impact resistance: IK07
• Glow wire test: 650 °C
• Operating temperature range: -25 to +60 °C
• Rated insulation voltage: 400 V

Recommendations

Pair with standard 18 mm modular devices to build a clean and accessible distribution point in dry indoor areas.
