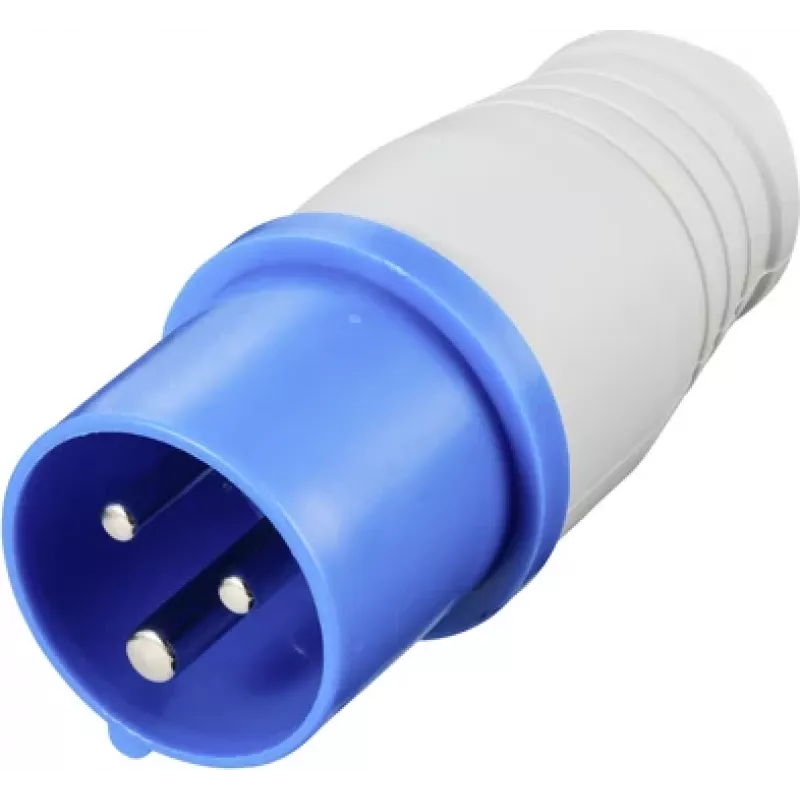

Sygonix SY-5806886 CEE caravanstekker 16 A 3-polig 250 V AC IP44 blauw

The Sygonix SY-5806886 is a robust CEE caravan plug engineered for reliable power connections in mobile and outdoor environments. Unlike standard industrial plugs, its compact blue housing and splash-proof design are tailored for caravans, motorhomes, camping, and marine applications where space is tight and weather resistance matters.

Highlights

• Rated for 16 A at 250 V AC, suitable for common campsite power supplies
• 3-pole configuration (2P+E) with screw terminals for secure wiring
• IP44 splash-proof protection for outdoor use
• Durable polyamide housing with nickel-plated brass contacts
• Accepts cables from 6 mm to 15 mm diameter

In daily use

Connecting your caravan or motorhome to shore power is straightforward: strip the cable, insert the conductors into the clearly marked screw terminals, and tighten. The straight cable entry keeps the connection compact, and the plug mates with standard CEE sockets found at campsites and marinas. The blue colour coding follows the IEC 60309 convention for 230 V single-phase supplies.

Full specifications

• Product type: CEE caravan plug
• Connector type: Male plug
• Number of poles: 3-pole
• Rated current: 16 A
• Rated voltage: 250 V AC
• Protection class: IP44 (splash-proof)
• Frequency: 50/60 Hz
• Colour: Blue
• Housing material: Polyamide (PA)
• Contact material: Brass (nickel-plated)
• Connection type: Screw terminals
• Cable entry: Straight
• Max. cable diameter: 15 mm
• Min. cable diameter: 6 mm
• Standard: IEC 60309 (CEE 17)
• Application: Caravans, motorhomes, camping, boats
• Operating temperature range: -25 to +40 °C
• Mounting type: Cable mount
• Orientation: Straight

Final note

Built to the IEC 60309 standard, this plug ensures compatibility with standard CEE sockets and delivers dependable power for your mobile adventures.
