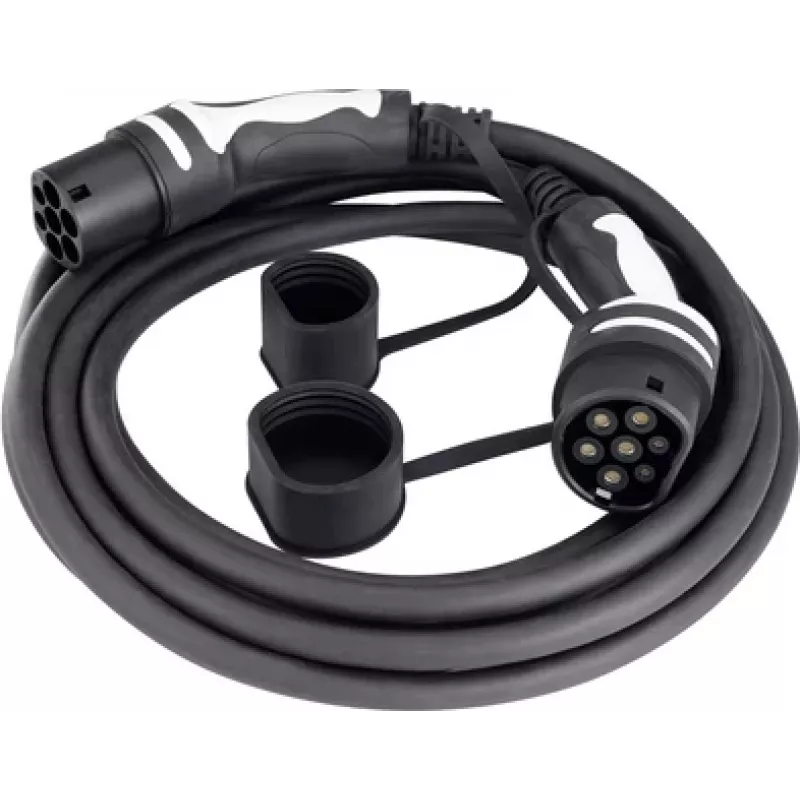

Sygonix SY-5836550 Type 2 EV-laadkabel 5m 22kW 32A 3-fasen IP65 zwart

Charging an electric vehicle at public AC stations or wallboxes requires a cable that can handle three-phase power safely and reliably. This Sygonix charging cable connects your EV to any Type 2 charging station, delivering up to 22 kW for faster charging times.

Who is it for

EV owners who need a durable, weather-resistant cable for home or public charging. It suits vehicles with a Type 2 inlet and stations with a Type 2 socket.

Main features

• Type 2 connectors on both ends (IEC 62196-2)
• Supports 3-phase charging up to 22 kW and 32 A
• 5 m cable length for flexible parking positions
• IP65 rated against dust and water jets
• Black TPU jacket resists UV and flame

Specifications

• Connector 1: Type 2 (vehicle side)
• Connector 2: Type 2 (station side)
• Cable length: 5 m
• Maximum charging power: 22 kW
• Maximum current: 32 A
• Number of phases: 3
• Operating voltage: 400 V AC
• IP rating: IP65
• Cable colour: Black
• Cable material: TPU
• Operating temperature: -30 °C to +50 °C
• Charging mode: Mode 3

Tips

Always fully insert the connectors and lock them before charging. Store the cable in a dry place when not in use to prolong its life.
