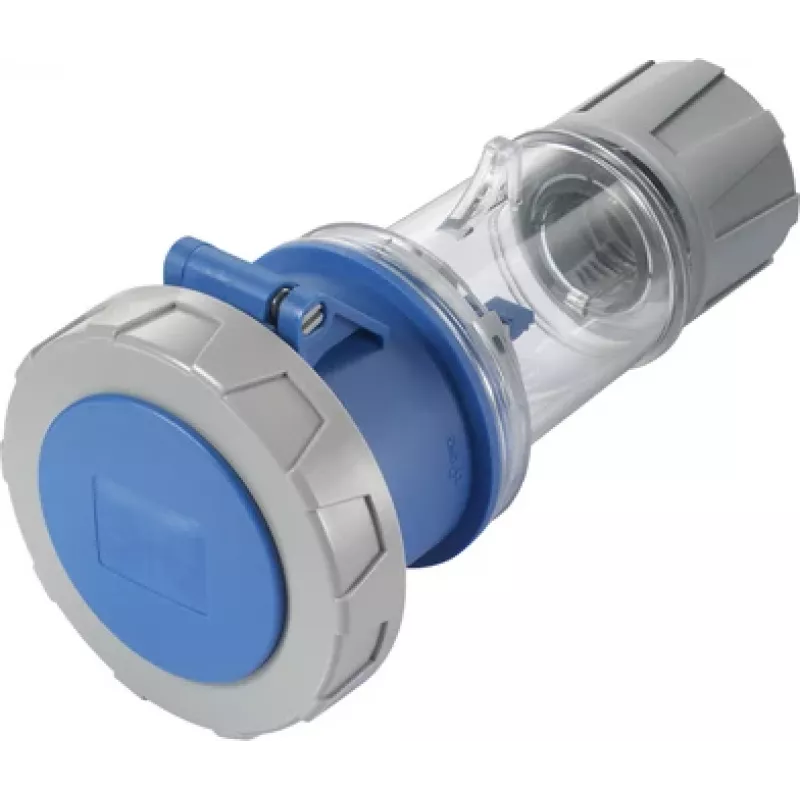

Sygonix SY-5873154 CEE-CARA koppeling 32A 3-polig 230V/AC IP67 schroefloos blauw

On a caravan site or a busy construction yard, a dependable power connection keeps the work going and the lights on. The Sygonix SY-5873154 CEE-CARA coupler is built for exactly that: a 32 A, 3-pole (2P+E) socket rated for 230 V/AC. Its blue housing follows the IEC 60309 colour code, and the IP67 rating means it shrugs off dust and temporary immersion, so it works outdoors in rough conditions.

Key specifications

• Connector type: CEE-CARA coupler (socket)
• Current rating: 32 A
• Voltage rating: 230 V/AC
• Number of poles: 3-pole (2P+E)
• Ingress protection: IP67
• Connection method: screwless (spring clamp technology)
• Frequency: 50/60 Hz
• Housing material: polyamide
• Wire cross-section: 2.5 – 6 mm²
• Clock position: 6h
• Temperature range: -25 °C to +40 °C
• Mounting type: in-line / free-hanging

Why choose it

The screwless spring clamp terminals make wiring fast and secure without the need for periodic re-tightening. The polyamide housing resists impact and UV, and the 6h clock position prevents mismating with connectors of a different voltage or frequency.

Ideal use cases

• Caravan and camping power hook-ups
• Industrial equipment and temporary distribution boards
• Construction site power tools and lighting
• Outdoor events and marquees

Good to know

The coupler is designed for in-line or free-hanging use and accepts conductors from 2.5 mm² to 6 mm², covering most common cable sizes for 32 A circuits.
