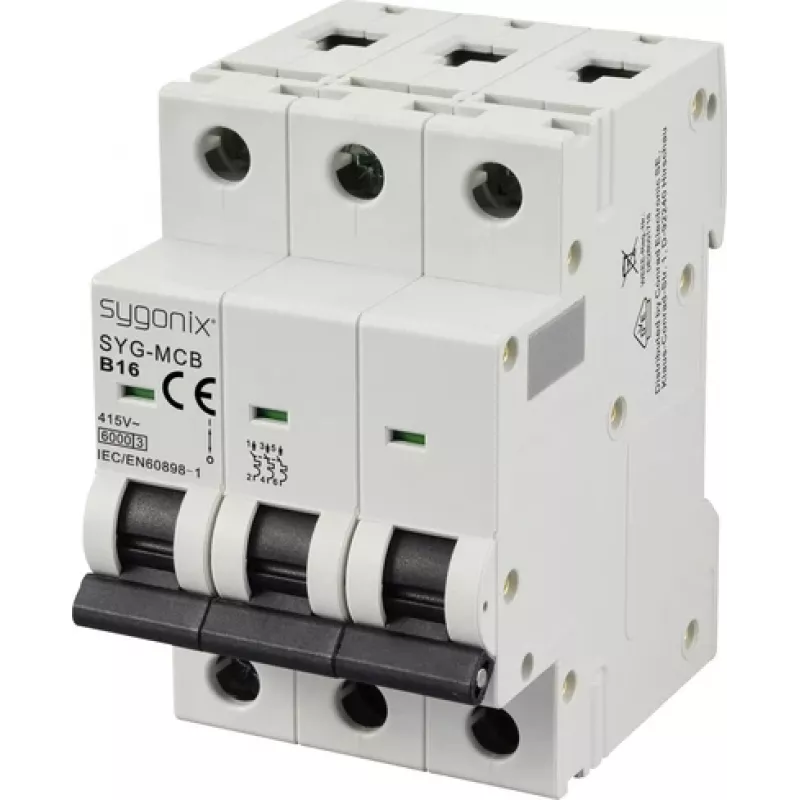

Sygonix SY-6440994 3-polige installatieautomaat B16 16A 6kA 415V AC

The Sygonix SY-6440994 is a 3-pole miniature circuit breaker (MCB) with a B16 tripping characteristic, rated for 16 A and 415 V AC. Its 6 kA breaking capacity and thermal-magnetic trip mechanism provide reliable protection against overcurrent and short circuits in industrial and commercial electrical installations. The compact 3-module design mounts directly onto a standard DIN rail, simplifying integration into distribution boards.

Highlights

• 3-pole MCB with B tripping characteristic
• Rated current: 16 A
• Rated voltage: 415 V AC
• Breaking capacity: 6 kA
• Thermal-magnetic trip mechanism
• DIN rail mounting, 3 modules wide

In daily use

This breaker is suited for protecting three-phase circuits against overload and short-circuit conditions. The B curve ensures fast tripping at moderate inrush currents, making it appropriate for general-purpose loads such as lighting and socket circuits. Screw terminals provide secure conductor connections, and the standard 50/60 Hz frequency rating covers most utility supplies.

Full specifications

• Device type: Miniature circuit breaker (MCB)
• Number of poles: 3
• Rated current: 16 A
• Tripping characteristic: B
• Rated short-circuit breaking capacity (Icn): 6 kA
• Rated voltage (AC): 415 V
• Frequency: 50/60 Hz
• Mounting type: DIN rail
• Terminal type: Screw terminals
• Number of modules: 3
• Application: Overcurrent and short-circuit protection
• Operating principle: Thermal-magnetic

Final note

The Sygonix SY-6440994 combines a proven thermal-magnetic trip mechanism with a robust 6 kA breaking capacity, offering dependable circuit protection for three-phase installations.
