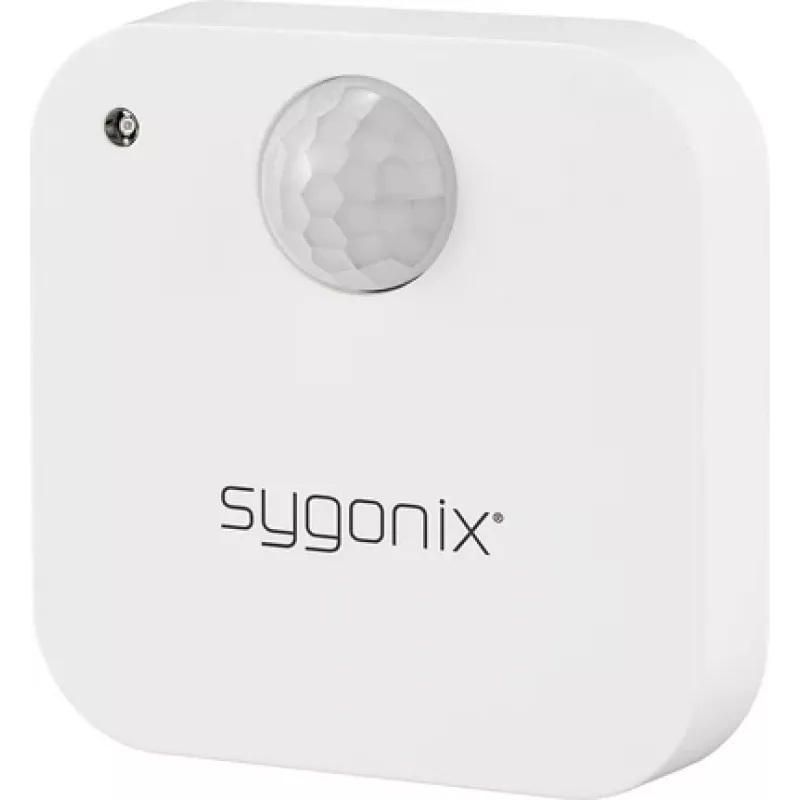

Sygonix SY-6811312 wand-/plafondbewegingsmelder 120° wit

Manually switching lights on and off in hallways, stairwells, or utility rooms wastes energy and is inconvenient. The Sygonix SY-6811312 motion detector solves this by automatically controlling lighting based on movement and ambient brightness.

Who is it for

Ideal for homeowners and businesses seeking an easy way to automate indoor lighting in areas like corridors, garages, basements, and bathrooms. It suits anyone wanting to reduce energy costs without complex smart home setups.

Main features

• Passive infrared (PIR) sensor detects motion within a 120° angle up to 10 metres.
• Adjustable switch-off delay from 10 seconds to 7 minutes to suit different needs.
• Twilight sensitivity adjustable from 3 to 2000 lux, so it only activates when needed.
• Supports incandescent loads up to 1200 W and LED/energy-saving lamps up to 300 W.
• Surface-mounted on wall or ceiling; recommended height 1.8–2.5 m.
• Durable white ABS housing blends with most interiors.

Specifications

• Detection technology: PIR (Passive Infrared)
• Detection angle: 120°
• Detection range: max. 10 m (at 2.5 m mounting height)
• Mounting type: Wall, Ceiling (surface-mounted)
• Recommended mounting height: 1.8 - 2.5 m
• Operating voltage: 230 V/AC, 50 Hz
• Max. switching capacity (incandescent): 1200 W
• Max. switching capacity (LED/ESL): 300 W
• Time setting (switch-off delay): 10 s - 7 min (adjustable)
• Light sensitivity (twilight): 3 - 2000 Lux (adjustable)
• Protection class: IP20
• Colour: White
• Material: ABS Plastic
• Operating temperature: -20 to +40 °C
• Installation: 3-wire connection

Tips

For best coverage, mount the detector at the recommended height and avoid pointing it at heat sources or windows. Adjust the time and lux settings after installation to match the room's usage patterns.
