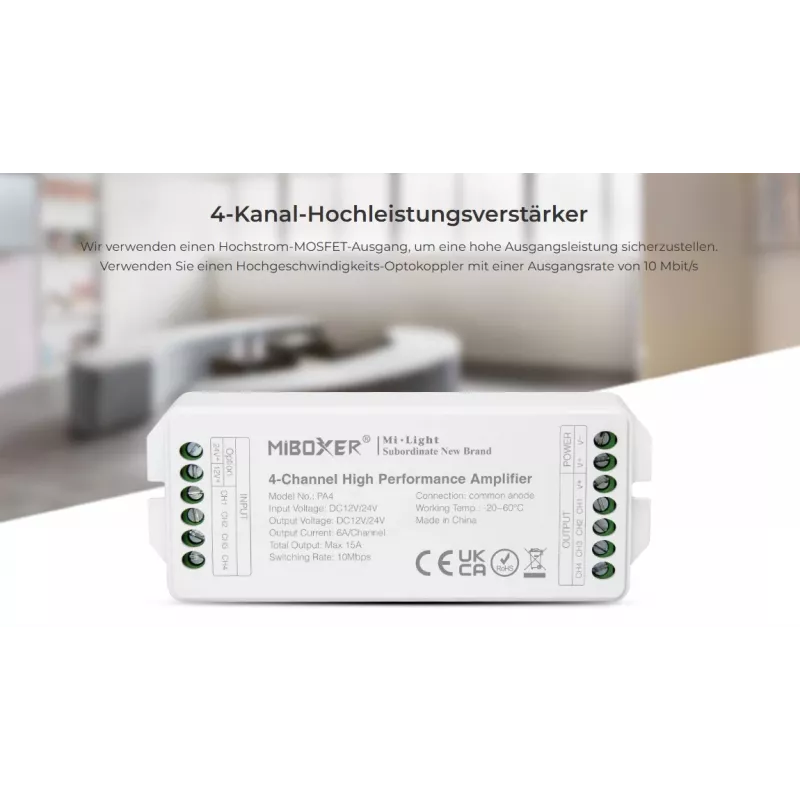

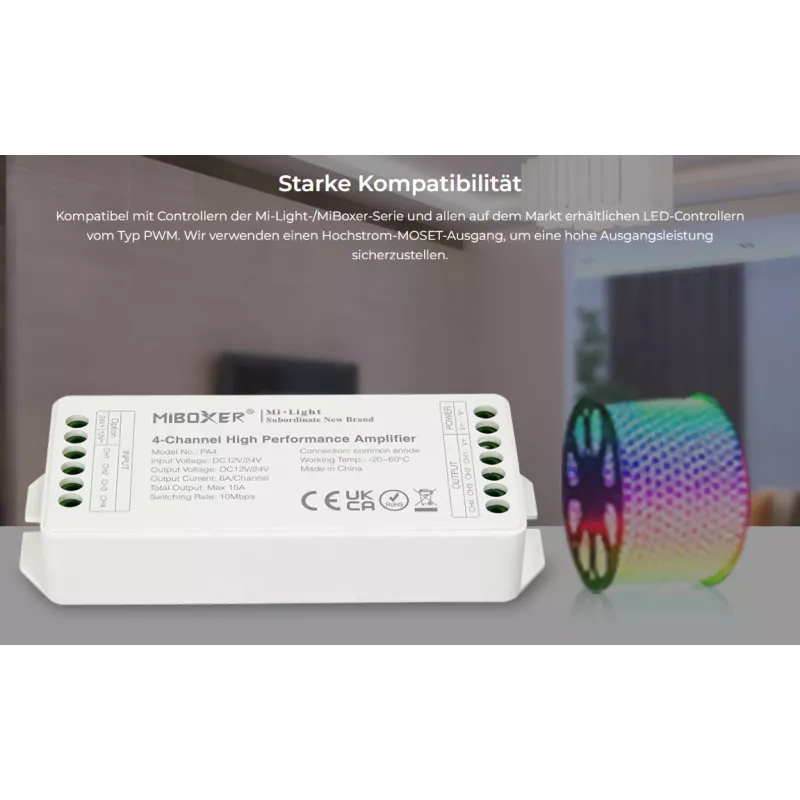

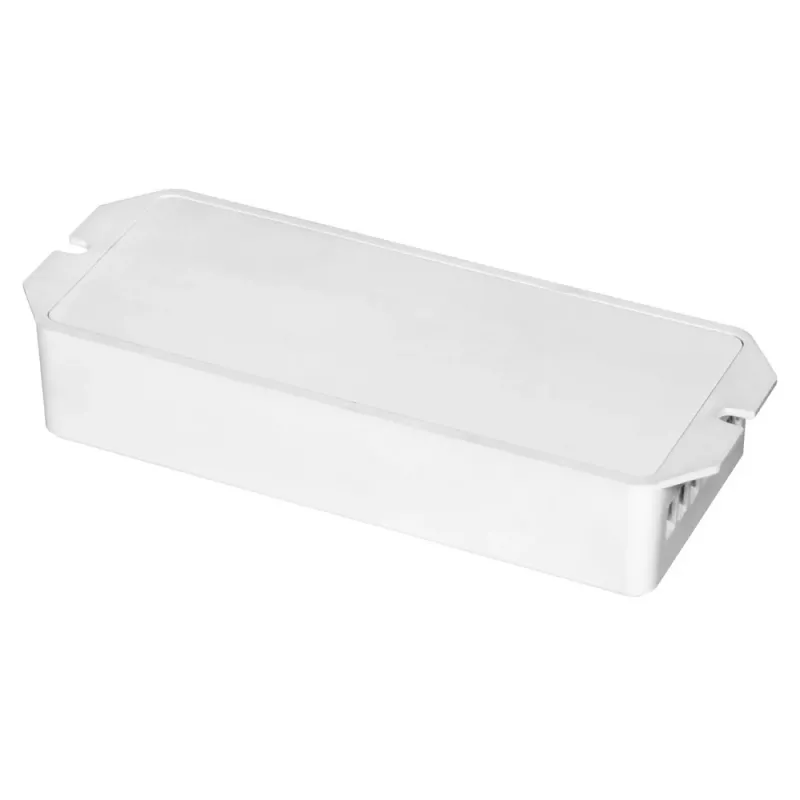

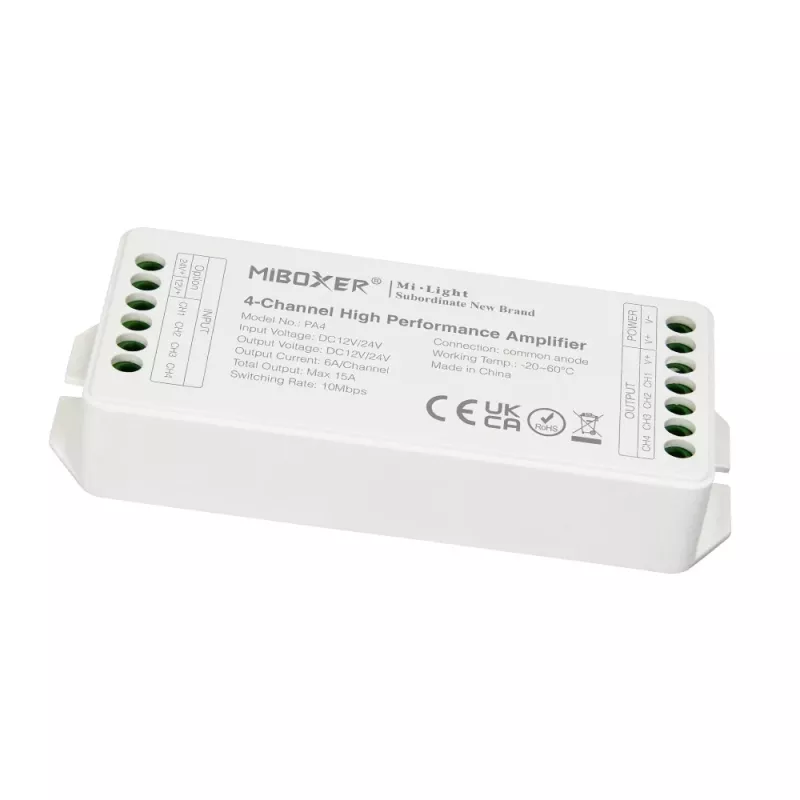

Synergy 21 LED-controller AMP-serie 4-kanaals versterker voor MiLight/MiBoxer (PA4)

Expand your MiLight or MiBoxer LED lighting setup with the Synergy 21 AMP-Serie 4-Channel Amplifier. This amplifier boosts the PWM control signal from your existing controller, allowing you to drive longer LED strips or multiple strips without signal degradation. Ideal for large residential or commercial installations where a single controller cannot supply enough current.

Key specifications

• 4-channel PWM amplifier compatible with MiLight / MiBoxer controllers
• Input and output voltage: DC 12-24V
• Max output current per channel: 6A (total 24A)
• Max output power: 288W at 12V, 576W at 24V
• Supports RGB, RGBW, and RGB+CCT LED types
• Screw terminal connections for secure wiring
• Aluminum housing for heat dissipation
• Operating temperature: -20°C to 60°C
• Overload and short circuit protection
• Static power consumption: <1W
• Dimming range: 0-100%

Why choose it

This amplifier ensures consistent brightness and color accuracy across extended LED runs. Its robust aluminum housing and protection features make it reliable for continuous operation in demanding environments.

Ideal use cases

• Extending LED strip lighting in coves, cabinets, or architectural features
• Large residential or commercial lighting projects
• Retrofitting existing MiLight systems with additional LED load

Good to know

The amplifier requires a separate DC power supply (not included) matched to your LED voltage and total wattage. Connect the PWM signal from your controller to the input terminals and your LED strips to the output terminals.
