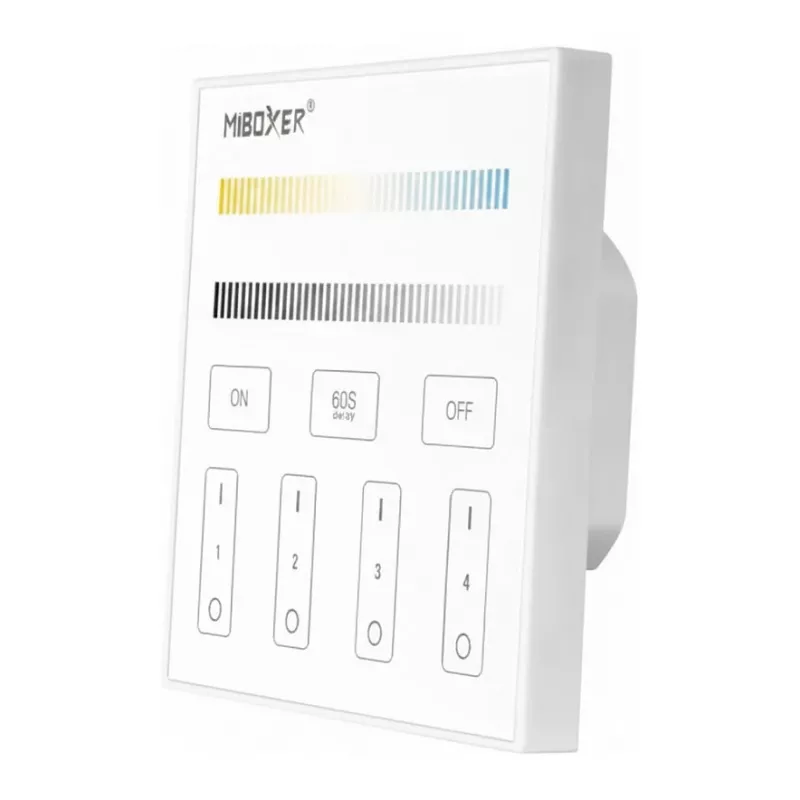

Synergy 21 LED DMX 2 in 1 smart touch paneel Milight/Miboxer (X2)

The Synergy 21 LED DMX 2 in 1 Smart Touch Panel (X2) is a versatile controller that combines DMX512 wired control with 2.4GHz RF wireless compatibility for Milight/Miboxer systems. Designed for professional and smart home lighting, it features a sleek glass touch panel and supports RGB+CCT LEDs across 4 zones.

Advantages

Dual control protocols (DMX and RF) offer flexibility for both wired installations and wireless remote operation. The capacitive touch panel provides intuitive dimming, color change, and scene selection. Memory function retains last settings, and pre-programmed dynamic modes add ambiance.

Suitable for

• Smart home lighting systems
• Commercial and residential LED installations
• Stage and architectural lighting
• Retrofit projects requiring DMX or RF control

Key specifications

• Control Protocols: DMX512 (wired) and 2.4GHz RF (Milight/Miboxer compatible)
• Number of Zones: 4
• Lighting Compatibility: RGB+CCT (Red, Green, Blue, Cool White, Warm White)
• Control Functions: Dimming, color change, color temperature adjustment, scene control
• Input Voltage: AC 100-240V
• Control Method: Capacitive touch panel
• Installation: Wall-mounted (standard EU/US gang box)
• Panel Material: Glass; Body Material: PC
• Operating Temperature: -20°C to 60°C
• Wireless Range: Up to 30m (line of sight)
• Dimming Range: 0-100%
• Memory Function: Yes
• Dynamic Modes: 9-10 pre-programmed
• Certifications: CE, RoHS

Recommendations

Ideal for users seeking a hybrid DMX/RF controller with touch interface. Ensure compatibility with Milight/Miboxer 2.4GHz devices. Professional installation recommended for DMX wiring.
