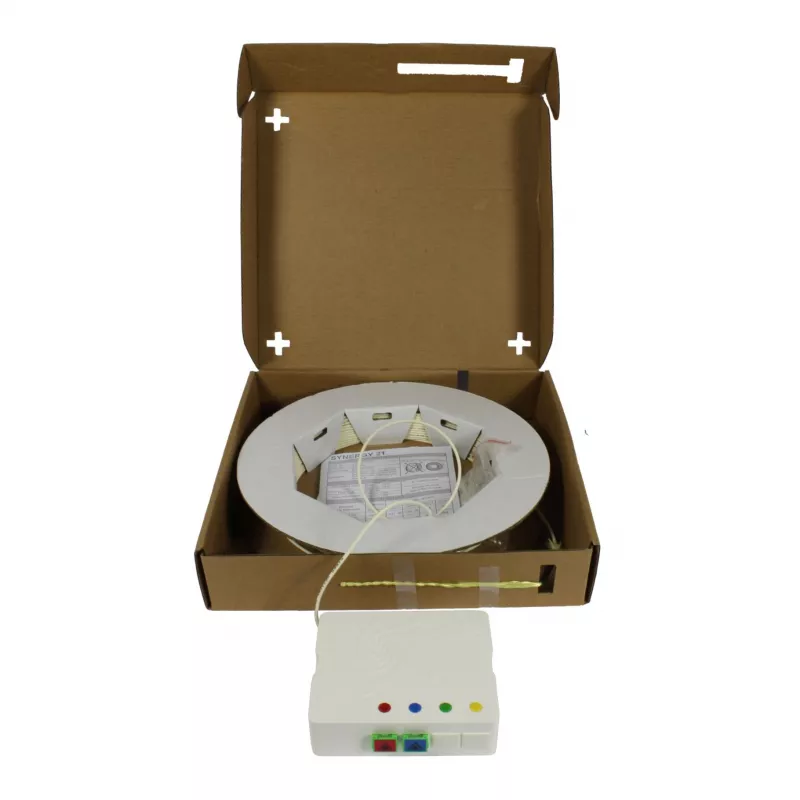

SYNERGY21 FTTH Compact Box voorgemonteerd, 2xSC/APC -> open end, 20m, 9/125µm, G.657.A2, 2-vezel, OD 2,2mm

The SYNERGY21 FTTH Compact Box is a pre-terminated fiber optic termination box designed for Fiber to the Home (FTTH) installations. It features a 20-meter single-mode duplex cable with 2xSC/APC connectors on one end and an open end on the other, making it ideal for quick and reliable fiber connections in indoor environments.

Advantages

This pre-assembled solution saves installation time and ensures high-quality connections. The bend-insensitive G.657.A2 fiber allows for tight bends without signal loss, and the compact box design provides easy mounting and protection for the splice points.

Suitable for

• FTTH network installations
• Indoor fiber optic termination points
• Connecting optical network terminals (ONT) to fiber drop cables
• SC/APC fiber optic systems

Key specifications

• Product Type: FTTH Compact Termination Box
• Fiber Optic Cable Type: Single-mode
• Fiber Core/Cladding Diameter: 9/125 µm
• Fiber Standard: ITU-T G.657.A2 (Bend-Insensitive)
• Number of Fibers: 2-Fiber (Duplex)
• Cable Length: 20 m
• Cable Outer Diameter (OD): 2.2 mm
• Connector Type (End 1): SC/APC
• Number of Connectors (End 1): 2
• Connector Type (End 2): Open End
• Termination Status: Pre-terminated
• Connector Polishing: APC (Angled Physical Contact)
• Installation Environment: Indoor
• Compatibility: SC/APC Fiber Optic Systems

Recommendations

For optimal performance, ensure that the open end is terminated with compatible connectors or spliced according to your network requirements. This product is designed for indoor use only.
