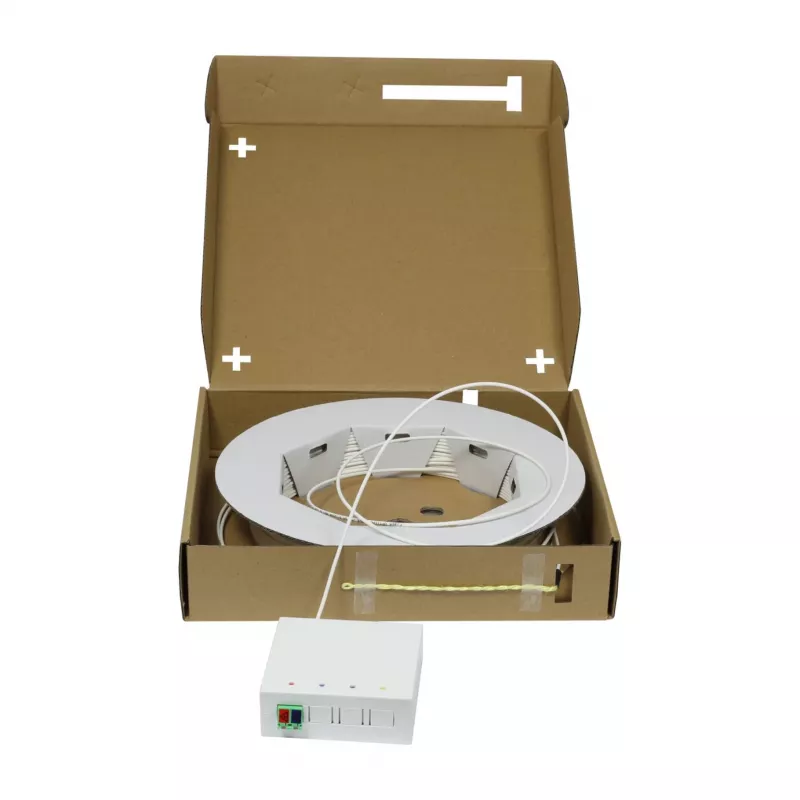

SYNERGY21 FTTH compacte box voorgemonteerd, 2xLC/APC -> open end, 20m, 9/125µm, G.657.A2, 2-vezel, OD=2,2mm

The SYNERGY21 FTTH Compact Box is a pre-assembled fiber optic termination solution designed for Fiber to the Home (FTTH) applications. It features a 20-meter single-mode cable with 2 fibers, terminated with 2x LC/APC connectors on one end and an open end on the other. The cable meets ITU-T G.657.A2 bend-insensitive standard, ensuring reliable performance even in tight bends. With a compact design and 2.2mm outer diameter, it is ideal for space-constrained installations.

Advantages

Pre-terminated for quick and easy installation, eliminating the need for field splicing. Bend-insensitive fiber allows flexible routing without signal degradation. High-quality LC/APC connectors provide low insertion loss (<0.3 dB) and high return loss (>60 dB), ensuring excellent signal integrity.

Suitable for

• FTTH (Fiber to the Home) installations
• Fiber optic termination in distribution boxes or wall outlets
• Connecting optical network terminals (ONT) to fiber distribution networks

Key specifications

• Product Type: FTTH Compact Termination Box
• Fiber Type: Single-mode, 9/125µm
• Fiber Standard: ITU-T G.657.A2 (Bend-insensitive)
• Number of Fibers: 2 (Duplex)
• Connector End 1: 2x LC/APC
• Connector End 2: Open End
• Cable Length: 20 meters
• Cable Outer Diameter: 2.2 mm
• Connector Polish: APC (Angled Physical Contact)
• Typical Insertion Loss: <0.3 dB
• Typical Return Loss: >60 dB
• Wavelength Compatibility: 1310nm, 1550nm

Recommendations

For optimal performance, ensure proper handling and avoid sharp bends. Compatible with standard FTTH termination boxes and optical network units (ONUs).
