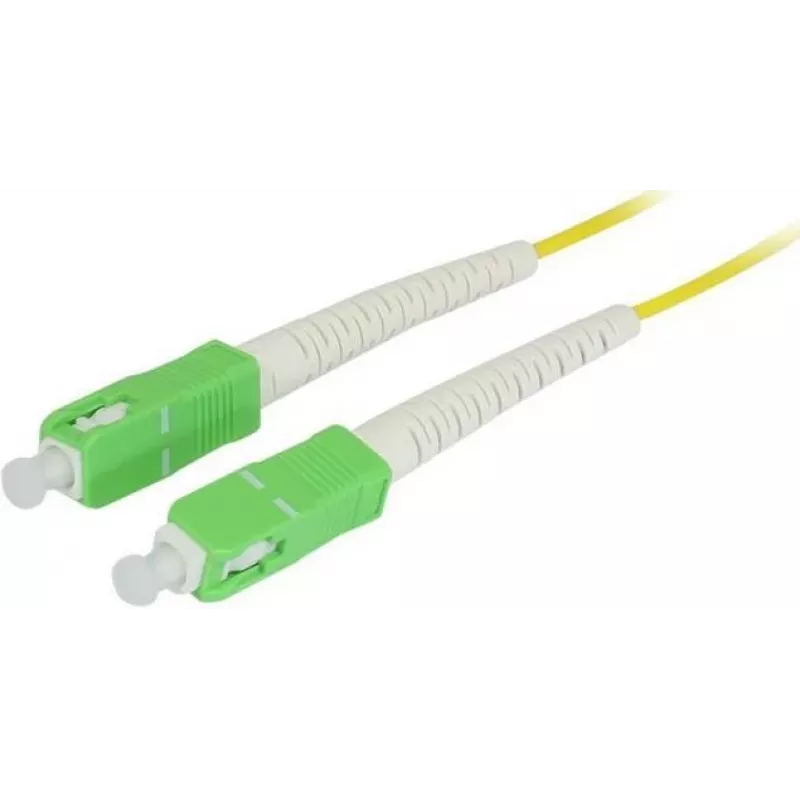

SYNERGY21 glasvezel-patchkabel 15m SC/APC-SC/APC 9/125µm OS2 G.657.A2 simplex 2mm buigbestendig geel

The SYNERGY21 S215718 is a high-quality single-mode fiber optic patch cable designed for reliable, high-speed data transmission in telecommunications, data centers, and LAN networks. With a length of 15 meters and SC/APC connectors on both ends, this simplex cable features a 9/125µm core/cladding, OS2 category, and G.657.A2 bend-insensitive fiber for flexible routing. The 2mm outer diameter and flexible bend protection boots ensure durability and easy installation.

Advantages

This fiber optic patch cable offers low insertion loss (≤0.3 dB) and high return loss (≥60 dB), ensuring excellent signal integrity. The bend-insensitive design allows tight bends without performance degradation, making it ideal for space-constrained environments. The yellow jacket provides easy identification for single-mode cables.

Suitable for

• Data center interconnects
• Local Area Networks (LAN)
• FTTx (Fiber to the x) deployments
• Telecommunication networks
• High-speed data transmission up to 10 Gbps and beyond

Key specifications

• Fiber Type: Single-Mode (OS2)
• Connectors: SC/APC to SC/APC
• Core/Cladding: 9/125 µm
• Cable Length: 15 m
• Outer Diameter: 2 mm
• Jacket Color: Yellow
• Insertion Loss: ≤ 0.3 dB
• Return Loss: ≥ 60 dB
• Operating Temperature: -20°C to +70°C
• Storage Temperature: -40°C to +85°C
• Compliance: RoHS, CE

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with standard SC/APC ports and supports high-bandwidth applications. Ideal for use with SYNERGY21 networking equipment.
