SYNERGY21 glasvezel-patchkabel 20m SC-SC APC 9/125 OS2 G657A2 2mm simplex singlemode

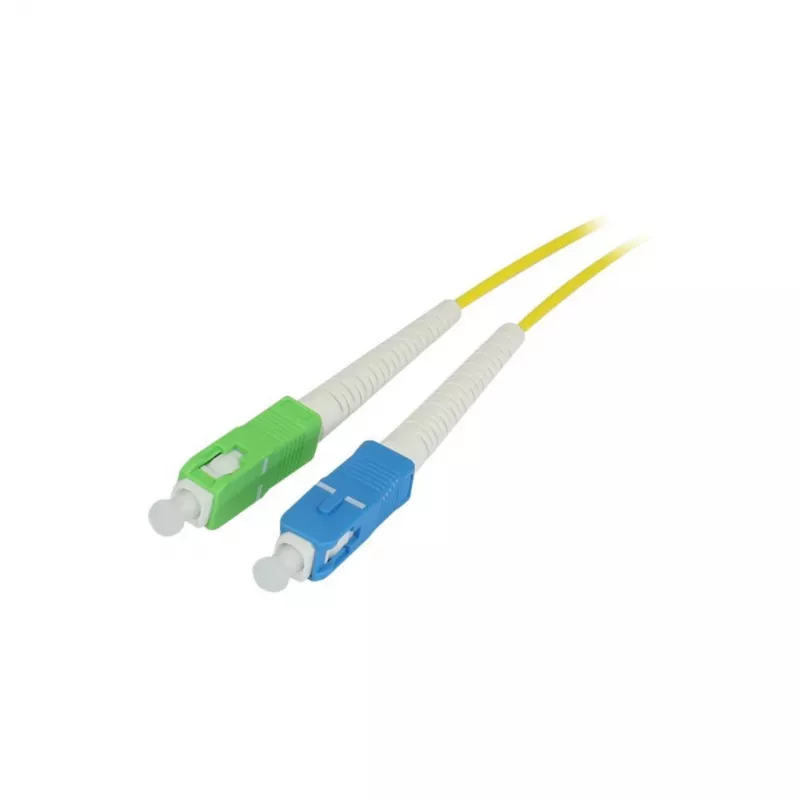

The SYNERGY21 Fiber Optic Patch Cable is a high-performance single-mode simplex cable designed for reliable data transmission in demanding network environments. With a length of 20 meters and SC/APC connectors on both ends, this cable ensures low insertion loss and high return loss, making it ideal for FTTH, CATV, and high-speed data networks. The 9/125 µm core/cladding and OS2 standard support 10GbE, 40GbE, and 100GbE applications. The G.657.A2 bend-insensitive fiber and 2 mm flexible jacket allow for easy installation in tight spaces without compromising signal quality.

Advantages

This patch cable offers superior bend resistance thanks to G.657.A2 fiber, reducing signal loss during installation. The APC polish minimizes back reflection, ensuring stable performance for sensitive optical systems. Its compact 2 mm diameter and flexible design make it easy to route in patch panels and cable trays.

Suitable for

• Data center interconnects
• Telecommunications networks
• FTTH (Fiber to the Home) installations
• High-speed LAN/WAN applications
• CATV and broadcast systems

Key specifications

• Fiber Type: Single-Mode (OS2)
• Core/Cladding: 9/125 µm
• Connectors: SC/APC to SC/APC
• Fiber Count: Simplex (1 fiber)
• Cable Length: 20 m
• Cable Outer Diameter: 2 mm
• Fiber Standard: ITU-T G.657.A2
• Jacket Material: Flexible PVC (assumed)
• Application: Indoor

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with all standard SC/APC ports. Pair with SYNERGY21 patch panels for a complete solution.
