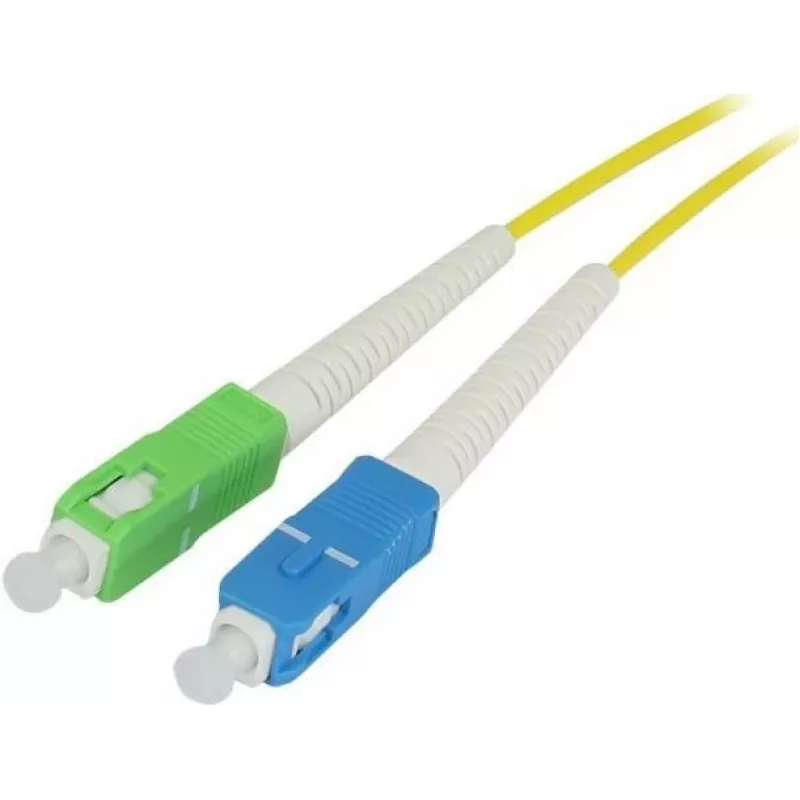

SYNERGY21 glasvezel-patchkabel 5m SC/SC APC OS2 G.657.A2 9/125µm simplex LSZH 2mm

The SYNERGY21 S215735 is a high-quality single-mode fiber optic patch cable designed for reliable data transmission in demanding network environments. With a length of 5 meters and SC/APC connectors on both ends, this simplex cable ensures low insertion loss and high return loss, making it ideal for FTTH, telecommunications, data centers, and LAN applications. The cable features a 9/125 µm core/cladding, OS2 grade, and complies with ITU-T G.657.A2 bend-insensitive standard, allowing tight bends without signal degradation. The 2 mm outer diameter and flexible bend protection boot provide durability and ease of installation in confined spaces. The LSZH (Low Smoke Zero Halogen) jacket ensures safety in indoor environments.

Advantages

This patch cable offers superior performance and reliability for single-mode fiber networks. The APC (Angled Physical Contact) polish minimizes back reflection, ensuring high signal integrity. The bend-insensitive design reduces signal loss even when bent around corners, simplifying cable management. The LSZH jacket makes it safe for use in areas with strict fire safety regulations.

Suitable for

• Data centers requiring high-speed, low-loss connections
• Telecommunications networks for long-distance transmission
• FTTH (Fiber to the Home) installations
• Local Area Networks (LAN) with single-mode fiber infrastructure

Key specifications

• Product Type: Fiber Optic Patch Cable
• Fiber Type: Single-Mode
• Fiber Grade: OS2
• Fiber Standard: ITU-T G.657.A2
• Core Diameter: 9 µm
• Cladding Diameter: 125 µm
• Cable Length: 5 meters
• Connector Type A: SC/APC
• Connector Type B: SC/APC
• Number of Fibers: 1 (Simplex)
• Cable Outer Diameter: 2 mm
• Connector Polishing: APC (Angled Physical Contact)
• Bend Sensitivity: Bend-Insensitive
• Features: Flexible Bend Protection Boot
• Jacket Material: LSZH (Low Smoke Zero Halogen)

Recommendations

For optimal performance, ensure connectors are clean before mating. Use appropriate patch panels and splice closures. This cable is compatible with standard SC/APC adapters and equipment.
