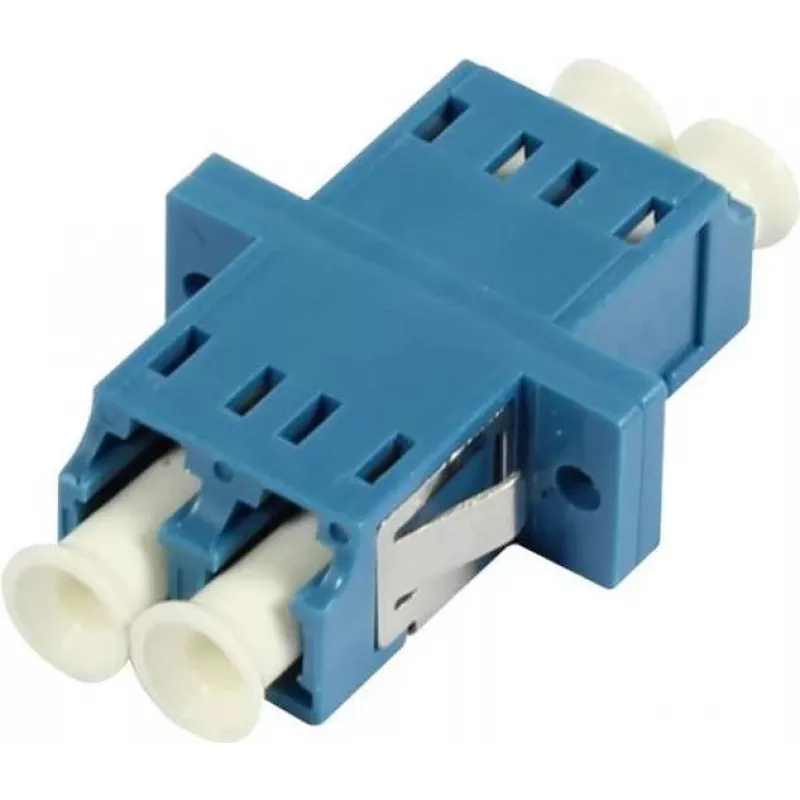

SYNERGY21 LC-LC duplex multimode OM2 glasvezeladapter, keramische huls, PVC, blauw

The SYNERGY21 S215426 is a high-quality LC-LC duplex fiber optic adapter designed for reliable interconnection in multimode fiber networks. Featuring ceramic alignment sleeves and a durable PVC housing, this adapter ensures low insertion loss and long-term stability. It supports 50/125 µm and 62.5/125 µm multimode fibers, making it ideal for OM2 applications. The blue color indicates multimode compatibility, and the duplex configuration allows simultaneous bidirectional data transmission.

Advantages

Ceramic sleeves provide precise fiber alignment and minimal signal loss. The robust PVC housing protects internal components from dust and mechanical stress. Duplex design doubles connectivity in a single unit, saving space in patch panels and enclosures. Compatible with both 50/125 µm and 62.5/125 µm fibers, offering flexibility for existing installations.

Suitable for

• Fiber optic network interconnection in data centers
• Telecommunications and LAN cabling
• FTTx and enterprise network infrastructure
• Testing and measurement setups

Key specifications

• Product Type: Fiber Optic Adapter (Coupler)
• Connector Type A: LC Female
• Connector Type B: LC Female
• Fiber Mode: Multimode
• Fiber Category: OM2
• Core/Cladding Diameter: 50/125 µm (also compatible with 62.5/125 µm)
• Configuration: Duplex
• Sleeve Material: Ceramic
• Housing Material: PVC
• Number of Fibers: 2
• Colour: Blue

Recommendations

For optimal performance, pair with high-quality LC patch cables and ensure clean connector end-faces before mating. This adapter is suitable for both horizontal and backbone cabling in structured cabling systems.
