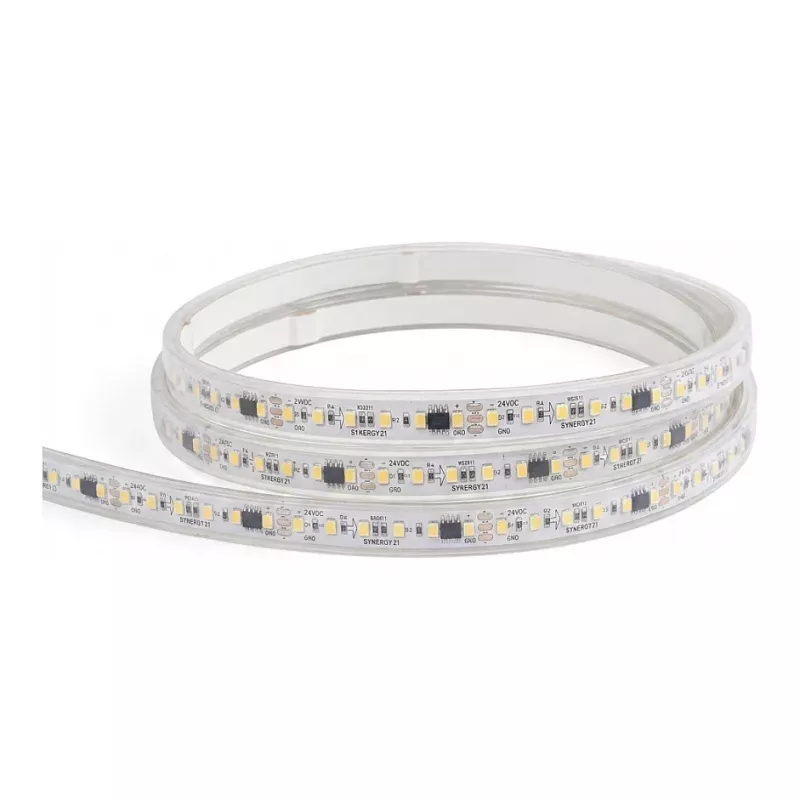

SYNERGY21 LED Flex Strip 2835 - 120 NW Pixel DC24V WS2811 IP65

The SYNERGY21 LED Flex Strip 2835 is a high-performance, individually addressable LED strip designed for professional lighting installations. Featuring SMD 2835 LEDs with a density of 120 LEDs per meter, this strip delivers natural white light with a color temperature of 4000K-4500K. Controlled by the WS2811 IC, each pixel (3 LEDs) can be individually addressed, allowing for dynamic lighting effects. Operating at DC 24V, it consumes approximately 12W per meter and provides a luminous flux of 1000-1200 lm/m. With an IP65 rating, it is dust-tight and protected against water jets, making it suitable for both indoor and outdoor use. The strip is cuttable every 3 LEDs (approx. 2.5 cm) and features a self-adhesive 3M tape backing for easy installation. The PCB width is 10 mm, and the strip has a beam angle of 120°. It is dimmable via an external controller and has a lifespan of over 50,000 hours. The interface is 3-wire (Data, VCC, GND).

Advantages

Individually addressable pixels for creative lighting designs; high brightness and efficiency; durable IP65 construction; easy installation with self-adhesive backing; long lifespan.

Suitable for

• Architectural lighting
• Accent lighting
• Signage
• Event decoration
• DIY projects

Key specifications

• LED Type: SMD 2835
• LED Density: 120 LEDs/m
• Color: Natural White
• Color Temperature: 4000K-4500K
• Control IC: WS2811
• Addressability: Individually Addressable
• Pixels per Meter: 40
• Input Voltage: DC 24V
• Power Consumption: ~12 W/m
• Luminous Flux: ~1000-1200 lm/m
• IP Rating: IP65
• Beam Angle: 120°
• Cuttable Segments: Every 3 LEDs
• CRI: >80 Ra
• Operating Temperature: -20°C to +50°C
• Lifespan: >50,000 hours
• Backing: Self-adhesive (3M tape)
• PCB Width: 10 mm
• Dimmability: Yes, via external controller
• Interface: 3-Wire (Data, VCC, GND)

Recommendations

For optimal performance, use with a compatible DC 24V power supply and a WS2811 controller. Ensure proper heat dissipation when mounting on non-flammable surfaces.
