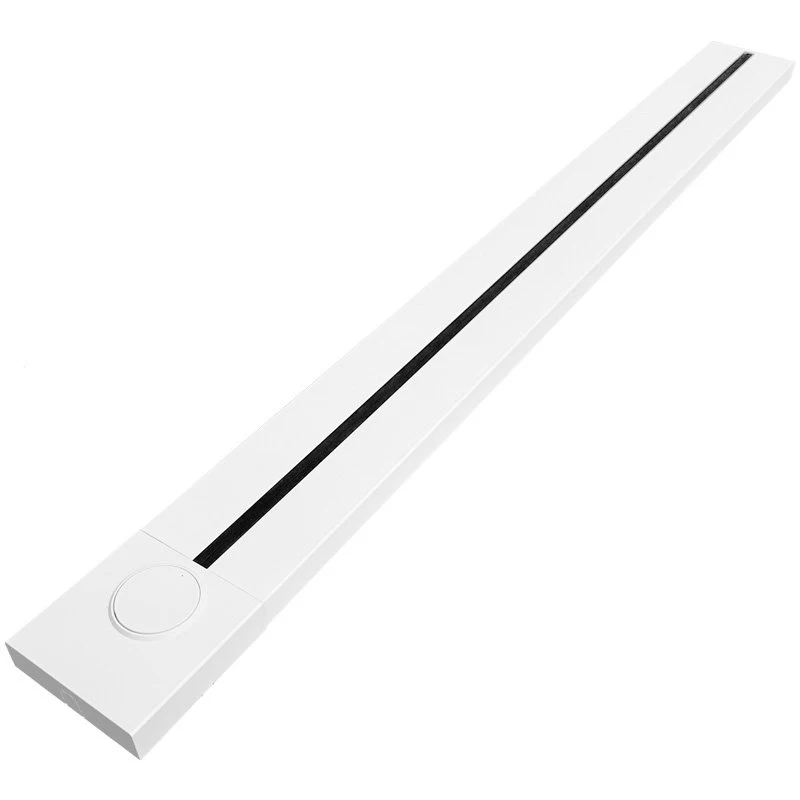

SYNERGY21 MODULRAIL 800mm stekkerdoos met schakelaar, wit (S21-MR009)

In workshops, offices and technical rooms, a rigid row of Schuko sockets often ends up too short, too cluttered or too hard to reach. The SYNERGY21 MODULRAIL 800 mm socket rail solves this by putting four protected sockets and a central switch on a single aluminum profile that mounts cleanly to walls, workbenches or cable ducts.

Who is it for

Electricians, facility managers and anyone building modular workstations who needs a fixed, clearly arranged 230 V distribution point with a master switch.

Main features

• 4 Schuko (Type F) sockets with child protection
• Integrated illuminated switch for the whole rail
• 800 mm aluminum housing, surface mount
• Input via Wieland GST18i3 plug, 16 A / 230 V
• Max load 3680 W, 50 Hz

Specifications

• Brand: SYNERGY21
• Model: S21-MR009
• Series: MODULRAIL
• Length: 800 mm
• Colour: White
• Number of sockets: 4
• Socket type: Schuko (Type F)
• Integrated switch: Yes
• Input connection: Wieland GST18i3 plug
• Nominal voltage: 230 V AC
• Nominal current: 16 A
• Max power load: 3680 W
• Frequency: 50 Hz
• Housing material: Aluminum
• Mounting type: Modular rail system (surface mount)
• Protection class: IP20
• Child protection: Yes

Tips

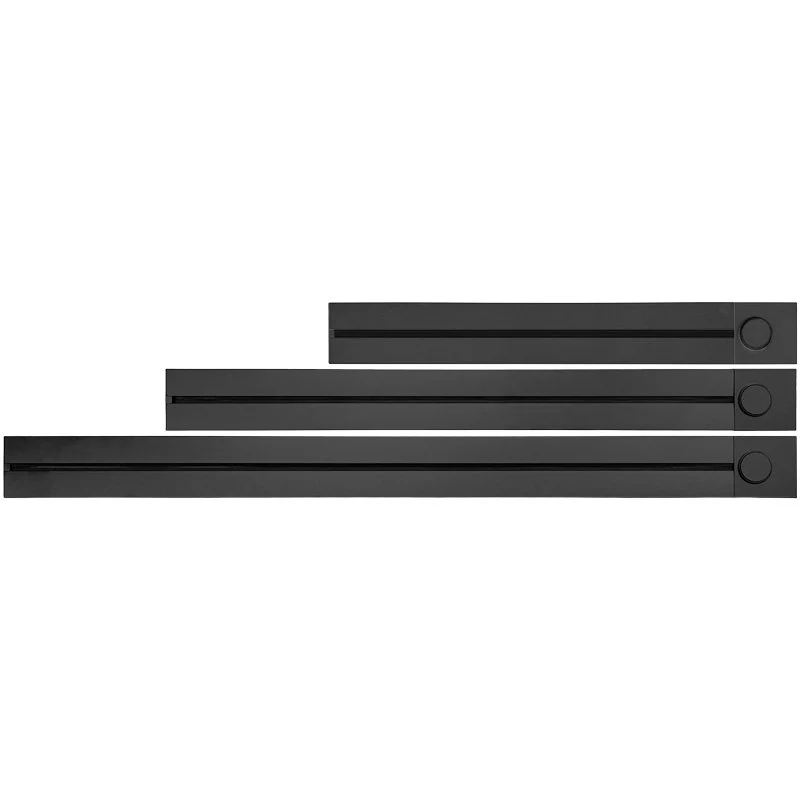

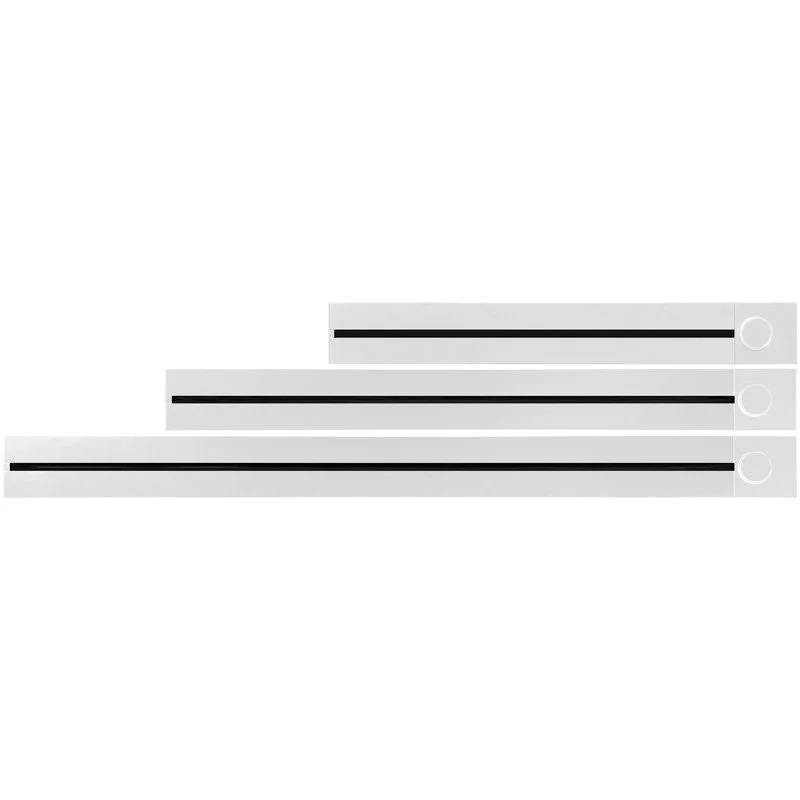

Combine several MODULRAIL lengths and accessories to build a continuous socket run. The GST18i3 input allows tool-free connection to compatible Wieland distribution blocks.
