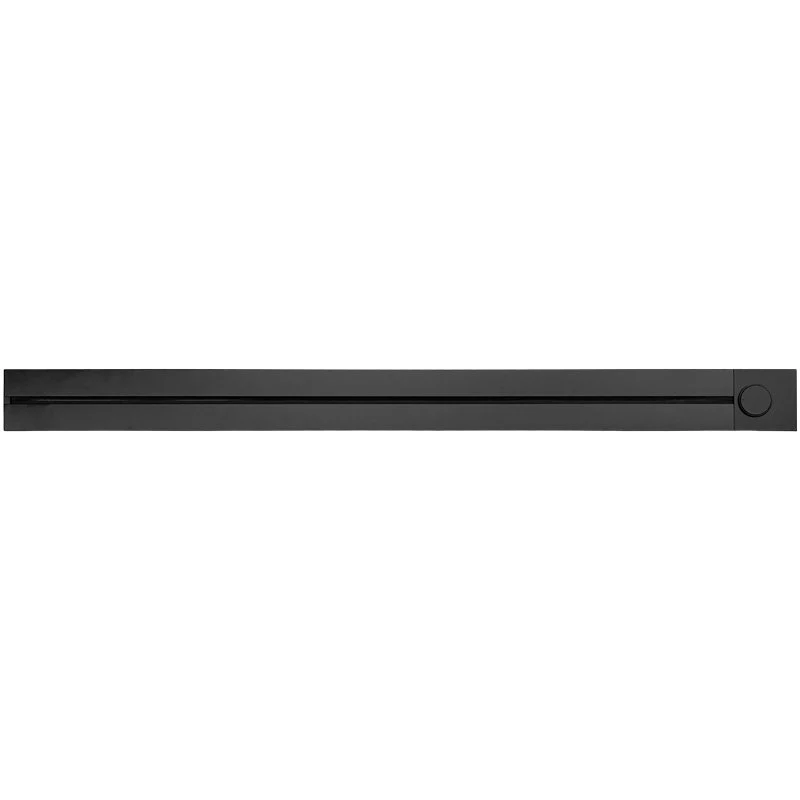

SYNERGY21 MODULRAIL stekkerdoos 1000 mm met schakelaar zwart (S21-MR007)

The SYNERGY21 MODULRAIL S21-MR007 is a 1000 mm modular socket rail that adds ten Schuko sockets and a central illuminated switch to workshops, offices, or server racks. Its aluminium profile keeps the rail rigid, while 45° rotated sockets leave room for angled plugs and bulky power supplies.

Highlights

• 10 Schuko sockets with increased touch protection
• Illuminated on/off switch for quick power control
• 2 m H05VV-F 3G1.5mm² cable with Schuko plug
• Aluminium profile with black plastic end caps
• Mounts on modular rails or directly to a wall

In daily use

The rail is rated for 230 V AC at 50 Hz, with a maximum load of 16 A / 3680 W. The 45° socket orientation helps when connecting several adapters side by side. The illuminated switch shows at a glance whether the rail is energised.

Full specifications

• Length: 1000 mm
• Colour: Black
• Housing material: Aluminium profile
• End cap material: Plastic
• Number of sockets: 10
• Socket type: Schuko (CEE 7/3)
• Switch type: Illuminated on/off switch
• Max current rating: 16 A
• Max power rating: 3680 W
• Nominal voltage: 230 V AC
• Nominal frequency: 50 Hz
• Cable length: 2 m
• Cable type: H05VV-F 3G1.5mm²
• Plug type: Schuko (CEE 7/7)
• Mounting type: Modular rail, wall mount
• Protection class: IP20
• Safety features: Increased touch protection (child safety)
• Socket orientation: 45° rotated

Final note

The MODULRAIL S21-MR007 combines ten protected sockets with a single illuminated switch in a rigid aluminium rail, suited for fixed installations where multiple devices need power from one point.
