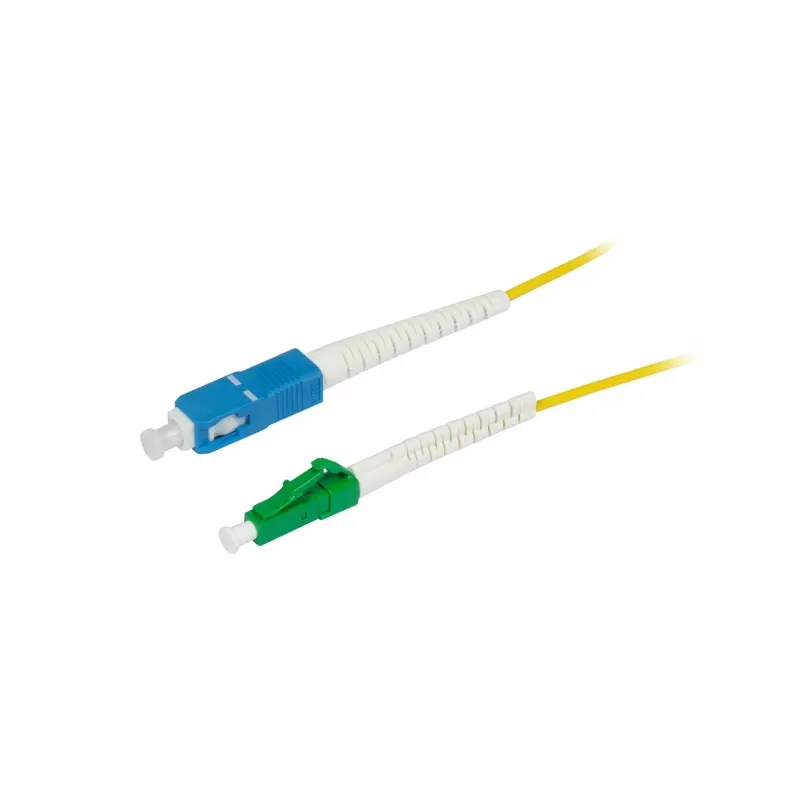

SYNERGY21 S215626V2 0,5m OS2 single-mode glasvezel patchkabel LC/APC naar SC/PC, 9/125µm, G.657.A2, 2mm, flexibele buigbescherming

Fiber optic patch cable with LC/APC to SC/PC connectors, delivering reliable single-mode OS2 performance over 0.5 meters. The 9/125µm core and G.657.A2 bend-insensitive fiber ensure stable signal transmission even in tight routing spaces, while the flexible bend protection sleeve reduces stress at the connector boot.

Advantages

Bend-insensitive G.657.A2 fiber allows installation in confined areas without compromising signal integrity. The LC/APC connector minimizes back reflections, making it suitable for high-performance networks. A slim 2mm outer diameter simplifies cable management in dense patch panels.

Suitable for

• FTTH and FTTx deployments requiring low insertion loss
• Telecom and data center interconnects with SC and LC interfaces
• High-density patching where bend radius is limited

Key specifications

• Fiber type: Single-mode OS2, 9/125µm
• ITU-T standard: G.657.A2 (bend-insensitive)
• Connectors: LC/APC to SC/PC
• Length: 0.5 m
• Cable diameter: 2 mm
• Simplex (1 fiber)

Recommendations

For best performance, pair with OS2-compatible adapters and maintain a minimum bend radius of 10 mm during installation.
