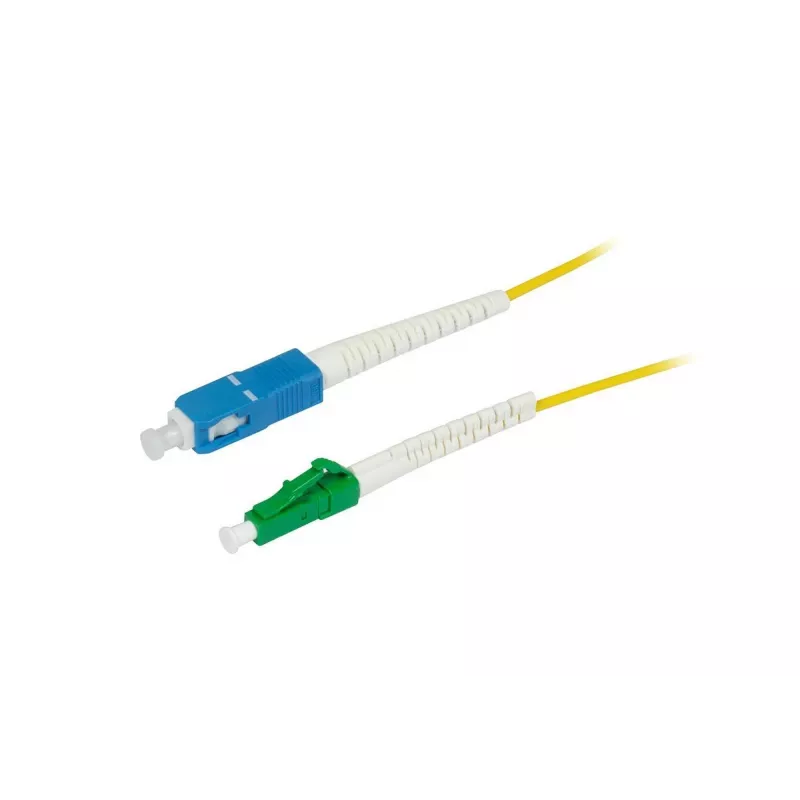

SYNERGY21 S215628V2 1,5m OS2 single-mode glasvezel-patchkabel LC/APC naar SC, 9/125µm, G.657.A2, 2mm, geel

Connect fiber optic equipment in tight spaces with this 1.5-meter single-mode patch cable. The LC/APC connector on one end and SC connector on the other make it suitable for linking FTTH terminals, patch panels, or media converters in indoor network installations. The 2mm outer diameter and flexible bend protection sleeve allow routing around corners without performance loss.

Key specifications

• Fiber type: Single-mode OS2, 9/125µm core/cladding
• ITU-T G.657.A2 bend-insensitive fiber
• Connector A: LC/APC (angled polish)
• Connector B: SC (UPC)
• Length: 1.5 m
• Cable outer diameter: 2 mm
• Jacket color: Yellow
• Insertion loss: < 0.25 dB
• Return loss (APC): > 60 dB
• Operating temperature: -20°C to +70°C

Why choose it

The G.657.A2 fiber withstands tight bends, making installation easier in crowded enclosures. The APC polish on the LC connector minimizes back reflections, crucial for high-speed and RF-over-fiber applications.

Ideal use cases

• FTTH drop connections
• Data center patching
• Telecom room cross-connects

Good to know

This cable is simplex (single fiber) and suited for indoor use. The yellow jacket identifies single-mode fiber per industry convention.
