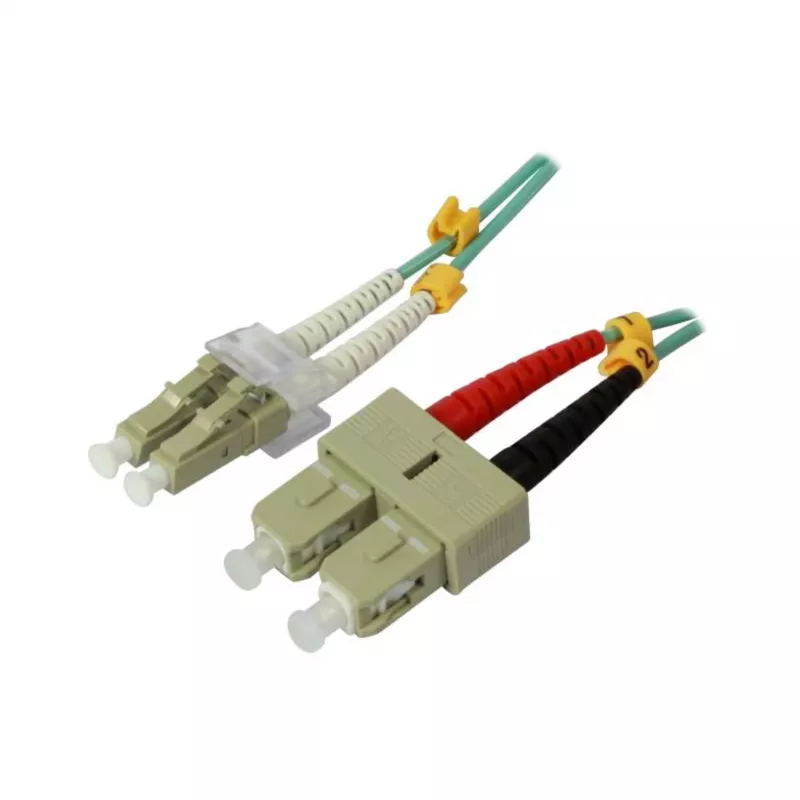

SYNERGY21 S216761 glasvezel-patchkabel 15 m OM3 LC-SC duplex turquoise

The SYNERGY21 S216761 is a high-performance fiber optic patch cable designed for reliable data transmission in demanding network environments. With a length of 15 meters and OM3 multimode fiber, this cable supports 10 Gigabit Ethernet up to 300 meters and is backward compatible with lower speeds. It features LC to SC duplex connectors, both male, and a durable LSZH (Low Smoke Zero Halogen) jacket in turquoise, ensuring safety and easy identification.

Advantages

This patch cable offers low insertion loss and high return loss, ensuring minimal signal degradation and reliable connections. The LSZH jacket reduces toxic and corrosive gas emissions in case of fire, making it ideal for confined spaces. Its turquoise color aids in quick cable management and identification.

Suitable for

• Data centers requiring high-speed interconnects
• Local Area Networks (LANs) with 10G or 40/100G backbone
• Storage Area Networks (SANs) for high-bandwidth storage
• Telecommunications and enterprise cabling infrastructure

Key specifications

• Product Type: Fiber Optic Patch Cable
• Fiber Mode: Multimode
• Fiber Class: OM3
• Cable Length: 15 m
• Connector A: LC Duplex Male
• Connector B: SC Duplex Male
• Number of Fibers: 2
• Core Diameter: 50 µm
• Cladding Diameter: 125 µm
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Jacket Color: Turquoise
• Insertion Loss: ≤ 0.3 dB
• Return Loss: ≥ 30 dB
• Attenuation (850nm): 3.5 dB/km
• Attenuation (1300nm): 1.5 dB/km
• Operating Temperature: -20°C to 70°C
• Compliance: RoHS, CE

Recommendations

For optimal performance, ensure connectors are clean before installation. This cable is compatible with standard LC and SC ports. Use with OM3-rated transceivers for best results.
