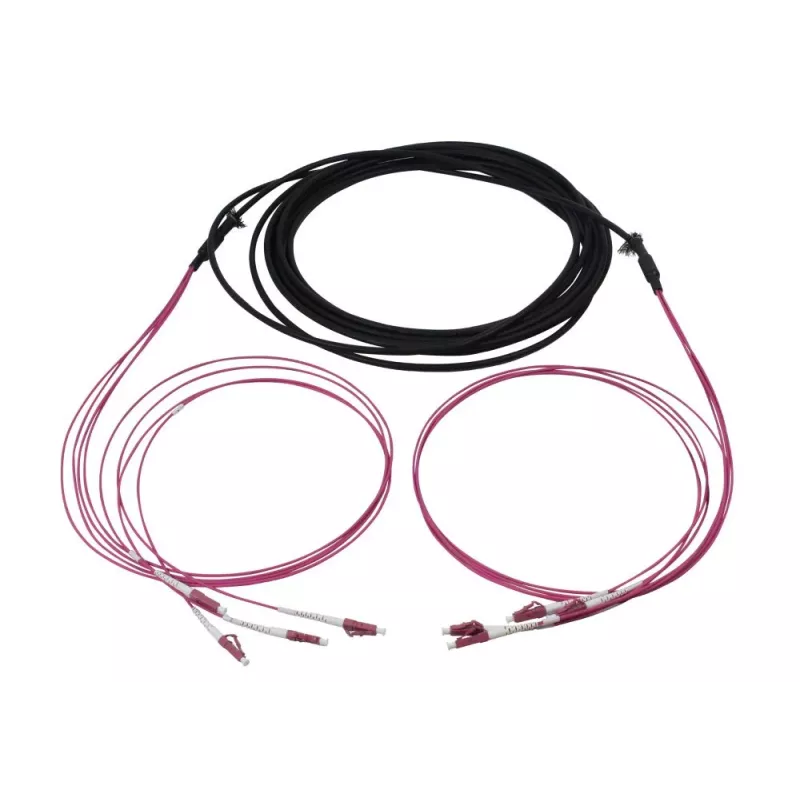

SYNERGY21 S217051V2 20m LC/LC OM4 50/125µm 4-vezel trunk-kabel, halogeenvrij, ring

Fiber optic trunk cable with 4 multimode OM4 fibers, each 50/125µm, terminated with LC connectors on both ends. The 20-meter length is supplied on a ring, ready for structured cabling in data centers and building backbones. The U-DQ(ZN)BH construction features a central loose tube with non-metallic strength members and a halogen-free, flame-retardant sheath, making it suitable for universal indoor and outdoor use.

Advantages

OM4 fiber supports 40/100 Gigabit Ethernet up to 150 meters and provides 4700 MHz·km bandwidth at 850 nm, ensuring headroom for high-speed links. The halogen-free LSZH jacket reduces toxic smoke in case of fire, and the non-metallic design eliminates grounding requirements and electromagnetic interference.

Suitable for

• Data center backbone cabling
• Building-to-building links
• High-density fiber patching
• 10G/40G/100G Ethernet applications

Key specifications

• Fiber type: OM4 multimode, 50/125 µm
• Connectors: LC to LC
• Length: 20 m
• Number of fibers: 4
• Cable construction: U-DQ(ZN)BH, central loose tube
• Sheath: halogen-free, flame-retardant (LSZH)
• Jacket colour: aqua
• Packaging: ring

Recommendations

Verify bend radius and pulling tension limits during installation to maintain optical performance. Use with OM4-compatible transceivers and patch panels for optimal results.
