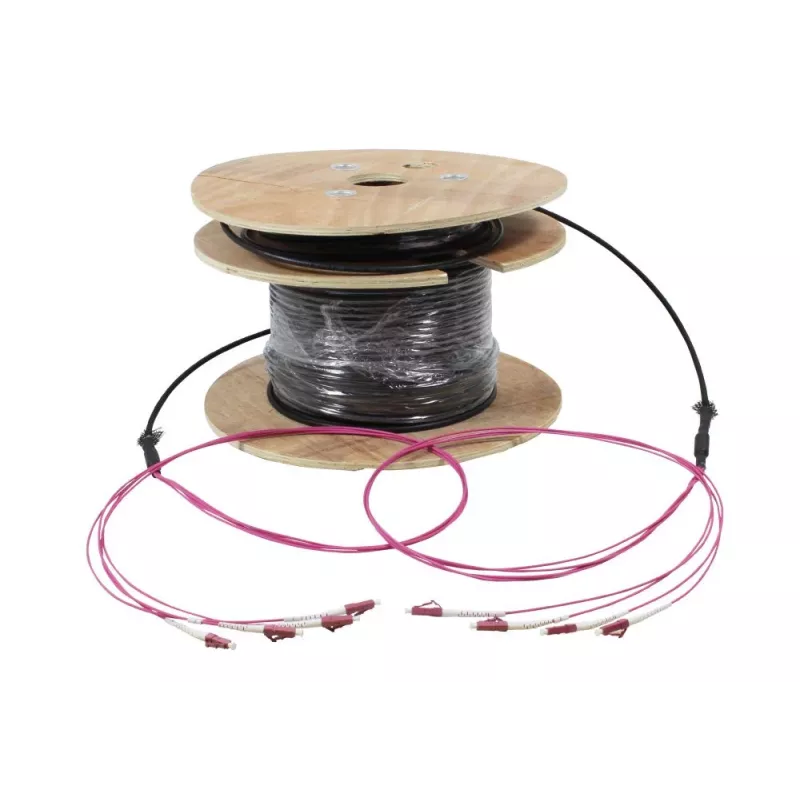

SYNERGY21 S217059V2 glasvezel-trunkkabel U-DQ(ZN)BH 4G 50/125 OM4 LC/LC 100m op haspel

This SYNERGY21 trunk cable stands out with its universal indoor/outdoor design and non-metallic strain relief, offering a robust solution for structured cabling where halogen-free, flame-retardant properties are required. The U-DQ(ZN)BH construction with central loose tube houses four 50/125 µm multimode fibres, terminated with LC connectors on both ends and supplied on a drum for easy deployment.

Highlights

• OM4 multimode fibre supports 10/40/100 GbE up to 550 m at 850 nm
• Halogen-free, flame-retardant LSZH jacket for safe indoor use
• Non-metallic strain relief and central loose tube for durability
• Pre-terminated with LC connectors, 100 m length on drum

In daily use

Ideal for backbone links in data centres, campus networks, or building risers, this cable simplifies installation with factory-terminated LC connectors, eliminating field termination. The LSZH jacket reduces toxic smoke in case of fire, while the universal design withstands both indoor and outdoor conditions.

Full specifications

• Fibre type: Multimode OM4, 50/125 µm
• Number of fibres: 4
• Connectors: LC to LC
• Length: 100 m
• Jacket: Halogen-free, flame-retardant (LSZH)
• Construction: U-DQ(ZN)BH, central loose tube, non-metallic strain relief
• Bandwidth: 4700 MHz·km @ 850 nm, 500 MHz·km @ 1300 nm
• Packaging: On drum

Final note

A reliable, pre-terminated trunk cable for high-speed multimode applications, ready for immediate deployment.
