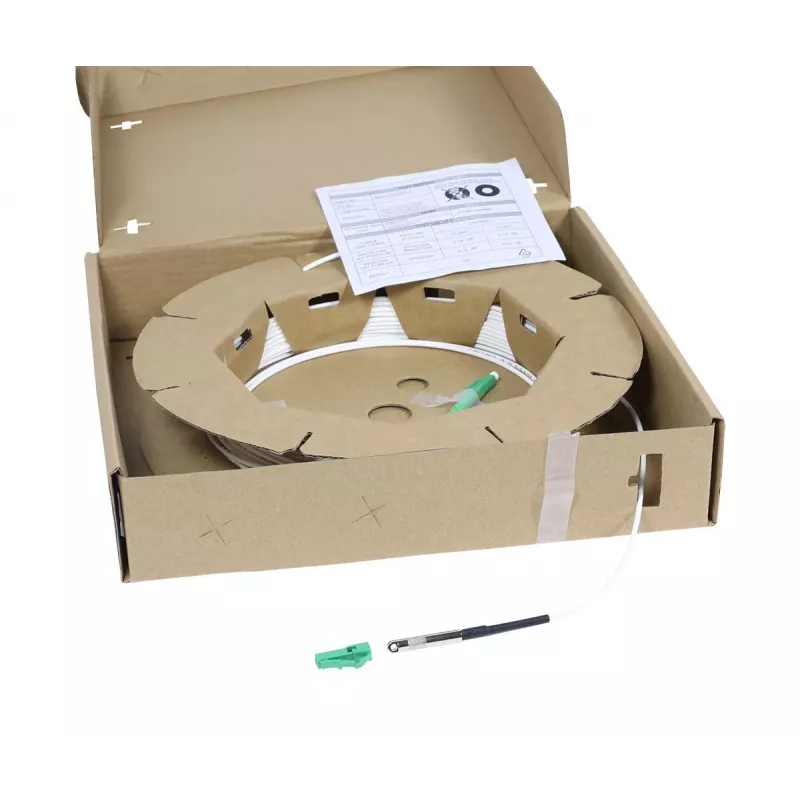

SYNERGY21 S218210 30m LC/APC naar LC/APC single-mode OS2 G.657.A2 glasvezel patchkabel, 9/125µm, 2,2mm, met trekdraad

For telecom technicians and data center engineers who need a reliable 30-meter single-mode fiber link, this SYNERGY21 patch cable provides a bend-insensitive OS2 connection with LC/APC connectors on both ends. The 2.2 mm outer diameter and integrated pulling aid simplify routing through conduits and cable trays in structured cabling installations.

Key specifications

• Fiber type: Single-mode 9/125 µm OS2
• ITU-T standard: G.657.A2 (bend-insensitive)
• Connectors: LC/APC to LC/APC (angled polish)
• Length: 30 m
• Outer diameter: 2.2 mm
• Fiber count: Simplex (1-fiber)
• Pulling aid: 1x integrated

Why choose it

The G.657.A2 fiber offers improved bend performance, reducing signal loss in tight installations. APC connectors minimize back reflection, making this cable suitable for high-speed networks and FTTx applications. The pulling aid speeds up installation in long runs.

Ideal use cases

• Fiber-to-the-home (FTTH) drop cables
• Data center interconnects
• Telecom central office patching
• Long-distance indoor links

Good to know

The cable supports wavelengths of 1310 nm and 1550 nm, covering standard single-mode transmission windows. Its compact 2.2 mm jacket balances durability and flexibility for indoor use.
