SYNERGY21 SC single-mode OS2 glasvezel pigtail, 9/125µm, G.657.A2, 2m, 12-pack, gekleurd S215686V1

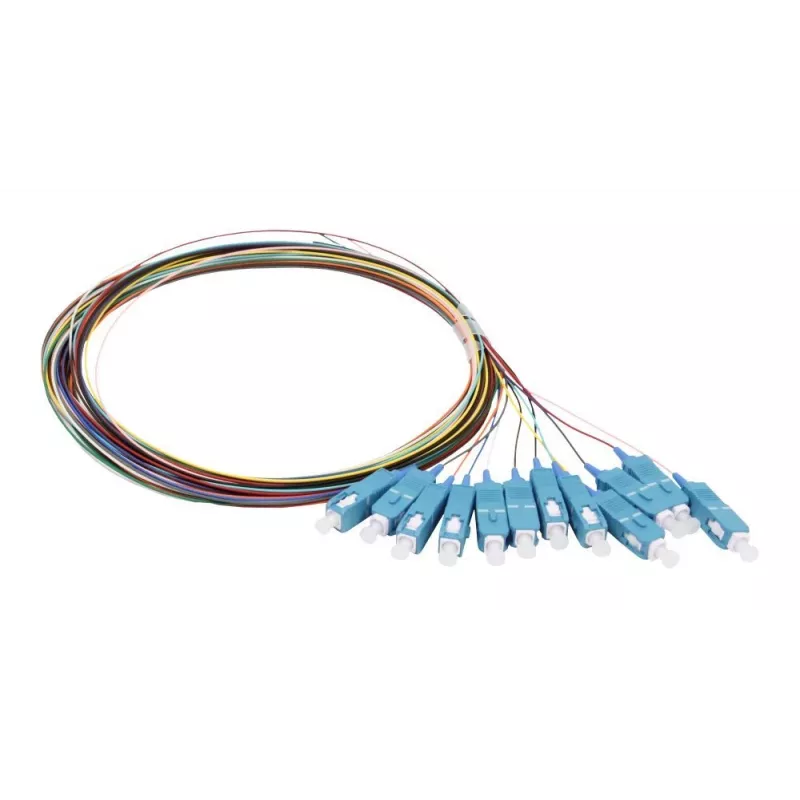

This 12-pack of coloured SC pigtails stands out by combining bend-insensitive G.657.A2 fibre with a 0.9 mm LSZH jacket, making it suitable for dense splice trays and tight routing in FTTx, data centre, and LAN environments. Each pigtail is 2 metres long and terminated with an SC/UPC connector on one end, leaving the other end unconnectorized for fusion splicing.

Highlights

• 12 pigtails in 12 different colours for easy circuit identification
• Single-mode OS2 fibre with 9/125 µm core/cladding
• ITU-T G.657.A2 bend-insensitive fibre with 5 mm minimum bend radius
• SC/UPC connector with typical insertion loss ≤ 0.3 dB and return loss ≥ 50 dB
• LSZH jacket, 0.9 mm diameter, suitable for indoor use

In daily use

The pigtails are ready for splicing into distribution frames, cassettes, or splice closures. The colour coding simplifies port mapping and reduces installation errors. The bend-insensitive fibre tolerates tight coiling without significant attenuation increase, which is practical in high-density fibre management systems.

Full specifications

• Product type: Fiber optic pigtail
• Fibre mode: Single-mode
• Fibre category: OS2
• Core/cladding diameter: 9/125 µm
• Connector type (end 1): SC
• Connector type (end 2): Unconnectorized (for splicing)
• Connector polish: UPC
• Fibre standard: ITU-T G.657.A2
• Pigtail length: 2 m
• Pack quantity: 12
• Colour coding: 12 different colours
• Insertion loss (typical): ≤ 0.3 dB
• Return loss (typical): ≥ 50 dB
• Jacket diameter: 0.9 mm
• Jacket material: LSZH
• Minimum bend radius: 5 mm
• Operating temperature: -20 °C to +70 °C
• Storage temperature: -40 °C to +85 °C

Final note

Supplied as a pack of 12 individually coloured pigtails, this set provides a practical solution for structured cabling projects where quick identification and reliable splicing are required.
