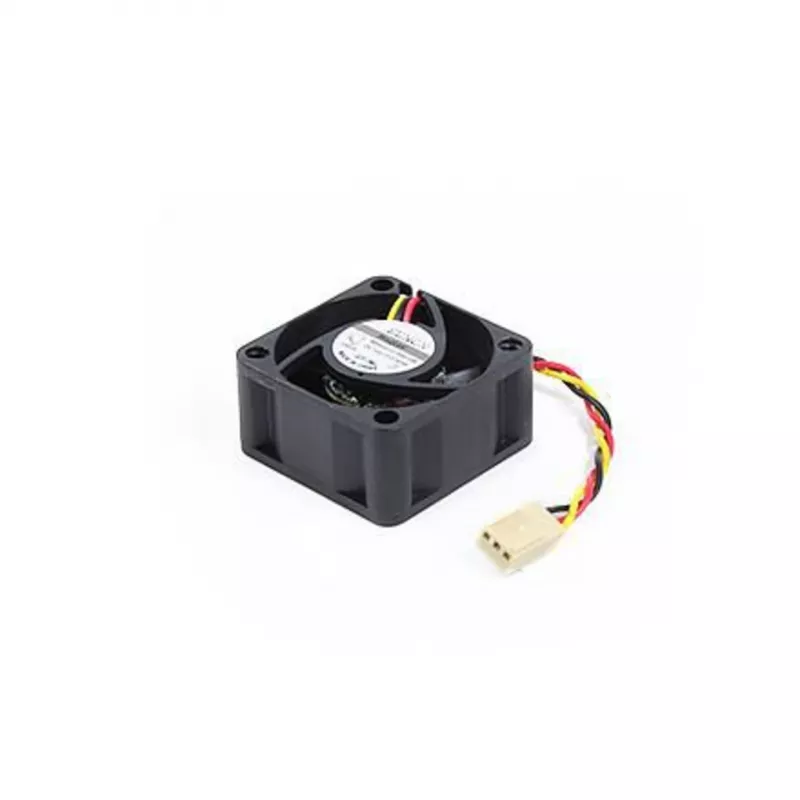

Synology Case Fan - 40 mm

This Synology Case Fan is a genuine replacement fan designed for select Synology DiskStation models. With a compact 40 mm size and 10 mm thickness, it ensures efficient cooling for your NAS enclosure. The fan features a sleeve bearing, 3-pin connector, and operates at 12V DC with a rated current of 0.08 A. It delivers an airflow of approximately 7 CFM at 5000 RPM while maintaining a low noise level of 22 dBA. The black plastic construction and 15 cm cable make it easy to install. With an MTTF of 30,000 hours, this fan provides reliable long-term performance.

Advantages

Genuine Synology replacement fan ensures compatibility and reliable cooling. Low noise operation at 22 dBA keeps your NAS quiet. Easy installation with standard 3-pin connector and 15 cm cable. Long lifespan with 30,000 hours MTTF.

Suitable for

• Synology DS115j, DS116, DS216j, DS218j, DS220j, DS223j
• Synology DS416j, DS418j, DS420j, DS423j
• Other Synology models requiring a 40 mm case fan

Key specifications

• Fan Type: System Fan / Case Fan
• Fan Size: 40 mm
• Fan Thickness: 10 mm
• Bearing Type: Sleeve Bearing
• Connector Type: 3-pin
• Rated Voltage: DC 12V
• Rated Current: 0.08 A
• Power Consumption: 0.96 W
• Rotational Speed: 5000 RPM
• Airflow: 7 CFM
• Noise Level: 22 dBA
• Life Expectancy (MTTF): 30,000 hours
• Material: Plastic
• Color: Black
• Cable Length: 15 cm

Recommendations

This fan is a direct replacement for the original fan in compatible Synology NAS models. Ensure your model is listed before purchasing. For optimal performance, install the fan with proper airflow direction.
