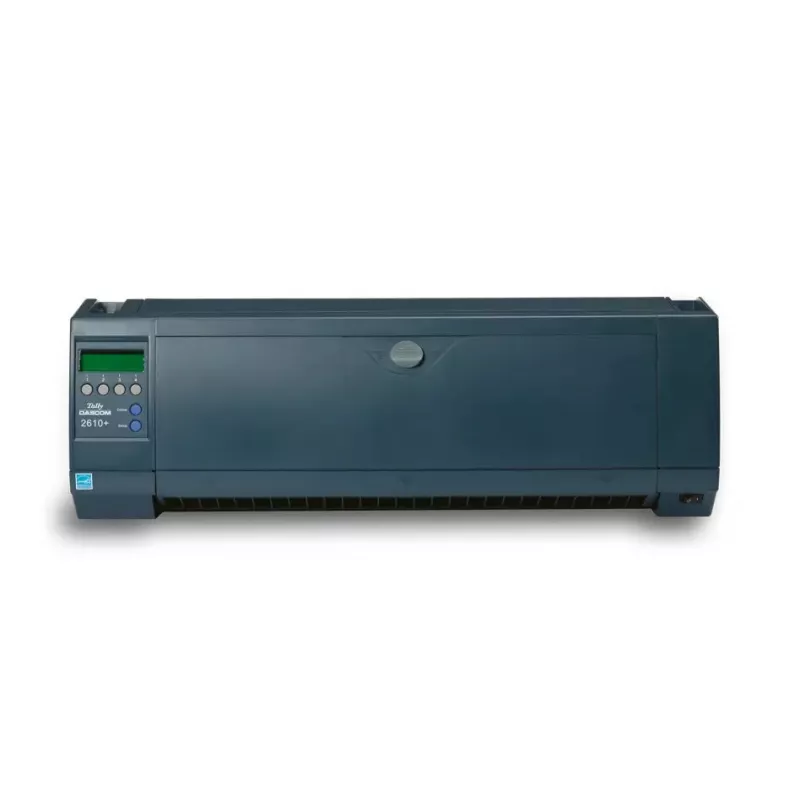

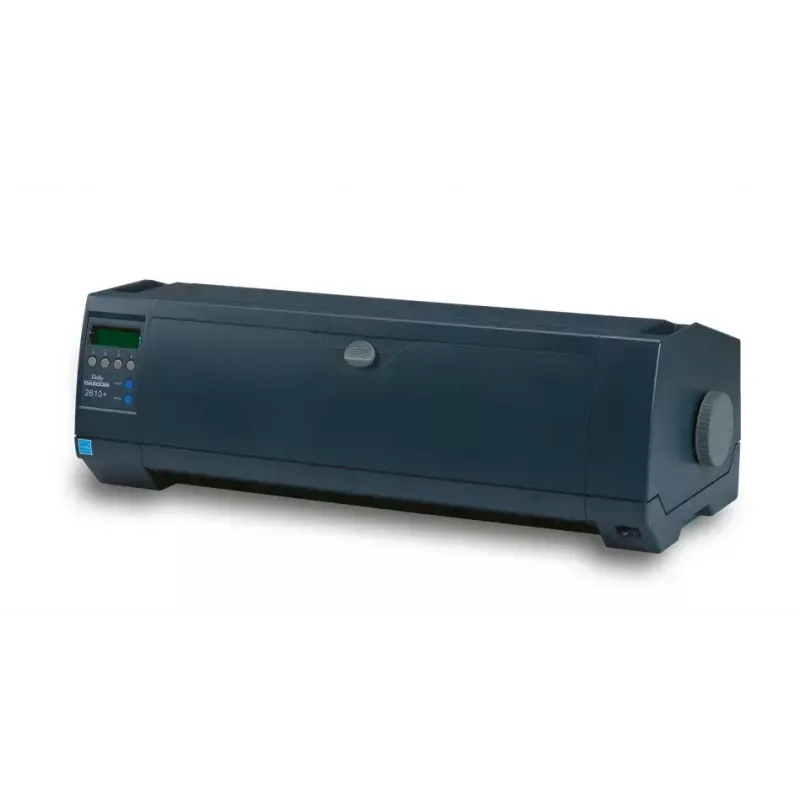

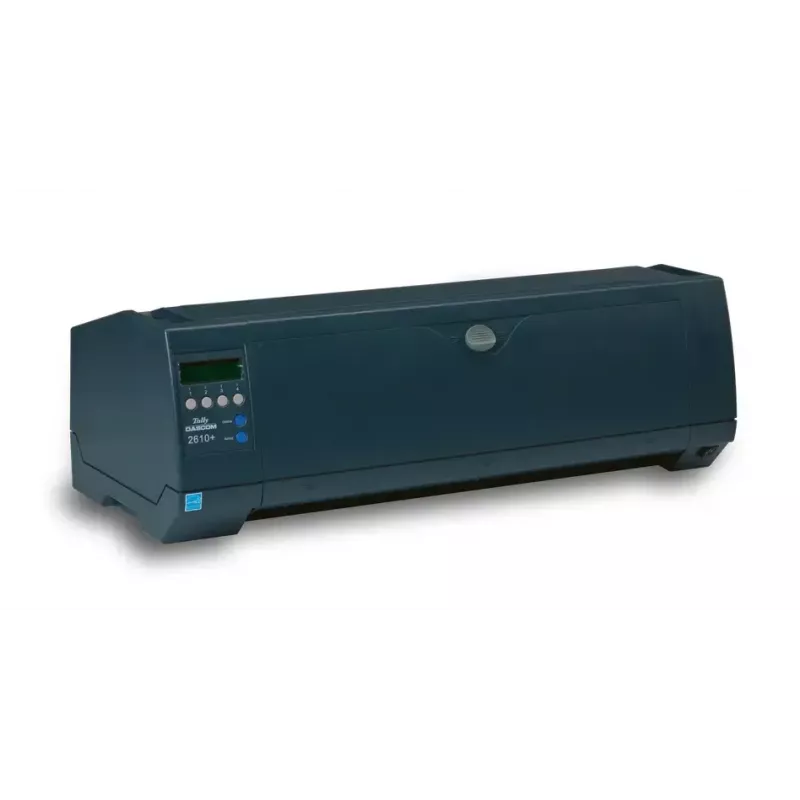

Naaldprinter Tally Dascom 28.834.0400 24-pins 360 x 360 dpi 683 cps Ethernet USB parallel

The DASCOM Europe 28.834.0400 dot matrix printer delivers reliable impact printing with up to 360 x 360 DPI resolution and a maximum speed of 683 characters per second (cps). Designed for continuous, high-volume printing tasks, the unit features a 24-pin print head rated for 500 million characters, a 256 KB buffer and a typical power consumption of 60 W. Standard connectivity includes Ethernet, Parallel and USB 2.0, and the printer operates at a sound pressure level of around 53 dB during printing.

Advantages

This dot matrix printer combines robust component life and stable throughput: the 24-pin head supports long-term operation and the specified MTBF of approximately 20,000 hours indicates service reliability. High-speed draft and near-letter-quality modes provide flexibility between fast continuous output and higher-resolution printing. Multiple standard interfaces (Ethernet, Parallel, USB 2.0) facilitate integration into existing network and local environments.

Suitable for

• Continuous multi-part form printing in logistics and warehousing
• High-volume transaction, invoice and receipt printing
• Environments requiring durable, low-maintenance impact printing
• Legacy systems that use parallel or serial printing interfaces

When it may not be suitable

This impact printer is not ideal for applications that require photo-quality or color printing; its strengths are monochrome, multipart and continuous-form output. If ultra-quiet operation or very high-resolution graphic printing are primary requirements, a laser or inkjet printer may be more appropriate.

Key specifications

• Maximum resolution: 360 x 360 DPI
• Maximum print speed: up to 683 cps (draft up to 513 cps)
• Print technology: 24‑pin dot matrix, bidirectional printing
• Print head durability: approximately 500 million characters
• Buffer memory: 256 KB
• Sound pressure level (printing): 53 dB
• Mean time between failures (MTBF): around 20,000 hours
• Typical power consumption: 60 W; AC input: 100–240 V, 50–60 Hz

How to use

Install the printer on a stable surface and connect power and the chosen data interface (Ethernet, Parallel or USB 2.0). Load continuous or single-sheet media according to the feed instructions in the user manual, select the desired print mode (draft or higher-resolution) in the driver or printer settings, and start printing from your host application. Routine checks include confirming ribbon condition and paper alignment to maintain print quality and avoid jams.

What to consider before purchase

• Required print speed and resolution for your documents (compare draft vs higher-quality modes)
• Need for multipart forms or continuous stationery support
• Interface compatibility with existing systems (Ethernet, Parallel, USB 2.0)
• Desired service life and maintenance plan given print head durability and MTBF
• Acoustic environment tolerance for a device operating around 53 dB

Recommendations

For consistent output, use approved ribbons and correctly sized continuous or single-sheet forms, keep the print head and paper path free of debris, and schedule periodic inspections of the ribbon and platen. Choose draft mode for bulk transactional output and higher-resolution modes when better legibility is required.
