Techly patchpanel UTP 16 poorten RJ45 Cat.6 I-PP 16-RU-C6T

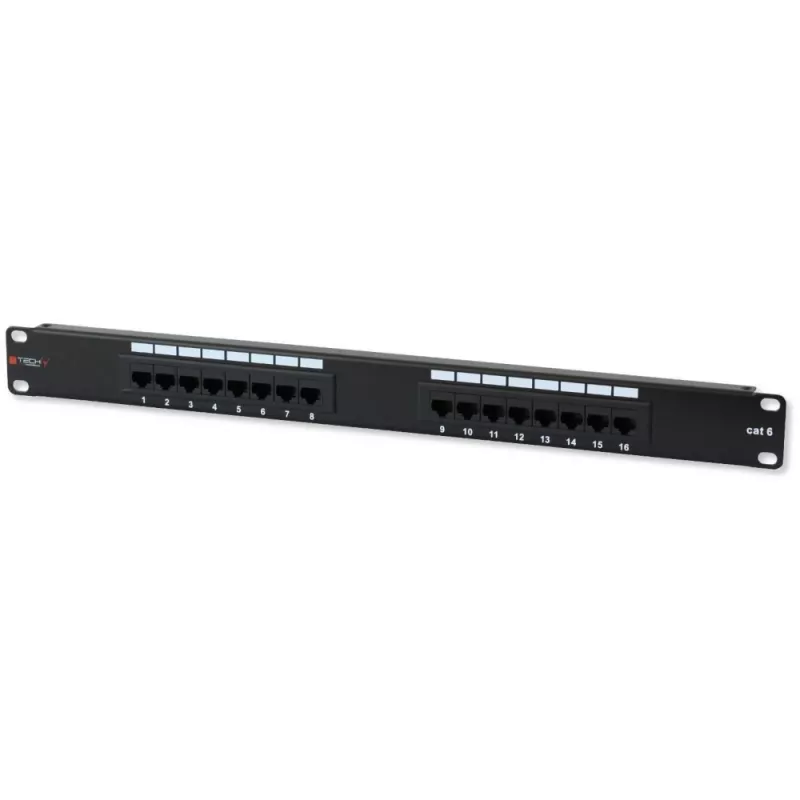

Patch Panel UTP 16 Ports RJ45 Cat.6 Techly I-PP 16-RU-C6T is a 19" rackmount patch panel with 16 RJ45 ports for unshielded twisted-pair (UTP) Cat6 cabling. It provides solid termination for copper cabling and gold-plated contacts (minimum 50 micro-inches, 3 mm) and supports both rigid and flexible cables from 22 to 26 AWG. The panel is compatible with 110 and Krone inserters and meets Cat6 performance requirements according to ANSI/TIA/EIA-568-B.2-1 for Ethernet, Fast Ethernet and Gigabit Ethernet applications.

Advantages

The Techly Cat.6 16-port patch panel ensures reliable RJ45 connections with gold contacts and robust terminations suitable for high-speed networking. It is compliant with common Ethernet standards (IEEE 802.3, 802.3u, 802.3ab) and is RoHS and WEEE certified. Compact 19" rackmount dimensions and support for a range of cable gauges (22–26 AWG) make it compatible with typical network installations.

Suitable for

• 10Base-T Ethernet installations
• 100Base-TX Fast Ethernet networks
• 1000Base-T Gigabit Ethernet deployments
• Structured cabling in server rooms, data closets and small to medium racks

Key specifications

• Ports quantity: 16 RJ45 ports
• Cable type: UTP Cat6 (unshielded twisted pair)
• Contact finish: gold, minimum 50 micro-inches (3 mm)
• Cable compatibility: solid and stranded 22–26 AWG
• Standards: ANSI/TIA/EIA-568-B.2-1; IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
• Mounting: 19" rackmount; dimensions 482 x 43 x 48 mm
• Operating temperature: -40 to 68 °C
• Certifications: RoHS, WEEE

How to use

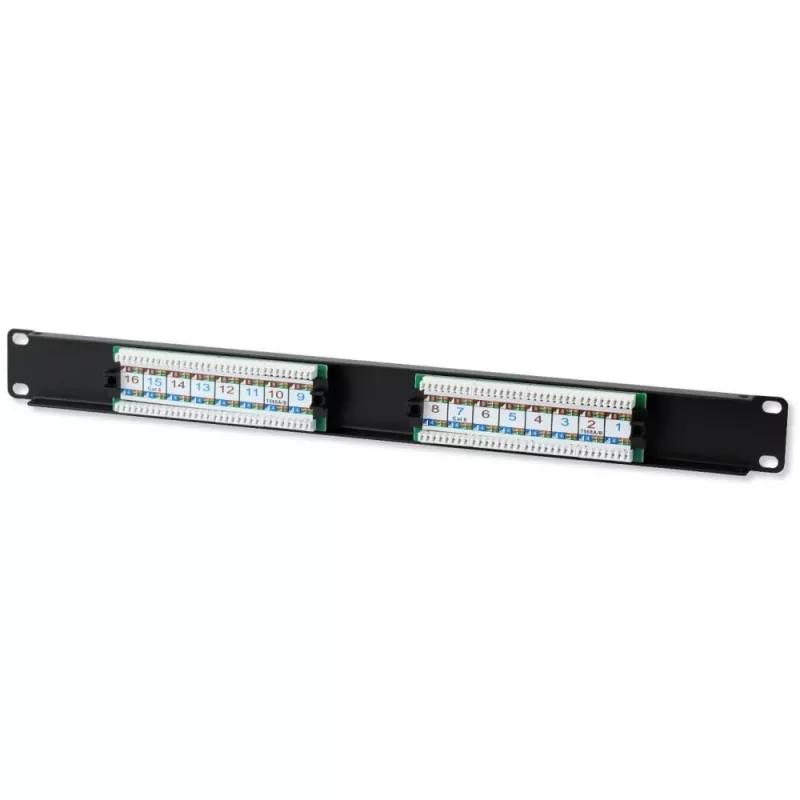

Mount the patch panel into a standard 19" rack using the supplied screws, respecting the horizontal and vertical hole spacing. Terminate each Cat6 UTP cable pair to the corresponding IDC/keystone-style termination following the colour code specified by ANSI/TIA/EIA-568-B.2-1. Use a 110 or Krone inserter tool for reliable terminations. After termination, connect network devices to the front RJ45 ports with patch cords to establish Ethernet, Fast Ethernet or Gigabit Ethernet links.

Recommendations

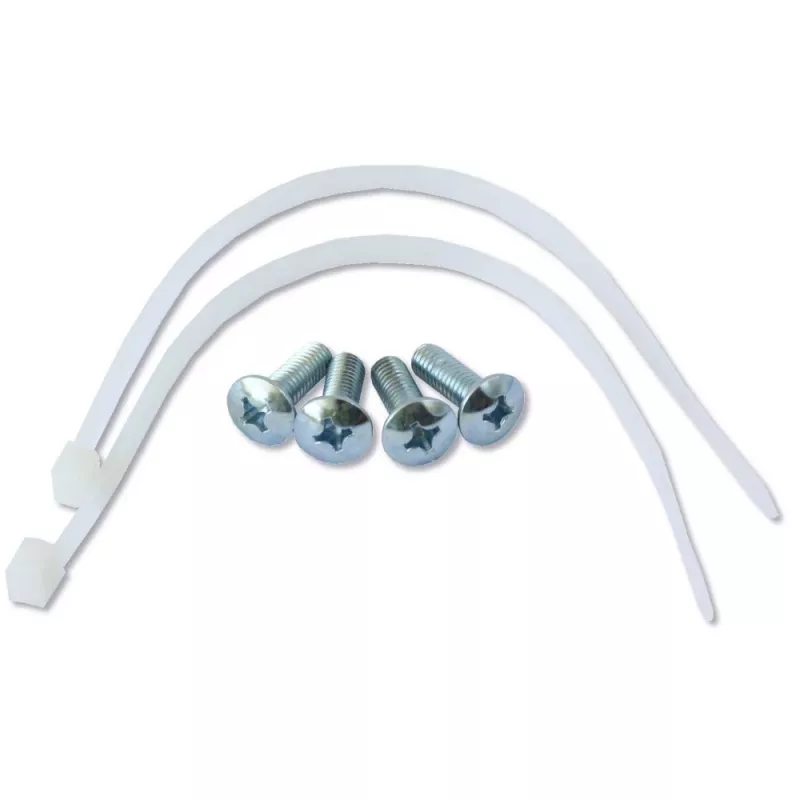

For best performance, use Cat6-rated patch cords and keep cable runs within recommended length limits. Ensure proper cable management with the included nylon ties and maintain bend radius limits for Cat6 cable. Verify terminations with a network cable tester after installation.
