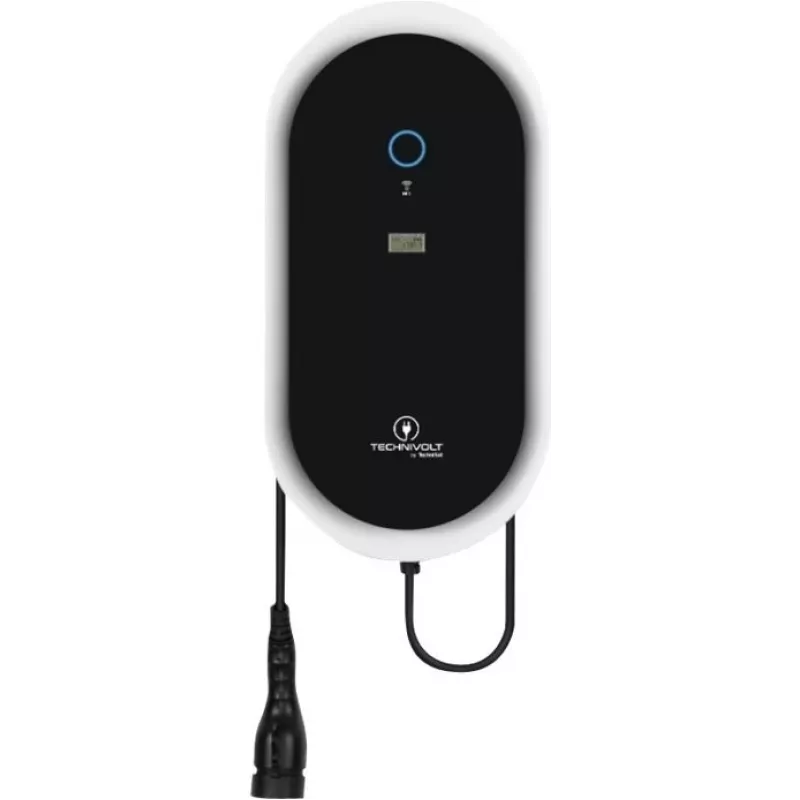

TechniSat TECHNIVOLT 1100 SMAR wallbox 11kW met 5m Type 2 laadkabel 0000/6301

Charging an electric vehicle at home can be slow and inconvenient with a standard outlet. The TechniSat TECHNIVOLT 1100 SMAR Wallbox delivers up to 11 kW of power, cutting charging times dramatically and ensuring your EV is ready when you are. Its fixed 5-meter Type 2 cable reaches your car with ease, while smart connectivity puts control in your hands.

Who is it for

This wallbox is ideal for EV owners who want fast, reliable home charging with smart features. It suits households with a 3-phase 400 V supply and drivers who value remote monitoring and scheduling via smartphone.

Main features

• 11 kW maximum charging power for rapid home charging
• Fixed Type 2 charging cable, 5 meters long
• Integrated 6 mA DC fault current detection for safety
• Wi-Fi and Bluetooth connectivity for app control
• RFID authentication and smartphone app for access management
• OCPP 1.6 J communication protocol for smart charging integration
• Integrated energy meter for consumption tracking
• Robust IP54 and IK08 rated housing for indoor/outdoor use

Specifications

• Max charging power: 11 kW
• Charging connector: Type 2 (fixed cable)
• Cable length: 5 m
• Input voltage: 400 V AC (3-phase)
• Max current: 16 A per phase
• Number of phases: 3
• Protection class: IP54
• Impact resistance: IK08
• DC fault current detection: 6 mA integrated
• RCD type: Type A
• Connectivity: WLAN (Wi-Fi), Bluetooth
• Authentication: RFID, smartphone app
• Communication protocol: OCPP 1.6 J
• Operating temperature: -25°C to +50°C
• Housing material: Polycarbonate (PC)
• Mounting: Wall-mounted
• Energy meter: Integrated
• Status indicator: LED
• Colour: Anthracite

Tips

For optimal performance, have a qualified electrician install the wallbox on a dedicated 3-phase circuit. Use the smartphone app to schedule charging during off-peak hours and monitor energy consumption. The RFID function is perfect for shared parking areas—issue cards to family members or tenants for controlled access.
