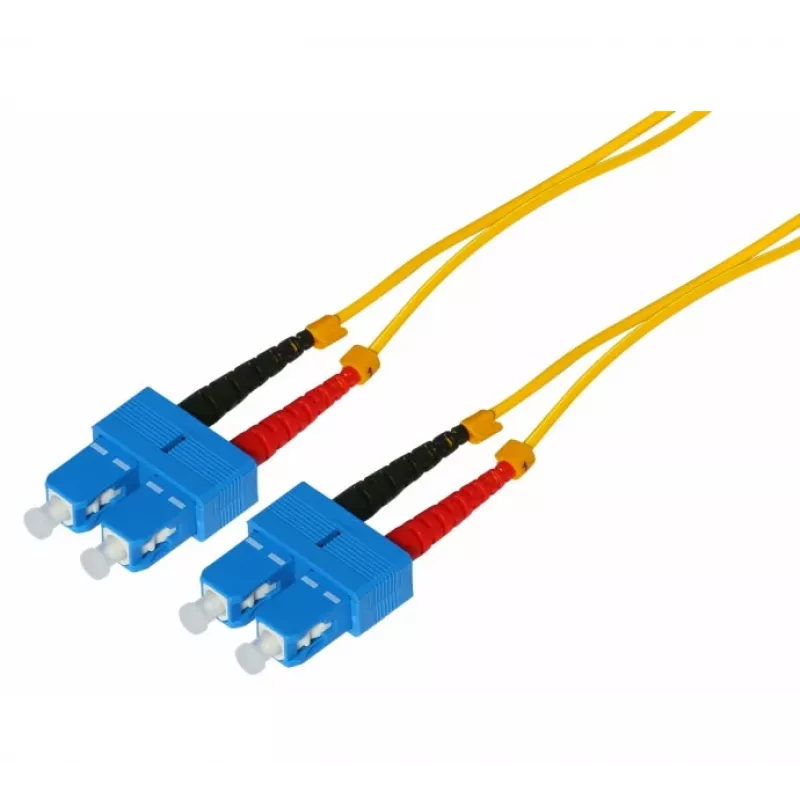

Tecline glasvezel-patchkabel HD, 9/125 µm, singlemode, OS2, SC duplex naar SC duplex, geel, 15 m 799SS15

This Tecline HD fibre optic patch cable is a singlemode OS2 cable with SC duplex connectors on both ends, offering a reliable 15-metre link for high-speed optical networks. Its yellow LSZH jacket and UPC-polished zirconia ferrules ensure low insertion loss and stable performance at 1310 nm and 1550 nm.

Highlights

• Singlemode OS2 fibre (9/125 µm) for long-distance, high-bandwidth transmission
• SC duplex to SC duplex connectors with UPC polish for low back reflection
• 15 m length with LSZH yellow jacket for safety and easy identification
• Low insertion loss ≤ 0.3 dB and high return loss ≥ 50 dB

In daily use

Ideal for patching between fibre optic patch panels, switches, and media converters in data centres, enterprise networks, and telecommunication rooms. The duplex design supports bidirectional communication over a single cable, and the LSZH jacket reduces toxic smoke in case of fire.

Full specifications

• Fibre type: Singlemode OS2 (ITU-T G.652.D)
• Core/cladding diameter: 9/125 µm
• Connector type: SC Duplex to SC Duplex
• Cable length: 15.0 m
• Number of fibres: 2
• Jacket colour: Yellow
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Connector polish: UPC (Ultra Physical Contact)
• Insertion loss (typical): ≤ 0.3 dB
• Return loss (typical): ≥ 50 dB
• Operating wavelengths: 1310 nm, 1550 nm
• Attenuation @ 1310 nm: ≤ 0.35 dB/km
• Attenuation @ 1550 nm: ≤ 0.25 dB/km
• Cable diameter: 3.0 mm
• Ferrule material: Zirconia ceramic
• Operating temperature: -20°C to +70°C

Final note

A dependable, high-quality patch cable for professional fibre optic installations where performance and safety matter.
