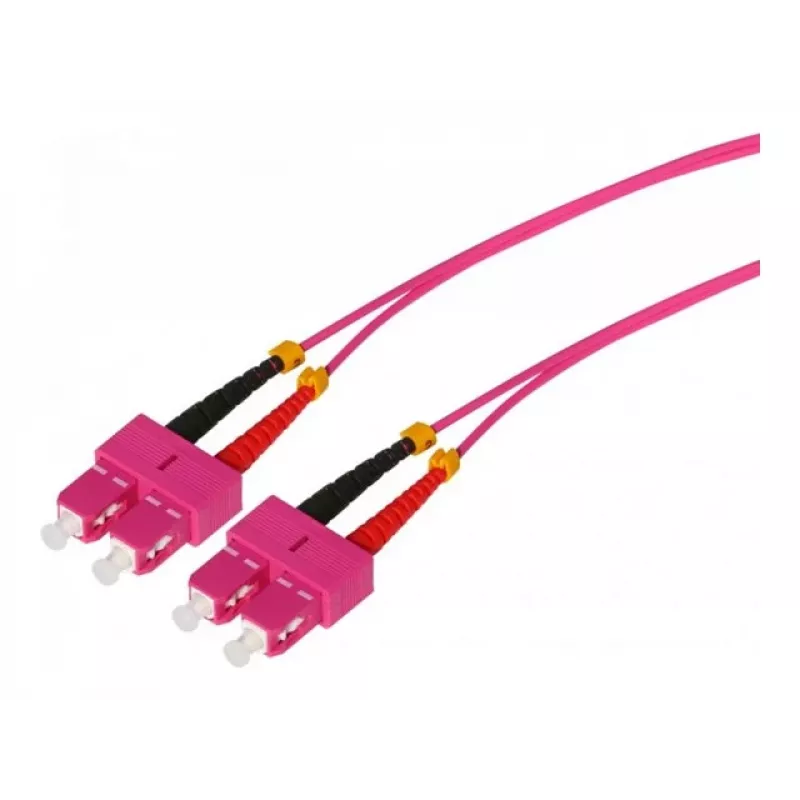

Tecline HD LWL-patchkabel, 50/125 µm, multimode, OM4, SC duplex naar SC duplex, erika violet, 3,0 m (798SS03)

In high-density fiber optic installations, reliable connections and minimal signal loss are critical. This Tecline HD patch cable with OM4 multimode fiber and SC duplex connectors ensures high-performance data transmission over short to medium distances, making it ideal for data centers, enterprise networks, and telecommunication rooms.

Who is it for

Network engineers and IT professionals who need a dependable, low-loss fiber optic link for 10G, 40G, and 100G Ethernet applications. Suitable for patching between patch panels, switches, and transceivers in structured cabling systems.

Main features

• 50/125 µm multimode fiber with OM4 grade for high bandwidth
• SC duplex connectors on both ends for secure, polarized connections
• Erika violet jacket for easy identification and organization
• Low insertion loss (< 0.3 dB) and high return loss (> 30 dB)
• LSZH jacket material for low smoke and halogen-free safety
• 3.0 m length, ideal for rack-to-rack or intra-rack connections

Specifications

• Cable type: Fiber optic patch cable
• Fiber type: Multimode
• Fiber grade: OM4
• Core diameter: 50 µm
• Cladding diameter: 125 µm
• Connector A: SC Duplex
• Connector B: SC Duplex
• Cable length: 3.0 m
• Jacket color: Erika Violet
• Number of fibers: 2
• Connector polarity: A-B (cross-over)
• Insertion loss (typical): < 0.3 dB
• Return loss (typical): > 30 dB
• Bandwidth at 850 nm: 4700 MHz·km
• Bandwidth at 1300 nm: 500 MHz·km
• Jacket material: LSZH
• Operating temperature: -20°C to +70°C
• Minimum bend radius: 30 mm
• Standards compliance: TIA/EIA-568-C.3, IEC 60793-2-10 Type A1a.3

Tips

When routing this cable, maintain a bend radius of at least 30 mm to avoid signal degradation. Use Erika violet jackets to easily distinguish OM4 multimode cables from other fiber types in your infrastructure.
