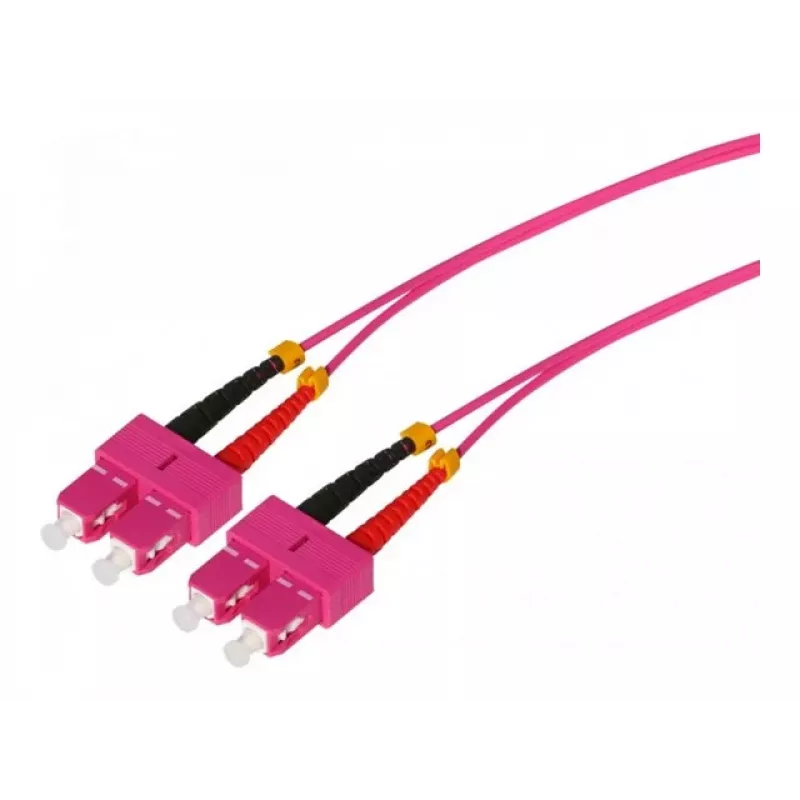

Tecline HD OM4 multimode glasvezel-patchkabel, SC duplex naar SC duplex, 50/125 µm, erika violet, 2 m 798SS02

OM4 multimode fiber supports 100 Gigabit Ethernet up to 150 meters, making this Tecline HD patch cable a high-performance link for data centers and enterprise networks.

Overview

The Tecline HD fiber optic patch cable features SC Duplex connectors on both ends and a 50/125 µm multimode core, optimized for OM4 performance. The 2-meter length provides flexibility in rack installations, while the Erika Violet jacket allows for easy identification in dense cabling environments.

What stands out

• OM4 fiber supports 10G, 40G, and 100G Ethernet with extended reach.
• SC Duplex connectors ensure secure, keyed connections.
• Erika Violet jacket color aids in visual identification.

Technical details

• Fiber type: Multimode OM4
• Core/cladding diameter: 50/125 µm
• Connectors: SC Duplex to SC Duplex
• Cable length: 2.0 m
• Supported wavelengths: 850 nm, 1300 nm
• Maximum reach: 550 m at 10 Gbps (850 nm), 150 m at 40/100 Gbps (850 nm)

Our verdict

A reliable OM4 patch cable for high-speed multimode links, with the convenience of SC Duplex connectors and a distinct violet jacket.
