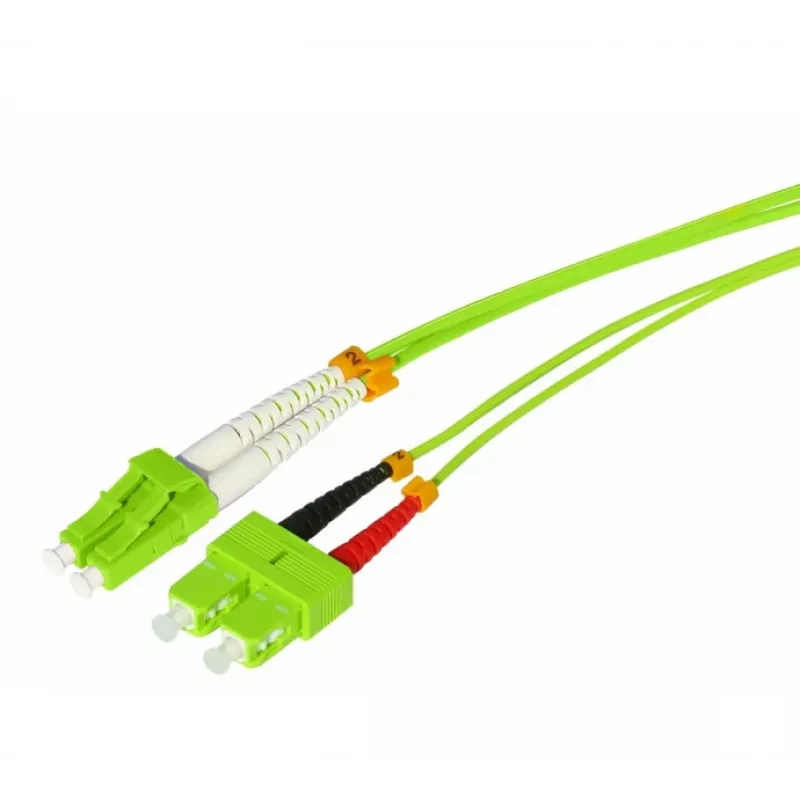

Tecline HD OM5 glasvezel patchkabel, LC naar SC Duplex, 50/125 µm Multimode, limoengroen, 7,5 m 796LS07

Fibre optic patch cable with OM5 wideband multimode fibre, supporting data rates up to 400 Gbps. The 50/125 µm core/cladding diameter and lime green jacket ensure high-speed transmission in data centres and enterprise networks.

Advantages

OM5 fibre provides extended reach for short-wavelength division multiplexing (SWDM), enabling higher bandwidth over existing multimode infrastructure. The LC and SC duplex connectors offer secure, low-loss connections for reliable performance.

Suitable for

• High-speed data networks
• Data centres
• Storage area networks (SANs)
• Local area networks (LANs)

Key specifications

• Fibre type: OM5 multimode, 50/125 µm
• Connectors: LC duplex to SC duplex
• Length: 7.5 m
• Jacket colour: lime green
• Effective modal bandwidth: 4700 MHz·km @ 850 nm, 2470 MHz·km @ 953 nm

Recommendations

Use this cable to connect network equipment with LC and SC ports in high-density environments. Its OM5 rating ensures compatibility with current and future multimode transceivers.
