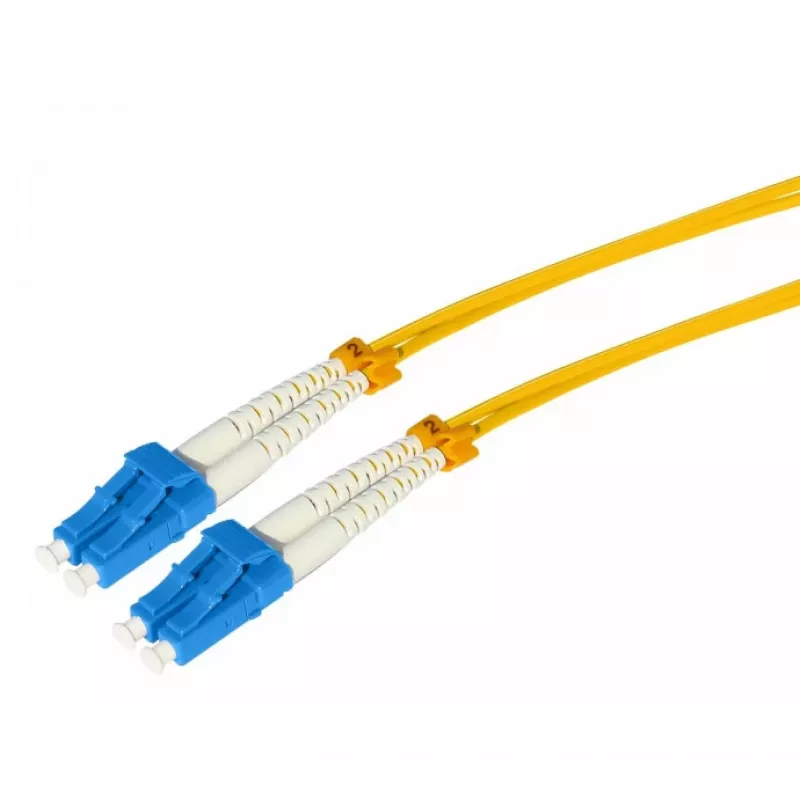

Tecline HD singlemode OS2 LC duplex naar LC duplex glasvezel-patchkabel, 9/125 µm, geel, 5 m 799LL05

Data center technicians and network engineers rely on this Tecline HD fiber optic patch cable for high-speed backbone connections between switches, routers, and patch panels. The 5-meter yellow duplex cable uses 9/125 µm singlemode OS2 fiber with LC Duplex connectors on both ends, delivering low-loss transmission for long-distance links up to 10 km and beyond.

Key specifications

• Fiber type: Singlemode OS2, 9/125 µm
• Connectors: LC Duplex to LC Duplex
• Length: 5 m
• Jacket colour: Yellow
• Complies with ITU-T G.652.D

Why choose it

The OS2 fiber supports wavelengths from 1310 nm to 1550 nm, making it suitable for 1G, 10G, 25G, 40G, and 100G Ethernet applications. The duplex construction allows bidirectional communication over two fibers, and the yellow jacket provides easy identification of singlemode cabling in dense racks.

Ideal use cases

• Data center interconnects and backbone cabling
• Telecommunications central offices
• Enterprise LAN and SAN links
• High-speed server and storage connections

Good to know

The cable is factory-terminated and tested for insertion loss and return loss, ensuring consistent performance. LC Duplex connectors feature a latch for secure mating and are compatible with standard SFP, SFP+, and QSFP transceivers.
