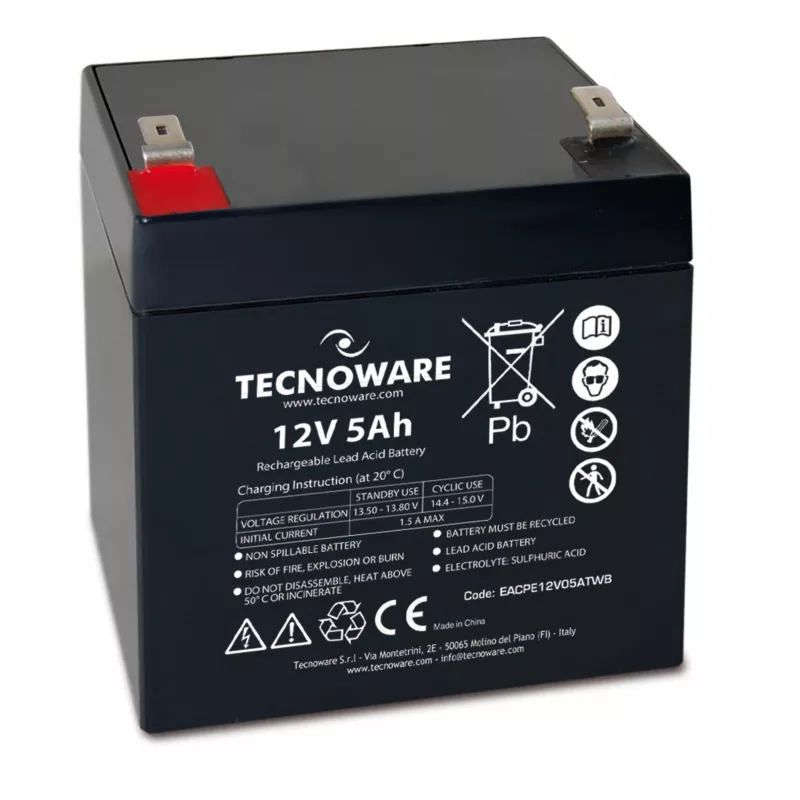

TECNOWARE Power Battery 12V 5Ah Faston 6,3mm

The TECNOWARE Power Battery is a high-quality sealed lead acid (SLA) battery designed for reliable backup power in various applications. With a nominal voltage of 12V and a capacity of 5Ah, this VRLA AGM battery delivers consistent performance and long service life. The Faston F2 (6.3mm) terminals ensure easy and secure connections.

Advantages

Maintenance-free operation, low self-discharge rate (less than 3% per month at 20°C), and wide operating temperature range make this battery ideal for both standby and cyclic use. The ABS case provides durability and safety.

Suitable for

• UPS Systems
• Alarm Systems
• Emergency Lighting
• Security Systems

Key specifications

• Battery Type: Sealed Lead Acid (SLA) VRLA AGM
• Nominal Voltage: 12 V
• Nominal Capacity: 5 Ah (C20)
• Terminal Type: Faston F2 (6.3mm)
• Design Life: 3-5 years (Eurobat Classification)
• Internal Resistance: Approx. 35 mΩ
• Max. Discharge Current: 75 A (5 sec)
• Max. Charge Current: 1.5 A
• Float Charge Voltage: 13.5 - 13.8 VDC
• Cycle Use Voltage: 14.4 - 15.0 VDC
• Operating Temperature Range (Discharge): -15°C to 50°C
• Operating Temperature Range (Charge): -15°C to 40°C
• Self-Discharge Rate: Less than 3% per month at 20°C
• Case Material: ABS
• Maintenance: Maintenance-free
• Orientation: Operates in any position (except inverted)
• Certifications: CE, ISO9001

Recommendations

For optimal performance, use with compatible chargers and avoid deep discharges. Store in a cool, dry place when not in use.
