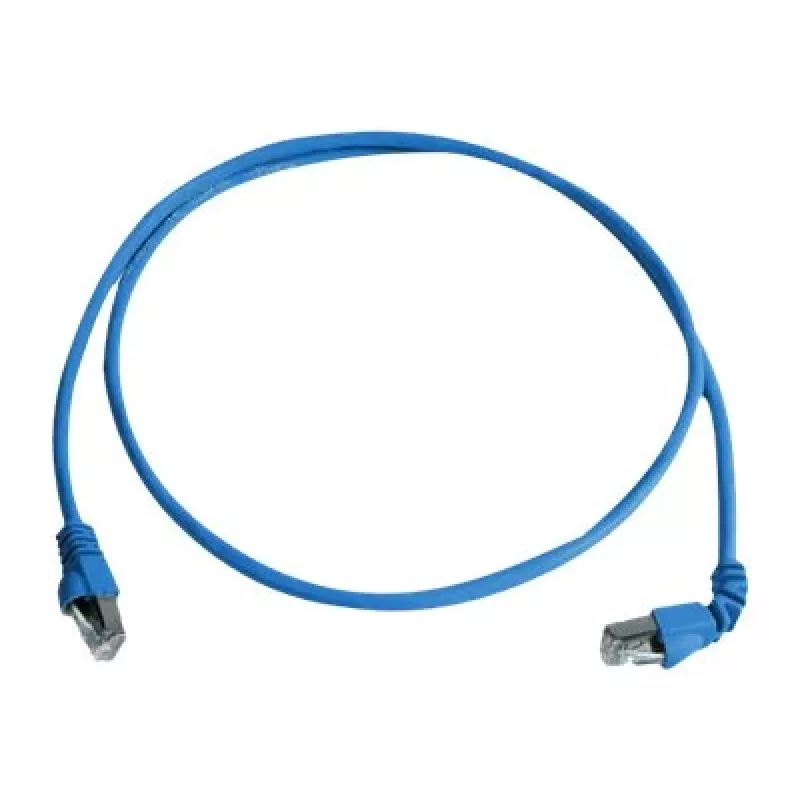

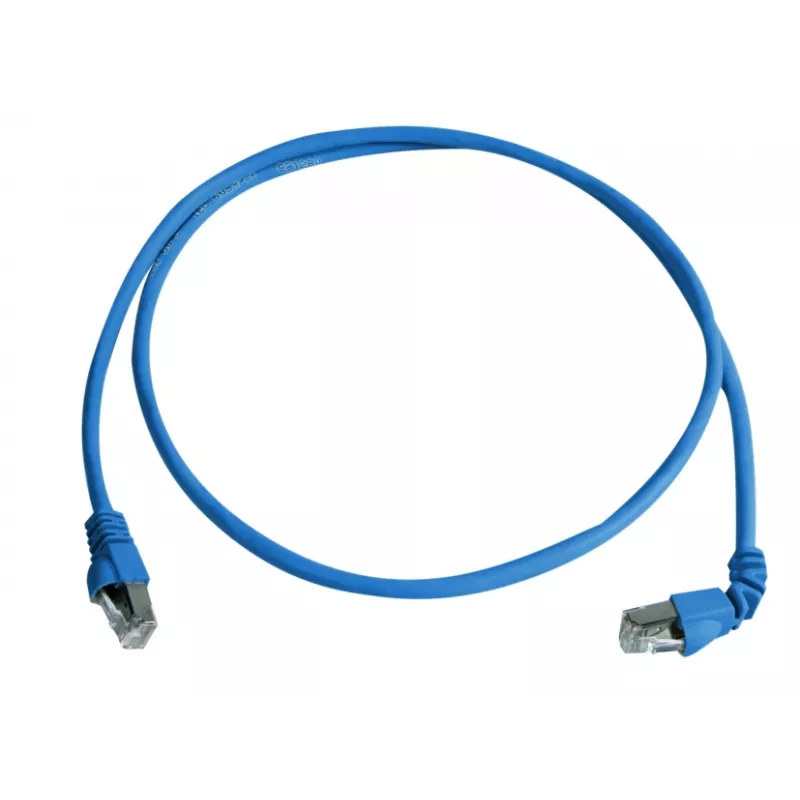

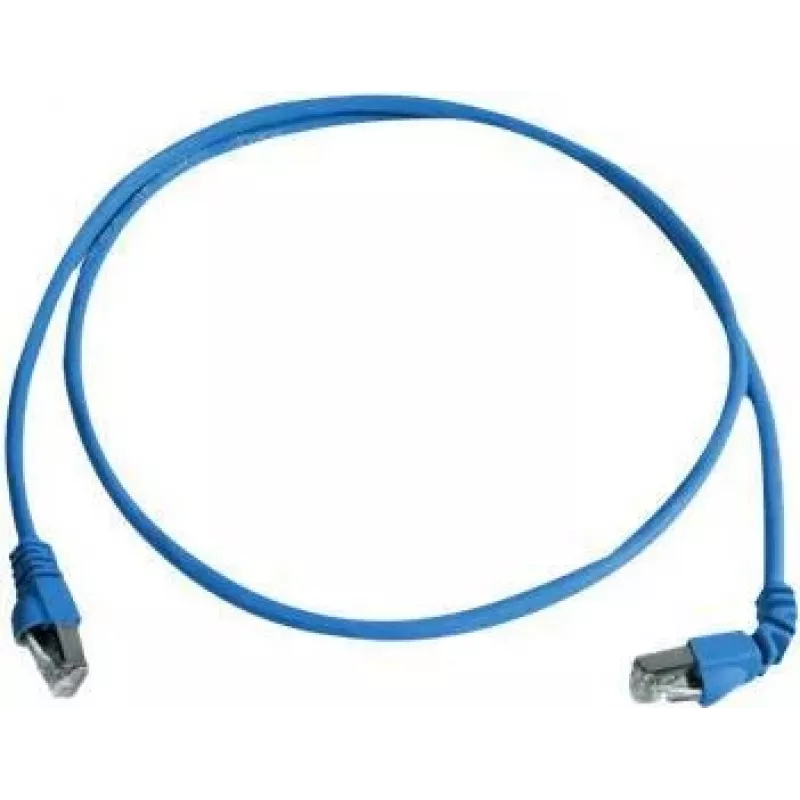

Telegärtner 100008016 CAT 6a S/FTP-patchkabel, RJ45, 0,5 m, blauw, LSZH, 10 Gbps

This Telegärtner CAT 6a patch cable delivers 10 Gigabit Ethernet performance over a 0.5 m length, with S/FTP shielding for superior noise immunity. The blue LSZH jacket is flame retardant and halogen-free, and the molded boot protects the cable from bending stress.

Overview

The Telegärtner 100008016 is a high-quality RJ45 patch cable designed for demanding network environments. It features CAT 6a specification, supporting data transfer rates up to 10 Gbps and a bandwidth of 500 MHz. The cable is equipped with gold-plated contacts and follows the TIA/EIA 568B wiring scheme.

What stands out

• S/FTP shielding (PiMF) for excellent protection against electromagnetic interference
• LSZH jacket: low smoke, zero halogen, flame retardant
• Supports Power over Ethernet up to 4PPoE (IEEE 802.3af/at/bt)
• Molded boot for strain relief and bend protection

Technical details

• Category: CAT 6a
• Shielding: S/FTP (PiMF)
• Length: 0.5 m
• Color: Blue
• Connectors: RJ45 to RJ45, gold-plated contacts
• Conductor: Copper, AWG 26/7 stranded
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Data transfer rate: 10 Gbps
• Bandwidth: 500 MHz
• PoE support: PoE, PoE+, 4PPoE
• Standards: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2
• Operating temperature: -20°C to +60°C

Our verdict

A reliable, high-performance patch cable for 10G networks, with safety features like LSZH and robust shielding. Ideal for data centers and office environments.
