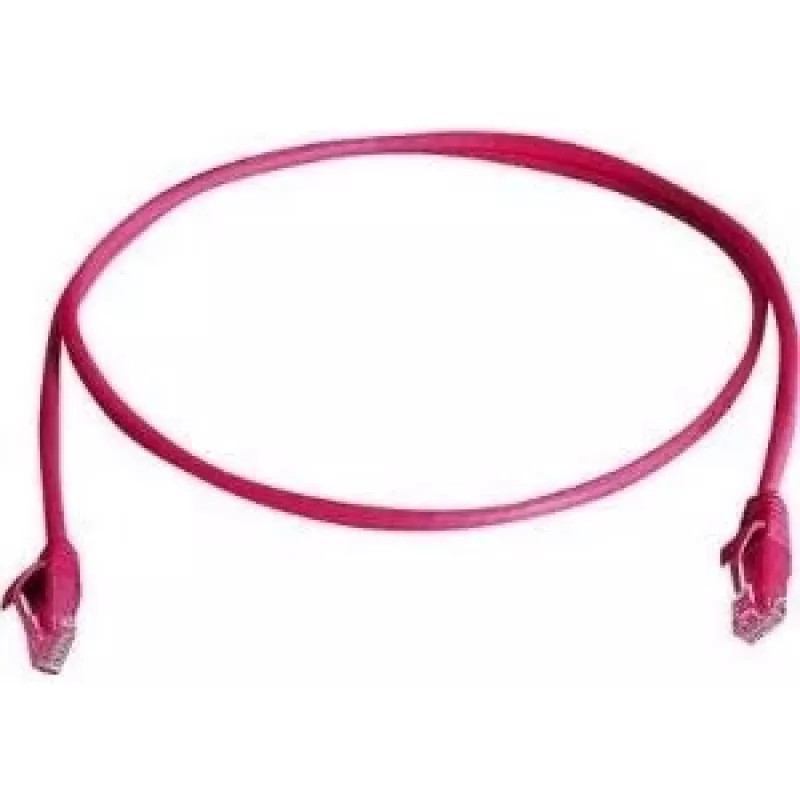

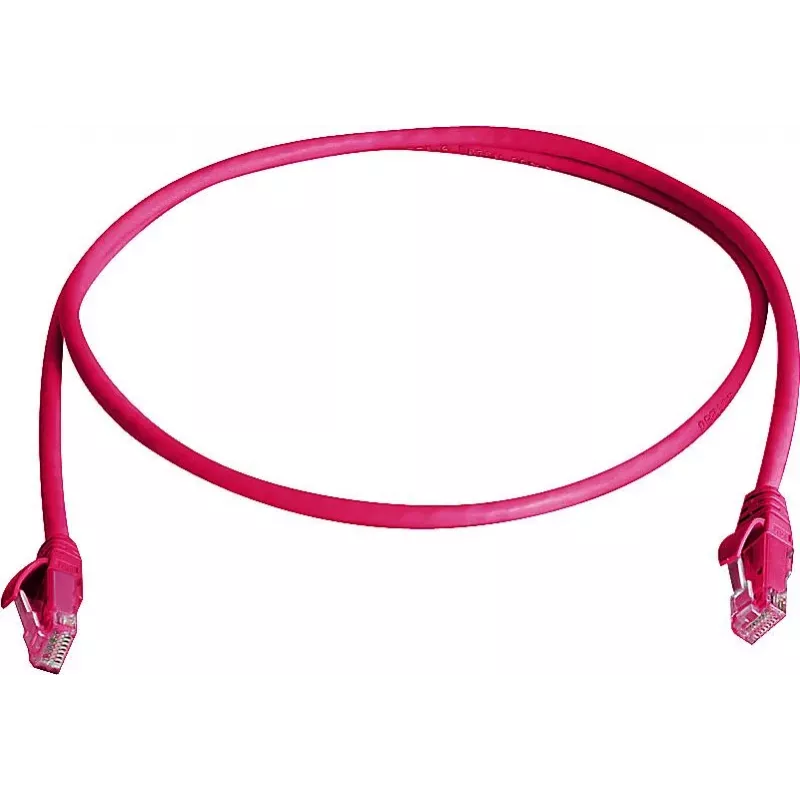

TELEGÄRTNER 100008898 CAT 6 RJ45-patchkabel, 7,5 m, rood, LSZH, U/UTP, vlamvertragend

Network installations in public buildings or offices often require cables that will not fuel a fire or emit dense smoke. This TELEGÄRTNER patch cable combines CAT 6 performance with a flame-retardant, halogen-free jacket, making it suitable for environments where fire safety is a priority.

Who is it for

IT administrators, electricians, and system integrators who need a reliable 7.5 m connection between patch panels, switches, and end devices in areas with strict fire regulations.

Main features

• CAT 6 performance with up to 250 MHz bandwidth and 10 Gbit/s for short distances
• Flame-retardant LSZH (Low Smoke Zero Halogen) jacket reduces toxic smoke and corrosive gases in case of fire
• Molded kink protection boot on both RJ45 connectors prevents cable damage at the strain relief
• Stranded copper conductors (AWG 26/7) provide flexibility for easy routing
• Unshielded U/UTP construction for standard office environments

Specifications

• Cable length: 7.5 m
• Colour: Red
• Cable standard: CAT 6
• Cable shielding: U/UTP
• Connector type: RJ45 (8P8C) on both ends
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Flame retardant: Yes
• Halogen free: Yes
• Conductor material: Copper
• Conductor gauge: AWG 26/7 (stranded)
• Number of pairs: 4
• Wiring standard: TIA/EIA-568B
• Bandwidth: 250 MHz
• Data transfer rate: Up to 10 Gbit/s (10GBASE-T for short distances)
• Bend protection: Yes (molded boot)
• Operating temperature range: -20°C to +60°C

Tips

For best performance, avoid sharp bends and keep the cable away from sources of electromagnetic interference. The LSZH jacket is less flexible than PVC, so plan your cable routing with slightly wider bend radii.
