Telegärtner 7/16 DIN bus naar N bus coaxiale adapter J01122C0011

With a passive intermodulation of ≤ -160 dBc at 2 x 20 W, this Telegärtner coaxial adapter ensures exceptionally clean signal transmission in demanding RF environments. The J01122C0011 connects a 7/16 DIN female jack to an N female jack, both with 50 Ω impedance, making it a reliable interconnect for base stations, test setups, and broadcast systems.

Overview

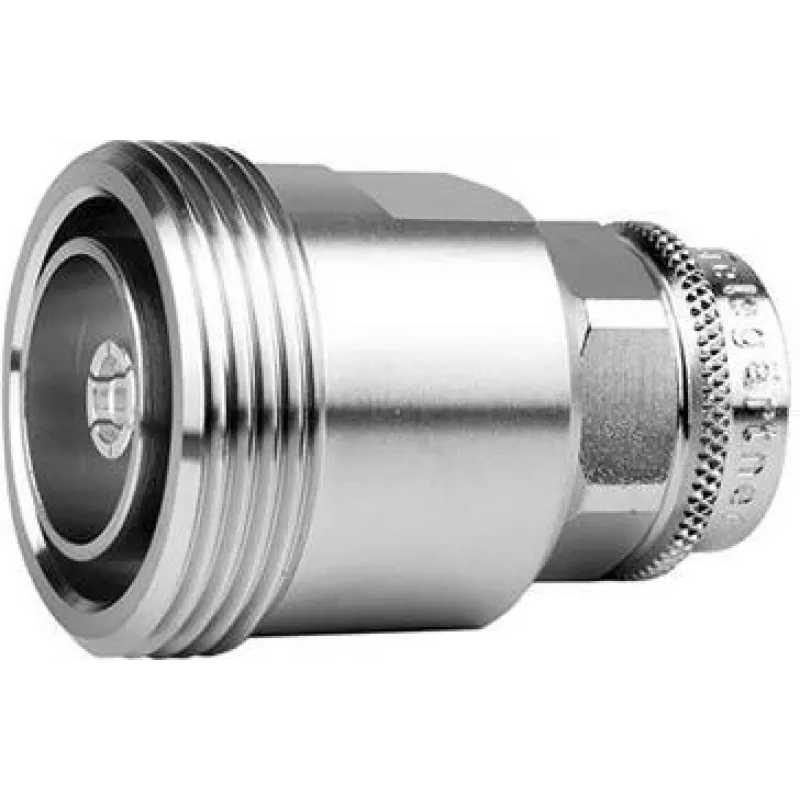

The adapter features a straight body with beryllium copper inner conductors plated with gold for superior conductivity and corrosion resistance. The outer conductors are brass with nickel plating, and the dielectric is PTFE, ensuring stable performance across a wide temperature range from -55 °C to +155 °C. It supports frequencies from DC to 7.5 GHz with low VSWR values: ≤1.05 up to 3 GHz, ≤1.10 up to 6 GHz, and ≤1.15 up to 7.5 GHz.

What stands out

• Excellent PIM performance: ≤ -160 dBc @ 2 x 20 W
• Broad frequency range: DC to 7.5 GHz
• High mating cycles: ≥ 500
• Robust construction with gold-plated inner contacts

Technical details

• Connector A: 7/16 DIN Female (Jack)
• Connector B: N Female (Jack)
• Impedance: 50 Ω
• Dielectric withstanding voltage: 2500 Veff
• Insulation resistance: ≥ 5 GΩ
• Inner conductor material: Beryllium Copper, gold-plated
• Outer conductor material: Brass, nickel-plated
• Dielectric material: PTFE
• Operating temperature: -55 °C to +155 °C
• Mating cycles: ≥ 500
• RoHS compliant

Our verdict

A precision adapter built for low-intermodulation applications, offering reliable performance in a compact, straight form factor.
