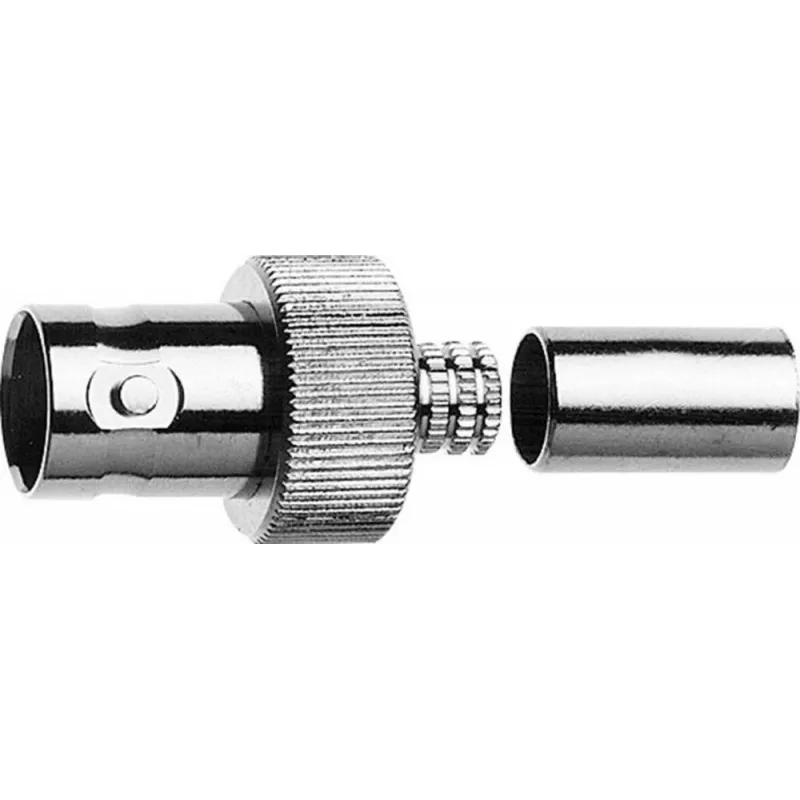

Telegärtner BNC-kabelbus crimp G30 50 Ohm voor LMR-240, 5-pack J01001A0073

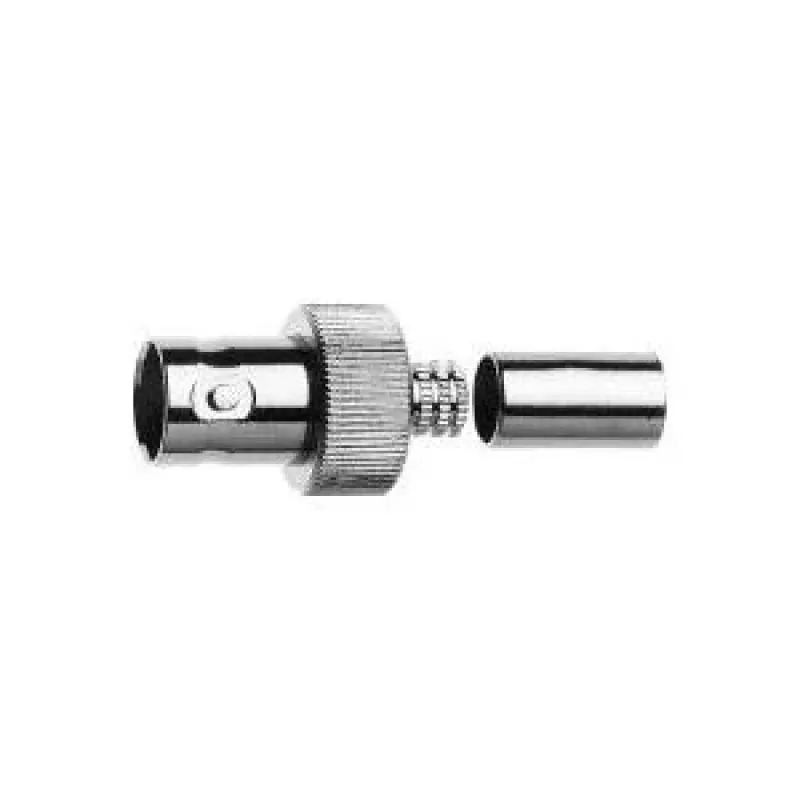

BNC cable jack with crimp termination for LMR-240 coaxial cable, offering reliable 50 Ohm RF connections up to 4 GHz. The gold-plated center contact and nickel-plated brass body ensure low contact resistance and corrosion resistance.

Advantages

Crimp/crimp termination provides a secure, vibration-resistant connection without soldering. PTFE insulator maintains stable impedance and low loss across the frequency range. Suitable for professional RF installations requiring consistent performance.

Suitable for

• RF test and measurement setups
• Antenna and broadcast systems
• Telecommunications infrastructure
• Industrial RF equipment

Key specifications

• Connector series: BNC
• Connector type: Cable jack (female)
• Impedance: 50 Ohm
• Termination style: Crimp (inner and outer conductor)
• Compatible cable: LMR-240
• Cable group: G30 (1.5/3.8)
• Frequency range: DC to 4 GHz
• Voltage rating: 500 V (peak)
• Contact plating: Gold
• Body plating: Nickel
• Body material: Brass
• Insulator material: PTFE
• Operating temperature: -40°C to +85°C
• VSWR: ≤ 1.25 @ 3 GHz
• Packaging quantity: 5 pieces

Recommendations

Use with LMR-240 or equivalent cables meeting G30 group dimensions. Ensure proper crimp tooling for reliable assembly.
