Telegärtner coaxiale adapter N-bus naar SMA-reverse-stekker J01027R0000

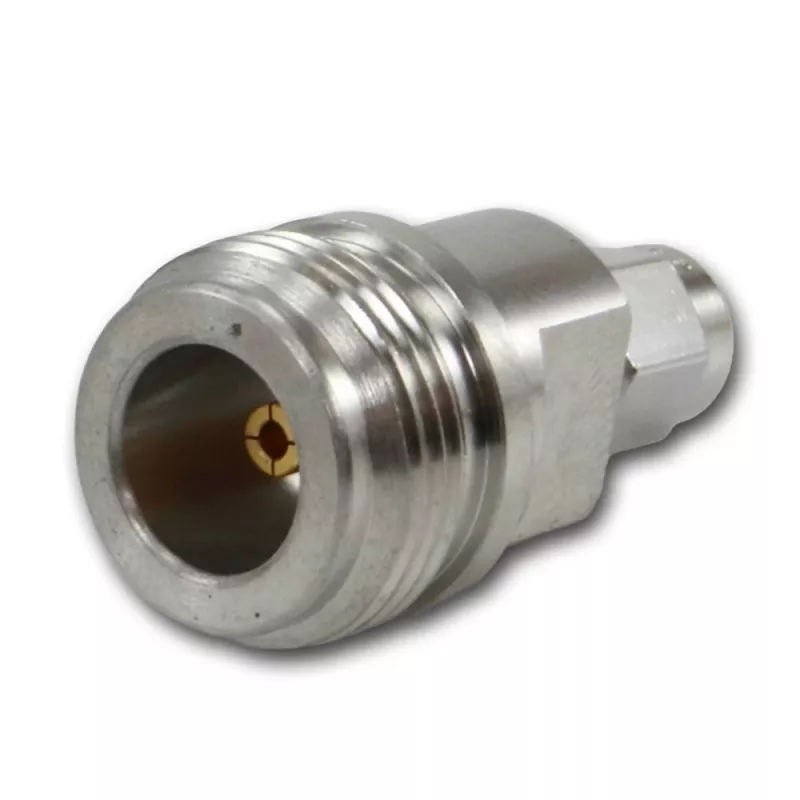

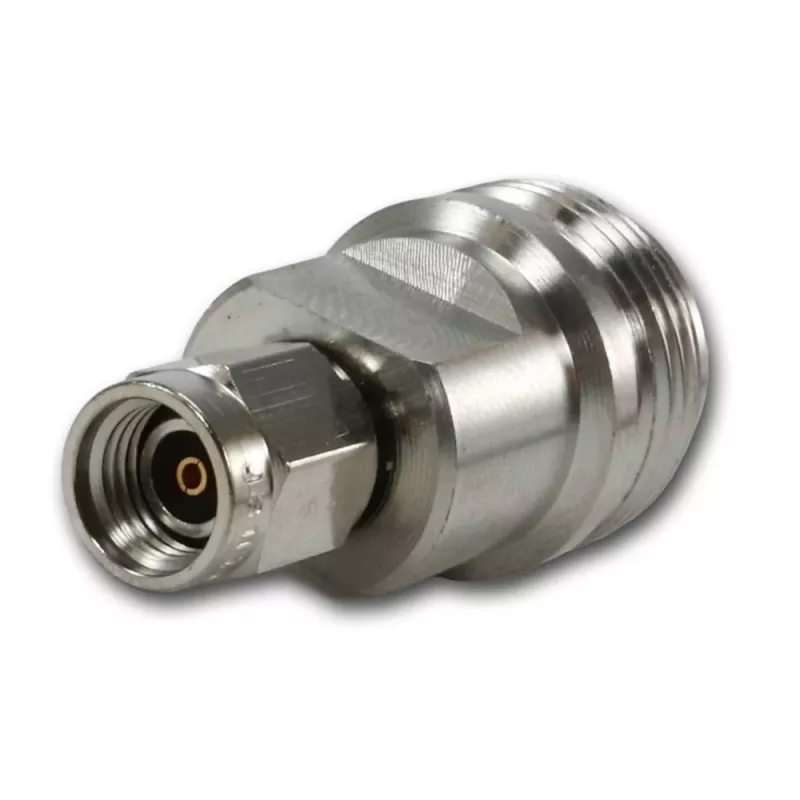

RF technicians and antenna installers use this coaxial adapter to connect an N-type female interface to a reverse-polarity SMA male plug. It is a straight in-line adapter with a 50 Ω impedance and operates from DC to 6 GHz.

Key specifications

• Connector 1: N-Female
• Connector 2: SMA-Reverse-Male
• Impedance: 50 Ω
• Frequency range: DC - 6 GHz
• VSWR: ≤ 1.25 @ 6 GHz
• Body material: Brass, nickel plated
• Contact material: Brass, gold plated
• Insulator material: PTFE
• Operating temperature: -40 °C to +85 °C
• Mating cycles: ≥ 500

Why choose it

Low insertion loss and stable impedance make it suitable for test setups and antenna systems. The reverse-polarity SMA side prevents accidental connection to standard SMA equipment, while the nickel-plated brass body withstands regular handling.

Ideal use cases

• RF test benches and measurement setups
• Wireless communication antenna connections
• Adapting between N-type and RP-SMA cables

Good to know

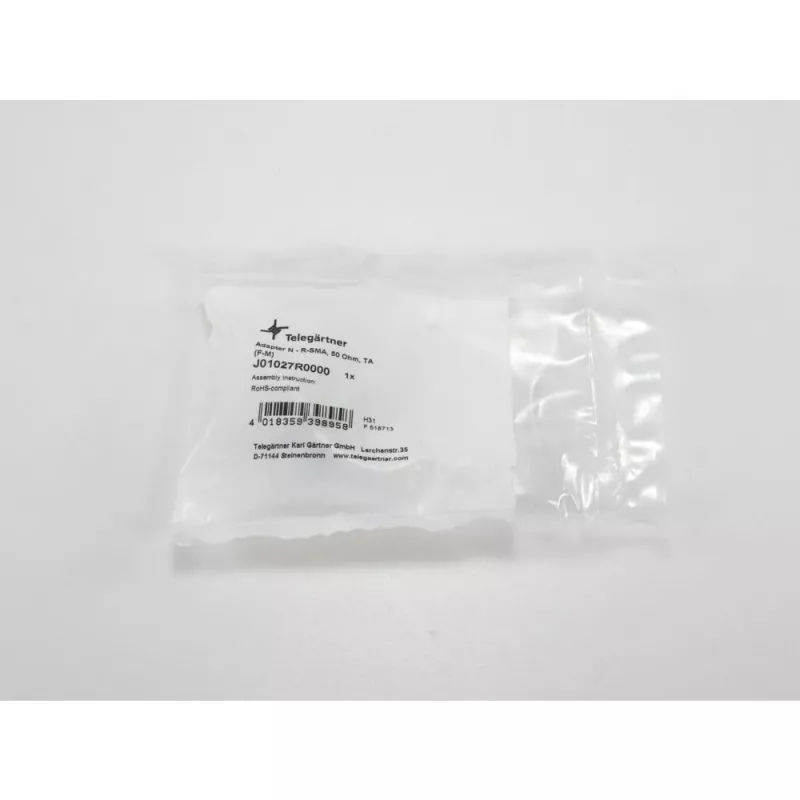

The adapter is RoHS compliant. It is sold as a single piece.
