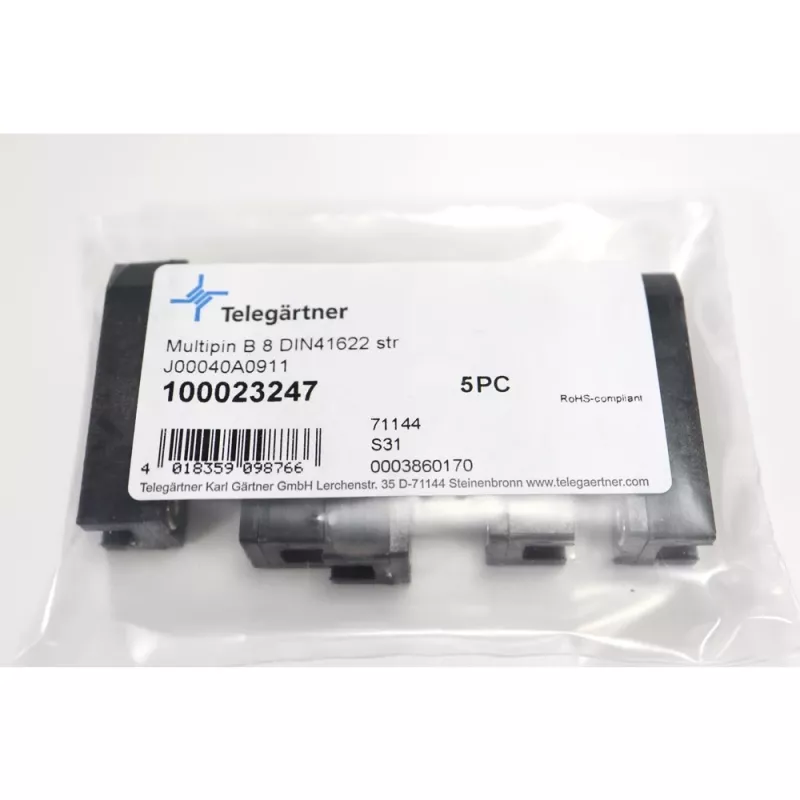

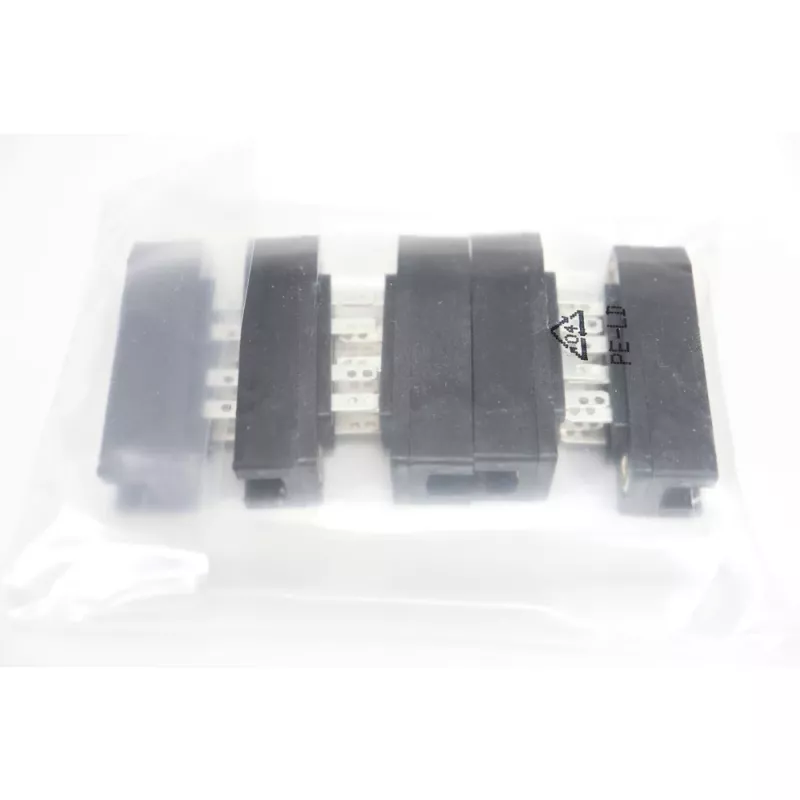

Telegärtner DIN 41622 type B 8 asymmetrische 8-polige PCB-bus, soldeeraansluiting J00040A0911

Featuring an asymmetric contact arrangement per DIN 41622, this 8-pin socket connector from Telegärtner is engineered for precision PCB mounting in demanding electronic applications. The Type B 8 female connector offers a compact footprint of 47 x 38 mm with a height of 15 mm, making it suitable for space-constrained designs.

Overview

This Telegärtner connector, model J00040A0911, is a rectangular socket (female) designed for direct PCB mounting. It complies with DIN 41622 and provides 8 solder-terminated poles in an asymmetric configuration, ensuring correct mating and preventing misinsertion. The connector's dimensions include specific mounting details: a=47 mm, b=38 mm, c=15 mm, d=14 mm, and e=32 mm.

What stands out

• Asymmetric contact arrangement prevents incorrect mating
• 8-pole solder termination for reliable, permanent connections
• Compact PCB mount design with precise dimensional specifications
• Complies with DIN 41622 standard for industrial connectors

Technical details

• Connector type: Rectangular socket (female)
• Standard: DIN 41622
• Number of poles: 8
• Contact arrangement: Asymmetric
• Termination: Solder
• Series: Type B 8
• Mounting type: PCB mount
• Dimensions: 47 mm (length) x 38 mm (width) x 15 mm (height)
• Additional dimensions: d=14 mm, e=32 mm
• Manufacturer: Telegärtner
• MPN: J00040A0911

Our verdict

A specialized DIN 41622 socket for PCB integration, offering reliable solder connections and a foolproof asymmetric design. Ideal for industrial electronics requiring standardized, durable connectors.
