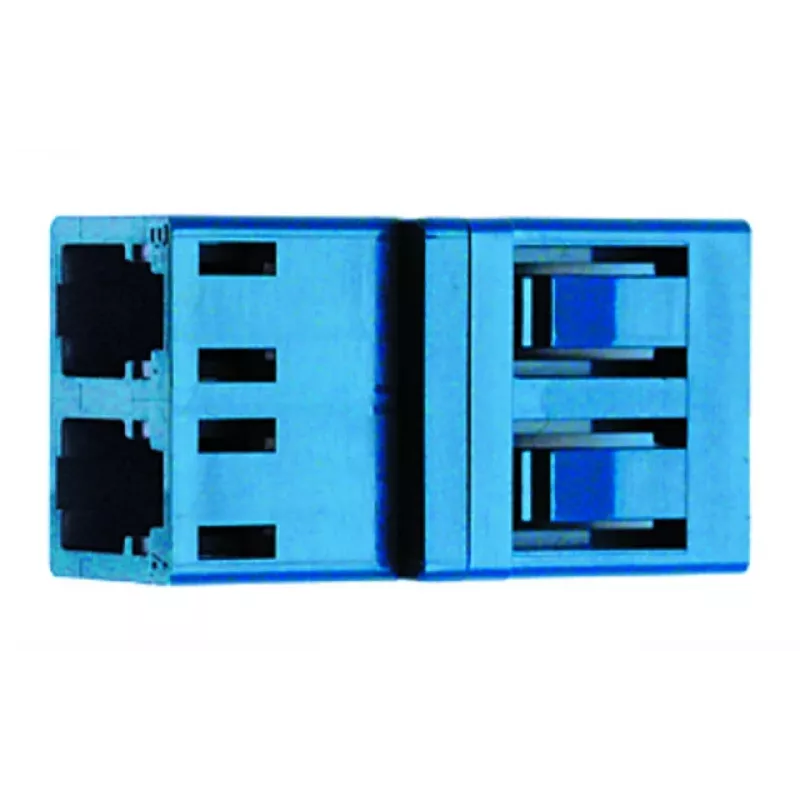

Telegärtner J08071A0017 LC duplex multimode OM3/OM4 glasvezelconnector, blauw, keramische ferrule

The Telegärtner J08071A0017 is a high-performance LC Duplex fiber optic connector designed for multimode OM3/OM4 applications. Featuring a zirconia ceramic ferrule and thermoplastic housing, this connector ensures reliable, low-loss connections in data centers, LAN, SAN, and telecommunications networks. Its blue color coding facilitates easy identification in high-density environments.

Advantages

Exceptional insertion loss (≤0.2 dB) and return loss (≥30 dB) ensure optimal signal integrity. The connector meets IEC 61753-1 Grade B/2 standards and is built for 500 mating cycles, providing long-term durability. The compact LC design supports high-density patching, saving valuable rack space.

Suitable for

• Data center cabling infrastructure
• Local Area Networks (LAN)
• Storage Area Networks (SAN)
• Telecommunications equipment
• Fiber-to-the-desk applications

Key specifications

• Connector Type: LC Duplex
• Fiber Mode: Multimode (OM3/OM4)
• Polishing: PC/UPC
• Ferrule Material: Zirconia Ceramic
• Housing Material: Thermoplastic (PBT)
• Insertion Loss: ≤0.2 dB
• Return Loss: ≥30 dB
• Operating Temperature: -40°C to +85°C
• Durability: 500 mating cycles
• Standards: IEC 61754-20, TIA/EIA-604-10

Recommendations

For optimal performance, pair with Telegärtner patch cables and adapters. Ensure proper cleaning before mating to maintain low insertion loss. Suitable for use with OM3/OM4 multimode fiber.
