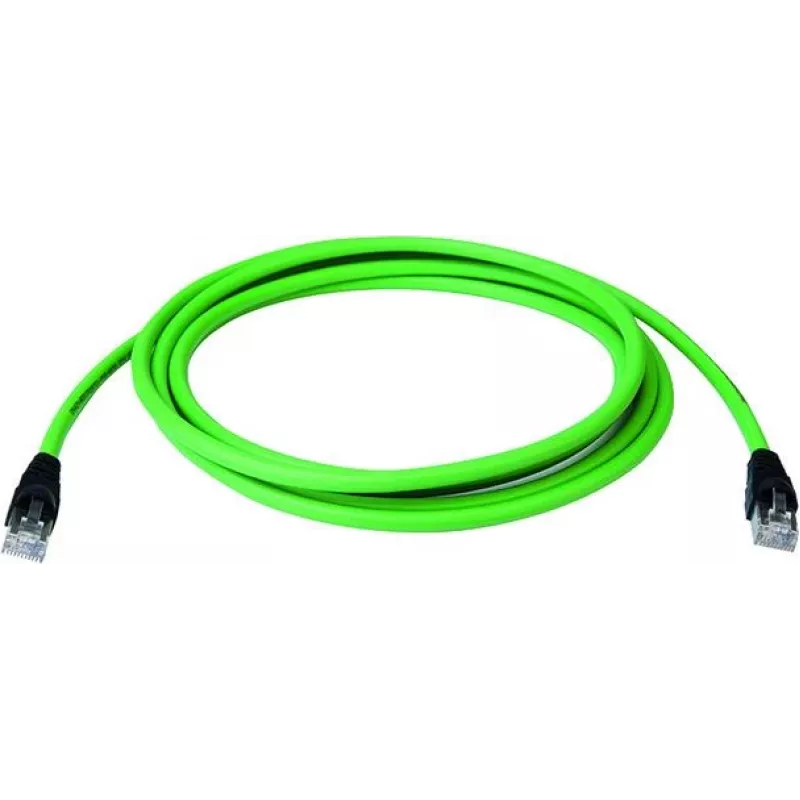

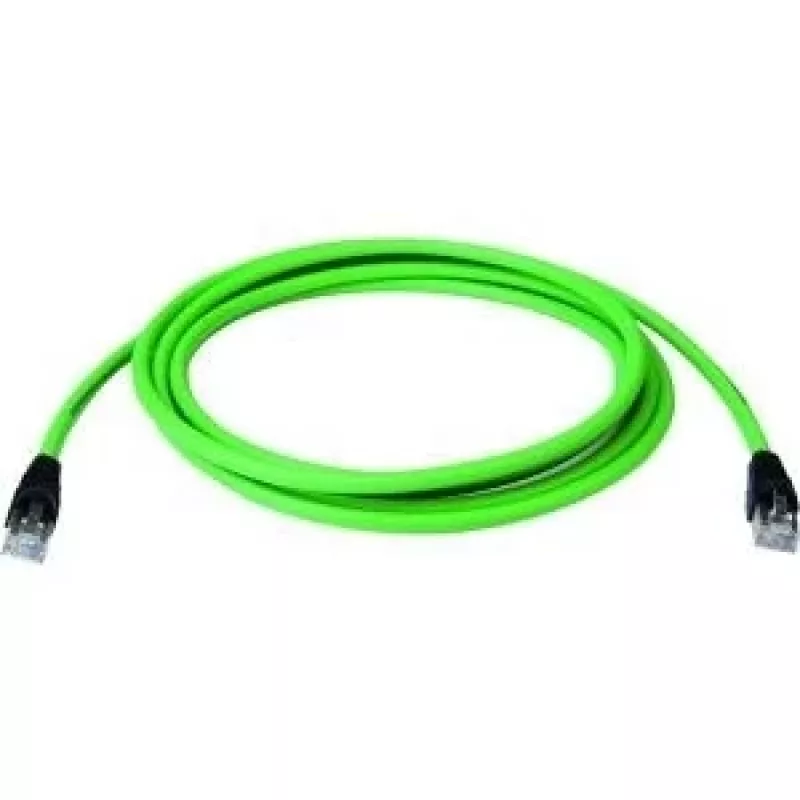

Telegärtner L80406A0006 25m Cat5 SF/UTP groene netwerkkabel

For network installers and IT technicians running reliable Ethernet connections over longer distances, the Telegärtner L80406A0006 delivers a 25-metre Cat5 patch cable in a distinctive green jacket. It links a patch panel to a switch, connects a workstation across a room, or extends a VoIP phone line without signal loss.

Key specifications

• Length: 25 m
• Cable standard: Cat5
• Shielding: SF/UTP (Screened Foiled / Unshielded Twisted Pair)
• Connector type: RJ45 male to RJ45 male
• Colour: Green
• Data transfer rate: up to 100 Mbps
• Frequency bandwidth: up to 100 MHz
• Conductor material: Copper (Cu)
• Conductor gauge: 24 AWG
• Number of pairs: 4 twisted pairs
• Jacket material: PVC
• Impedance: 100 Ohm
• Wiring standard: TIA/EIA-568-B.2
• Operating temperature range: -20°C to 60°C
• Halogen free: No

Why choose it

The SF/UTP shielding combines an overall braided screen with foil around each pair, reducing electromagnetic interference in electrically noisy environments. The green jacket makes cable identification easy in crowded racks or cable trays.

Ideal use cases

• Connecting network devices across a server room or office
• Extending Ethernet runs for VoIP phones or access points
• Colour-coding network segments for easier management

Good to know

The cable meets Cat5 specifications and supports Fast Ethernet speeds. It is not halogen-free, so it is intended for general indoor use rather than plenum spaces.
