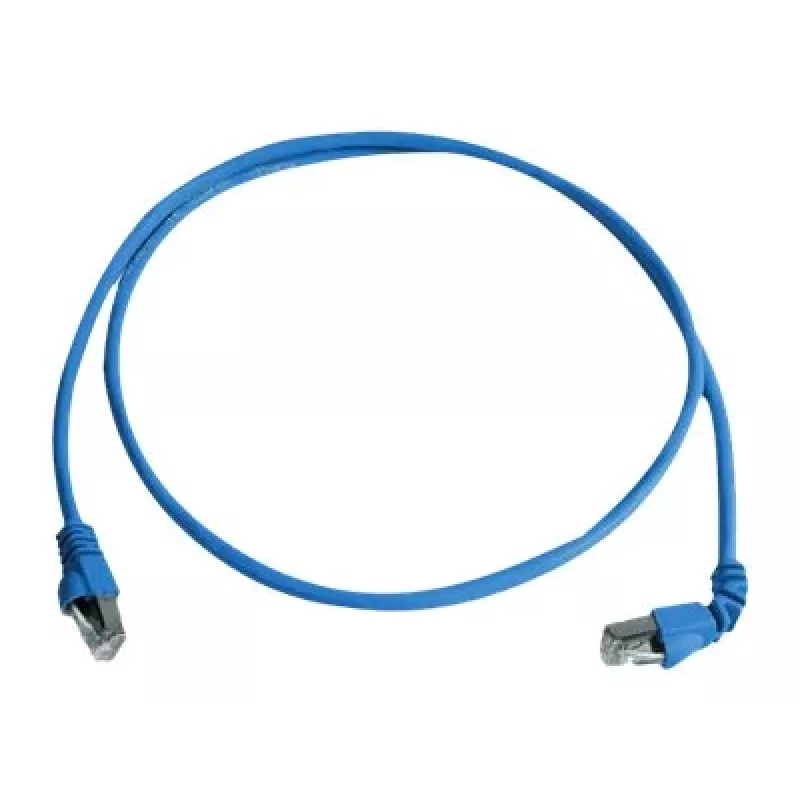

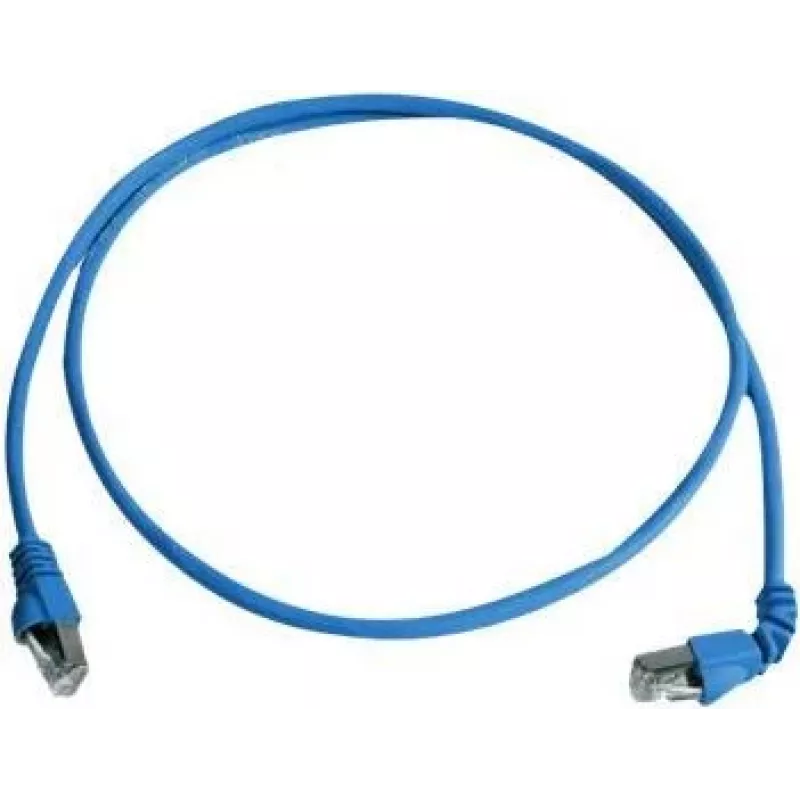

Telegärtner S/FTP Cat 6A-patchkabel, PiMF, 1,0 m, blauw, één haakse RJ45, LSZH, 10 Gbps L00000A0198

This Telegärtner patch cable stands out with its one 90° angled RJ45 connector, allowing a clean, low-profile connection in tight spaces behind desks or patch panels. The S/FTP shielding with PiMF (pairs in metal foil) ensures reliable 10 Gigabit/s performance over Cat 6A, while the halogen-free LSZH jacket makes it suitable for environments where low smoke and zero halogen are required.

Highlights

• Cat 6A (Class EA) performance up to 500 MHz
• S/FTP shielding with PiMF for superior crosstalk protection
• One straight and one 90° angled RJ45 connector, gold-plated
• Halogen-free LSZH jacket, blue colour
• Supports 10 Gigabit/s Ethernet, PoE, and PoE+

In daily use

The angled connector reduces strain on the cable and allows flush mounting in confined areas, while the stranded copper conductors (AWG 26/7) provide flexibility for frequent patching. The 1.0 m length is ideal for short connections in racks or between devices.

Full specifications

• Cable type: Patch cable, S/FTP (PiMF)
• Category: Cat 6A (Class EA)
• Data transfer rate: 10 Gbps
• Bandwidth: 500 MHz
• Length: 1.0 m
• Connector 1: RJ45 male, straight
• Connector 2: RJ45 male, angled 90°
• Jacket material: LSZH (halogen-free)
• Colour: Blue
• Conductor: Copper, AWG 26/7 stranded
• Wiring standard: TIA/EIA-568B
• Impedance: 100 Ohm
• PoE support: PoE, PoE+
• Operating temperature: -20°C to +60°C
• Flammability: IEC 60332-1-2
• Compliance: RoHS, REACH

Final note

Engineered for high-density installations where space is limited and performance cannot be compromised.
