TELEGÄRTNER SMA-bus crimp-inbouwconnector voor RG-316/U, 50 Ohm, goudcontact, 5-pack (J01151A0671)

Operating up to 6 GHz with a VSWR of ≤1.2, this SMA jack delivers reliable RF performance for demanding applications.

Overview

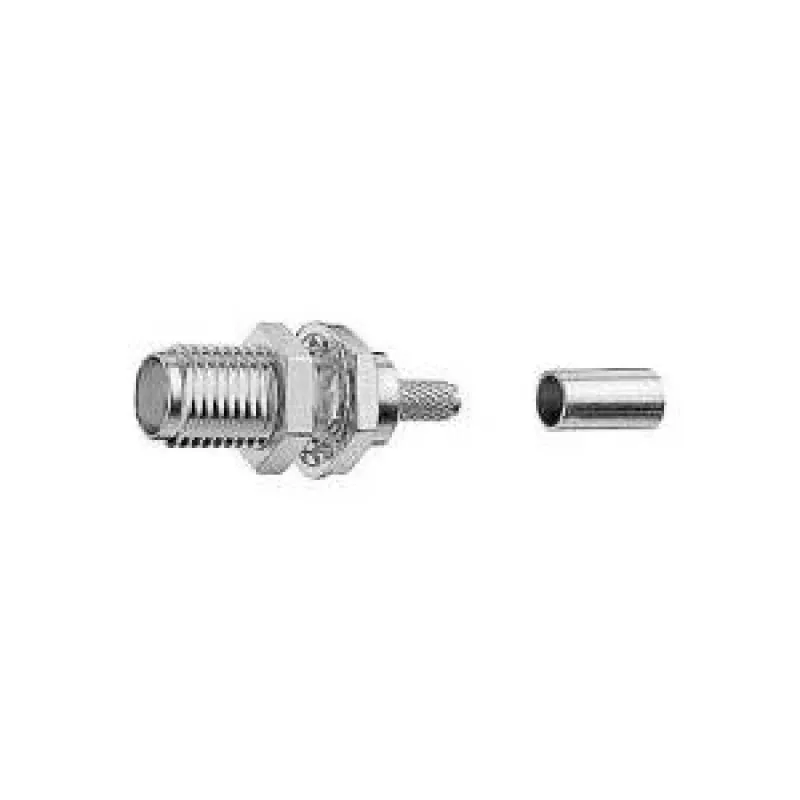

The TELEGÄRTNER J01151A0671 is a precision SMA jack (female) connector designed for crimp termination on RG-316/U and compatible cables (cable group G07). It features a gold-plated center contact, nickel-plated brass body, and PTFE insulator, ensuring excellent conductivity and durability. The connector is suitable for bulkhead or panel mounting, making it ideal for RF assemblies, test equipment, and communication systems. This pack contains 5 pieces.

What stands out

• Wide frequency range: DC to 6 GHz
• Low VSWR: ≤1.2 at 6 GHz
• Gold-plated beryllium copper center contact for superior signal integrity
• Bulkhead/panel mount design for secure installation
• Compatible with RG-174/U, RG-188A/U, RG-316/U, and LMR-100A cables

Technical details

• Connector series: SMA
• Connector type: Jack (female)
• Mounting type: Bulkhead / panel mount
• Termination method: Crimp
• Cable compatibility: RG-174/U, RG-188A/U, RG-316/U, LMR-100A (cable group G07)
• Impedance: 50 Ohm
• Frequency range: DC - 6 GHz
• Contact plating: Gold
• Body plating: Nickel
• Insulator material: PTFE
• Body material: Brass
• Contact material: Beryllium copper
• Dielectric withstanding voltage: 750 Veff
• Insulation resistance: ≥ 5 GΩ
• Center contact resistance: ≤ 3 mΩ
• Outer contact resistance: ≤ 2 mΩ
• Operating temperature: -65 °C to +165 °C
• Mating cycles: ≥ 500
• Pack size: 5 pieces

Our verdict

A high-quality SMA connector with excellent RF performance and robust construction, perfect for professional RF applications requiring reliable connections.
