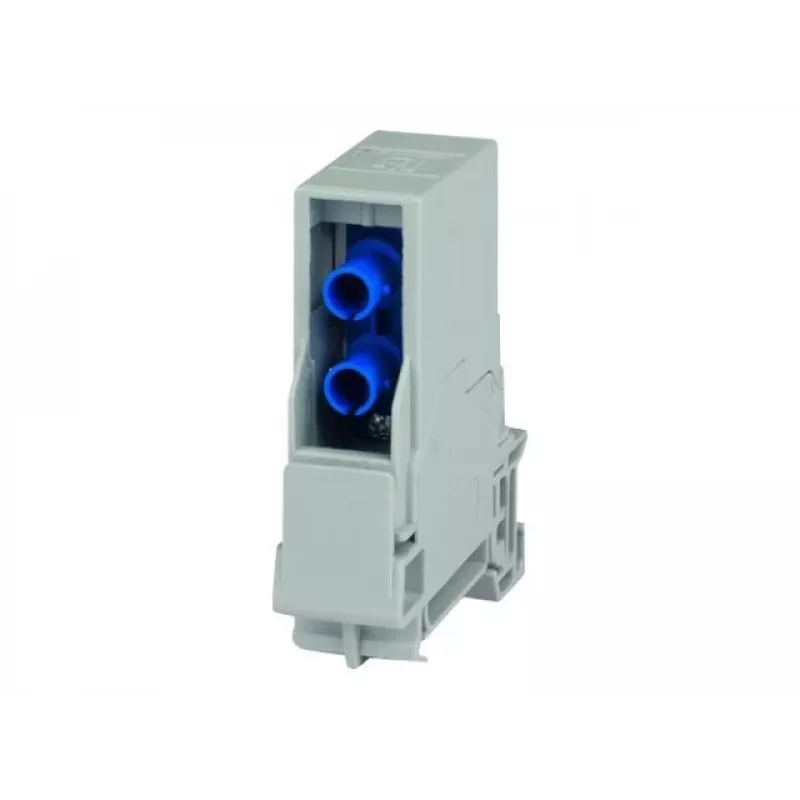

TELEGÄRTNER STX DIN-rail glasvezel-verbindingsmodule met ST- en SC-duplex-adapters, singlemode/multimode H82000A0022

The TELEGÄRTNER STX DIN Rail Connector Module provides a compact fiber optic termination point for industrial control cabinets, combining ST and SC duplex adapters in a single die-cast zinc housing. It supports both singlemode and multimode fibers, making it suitable for a wide range of network architectures.

Advantages

The module mounts directly onto a 35 mm DIN rail (EN 60715), enabling fast installation without additional brackets. Its nickel-plated zinc housing offers mechanical stability, while the zirconia ceramic adapter sleeves ensure precise fiber alignment and low insertion loss. With a total capacity of four fibers across two duplex connections, it efficiently consolidates fiber terminations in space-constrained environments.

Suitable for

• Industrial automation and control systems
• Building backbone cabling and floor distributors
• Data networks requiring mixed ST and SC connectivity
• Singlemode and multimode fiber installations

Key specifications

• Series: STX
• Mounting: 35 mm DIN rail (EN 60715)
• Adapters: ST duplex and SC duplex
• Fiber compatibility: Singlemode (OS1, OS2) and multimode (OM1, OM2, OM3, OM4, OM5)
• Total fiber capacity: 4 fibers
• Housing material: die-cast zinc, nickel-plated
• Adapter ferrule material: zirconia ceramic
• Operating temperature: -20°C to +70°C

Recommendations

For installations where both ST and SC connectors are required in a single DIN rail unit, this module offers a reliable and space-saving solution. Its robust metal housing and wide operating temperature range make it well suited for industrial environments.
