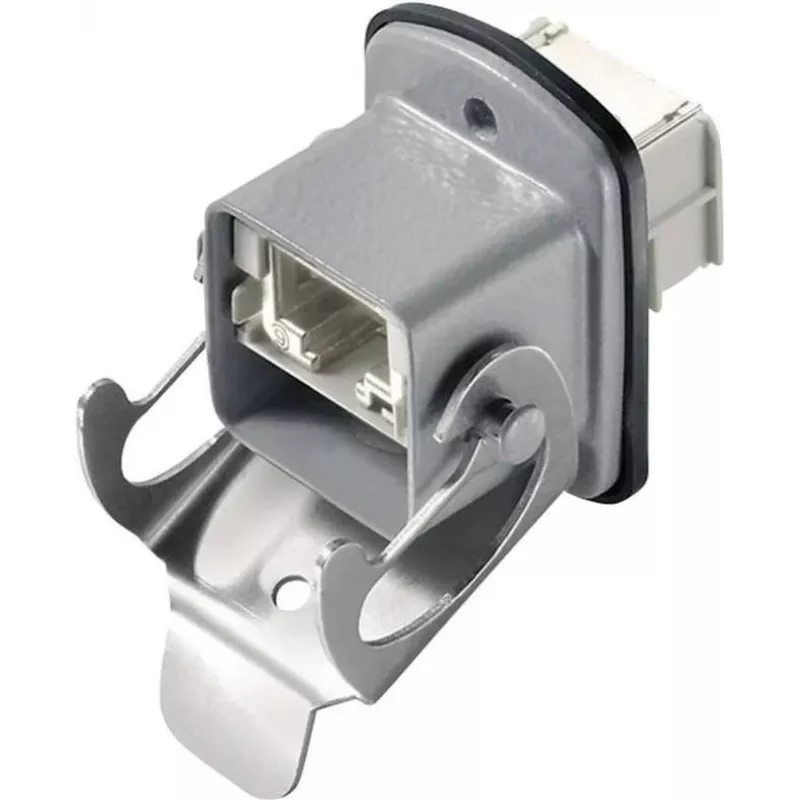

Telegärtner STX V5 RJ45 flens-set variant 5 koppeling, paneelmontage 8P8C, aluminium J80020A0007

The Telegärtner STX V5 RJ45 flange set variant 5 stands out as a robust panel-mount coupler engineered for industrial Ethernet where reliability under harsh conditions is non-negotiable. Its die-cast aluminium housing and shielded 8P8C jack-to-jack design deliver Cat.6A performance for 10 Gigabit Ethernet links.

Highlights

• Panel-mount flange set with RJ45 coupler (jack-to-jack), 8P8C
• Shielded, die-cast aluminium housing for mechanical stability
• Supports 10 Gigabit Ethernet (Cat.6A) per ISO/IEC 11801 and EN 50173-1
• Operating temperature range -40°C to +70°C for extreme environments
• High mating durability: ≥ 750 cycles

In daily use

This flange set is intended for fixed installation in control cabinets, machine housings or wall outlets. The coupler provides a secure connection point for RJ45 patch cables, while the aluminium flange withstands vibration and impact. Its shielded design maintains signal integrity in electrically noisy industrial settings.

Full specifications

• Connector type: RJ45
• Connector gender: Coupler (jack-to-jack)
• Mounting type: Panel mount / Flange mount
• Number of positions/contacts: 8P8C
• Performance category: Cat.6A (ISO/IEC 11801, EN 50173-1)
• Data rate support: 10 Gigabit Ethernet
• Shielding: Shielded
• Housing material: Die-cast aluminium
• Operating temperature: -40°C to +70°C
• Mating cycles: ≥ 750
• Standard compliance: IEC 60603-7-51
• Flammability rating: UL94 V-0 (plastic components)
• Colour: Metallic (aluminium)
• Application: Industrial Ethernet, harsh environments
• Variant: Variant 5

Final note

Telegärtner's STX V5 series is built for long-term deployment in demanding automation and infrastructure projects, where a reliable, field-proven connection point is essential.
